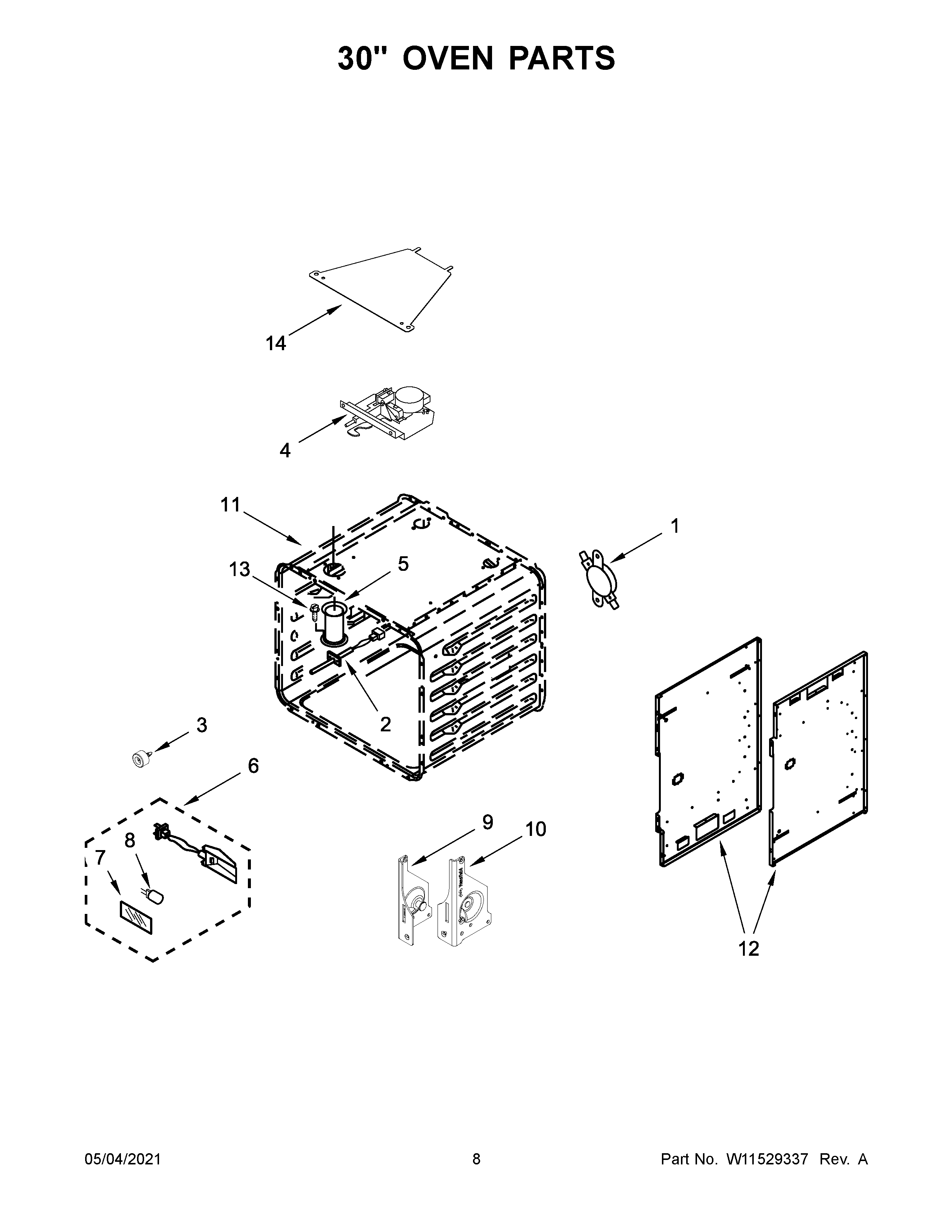

JDRP848HL01 05 – 30″ OVEN PARTS

Products

PositionProduct
NIINSULATION, BACK (30 IN)
NIINSULATION, WRAP (30 IN)
NIWP3400968 Whirlpool Nut
NICABINET (NOT A SERVICEABLE PART)
1WP4449751 Whirlpool Range Oven Thermostat Fix
2W10859573 Whirlpool Range Oven Temperature Sensor
3WPW10351278 Whirlpool Bumper
4W11029221 Whirlpool Door Latch
5TUBE, VENT
6W11233684 Whirlpool Oven Light Assembly
7W10169756 Whirlpool Light Lens
8BULB-LIGHT
9RECEIVER, HINGE (LEFT)
10RECEIVER, HINGE (RIGHT)
12ACHASSIS, SIDE (RIGHT)
12W11320145 Whirlpool Cabinet Panel
13SCREW
14W10160858 Whirlpool Lid Cover
