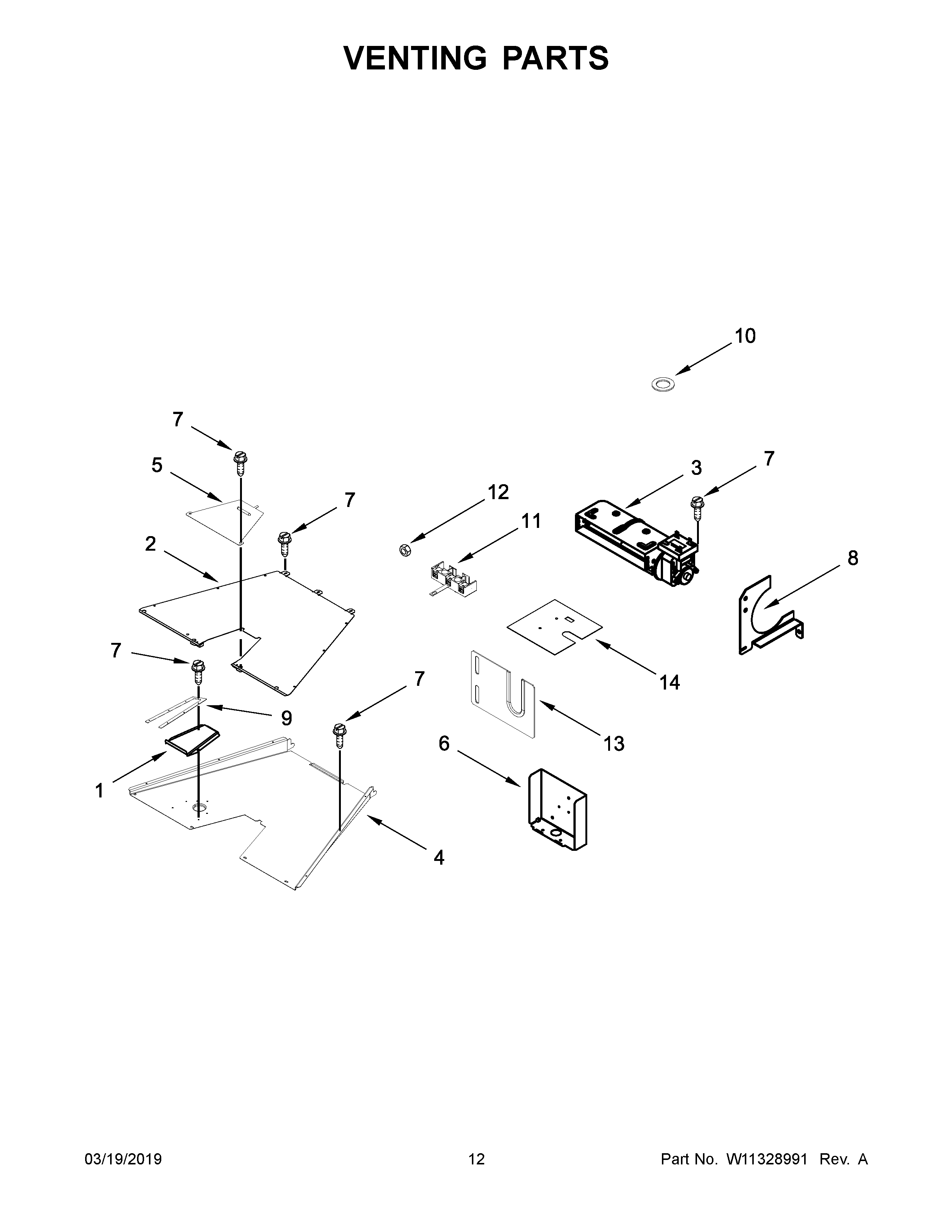

JDRP848HM00 07 – VENTING PARTSadmin2025-04-26T09:29:50+00:00JDRP848HM00 07 – VENTING PARTS
Products
| Position | Product |
|---|
| 1 | SLOPE, EXHAUST VENT (30") |
| 1A | SLOPE, EXHAUST VENT (18") |
| 2A | VENT, COOLING TOP (18") |
| 2 | VENT, COOLING TOP (30") |
| 3 | BLOWER |
| 4 | VENT, COOLING BOTTOM (30") |
| 4A | VENT, COOLING BOTTOM (18") |
| 5 | PLATE, COOLING LATCH |
| 6 | BOX, TERMINAL |
| 7 | MAY 7101P426- 60 |
| 8 | BRACKET, BLOWER MOUNT |
| 9A | MAY W10270402 |
| 9 | MAY W10270397 |
| 10 | MAY W10270396 |
| 11 | Block, Terminal |
| 12 | SCREW |
| 13 | COVER, CHANNEL |
| 14 | INSULATOR, TERMINAL BOX |
