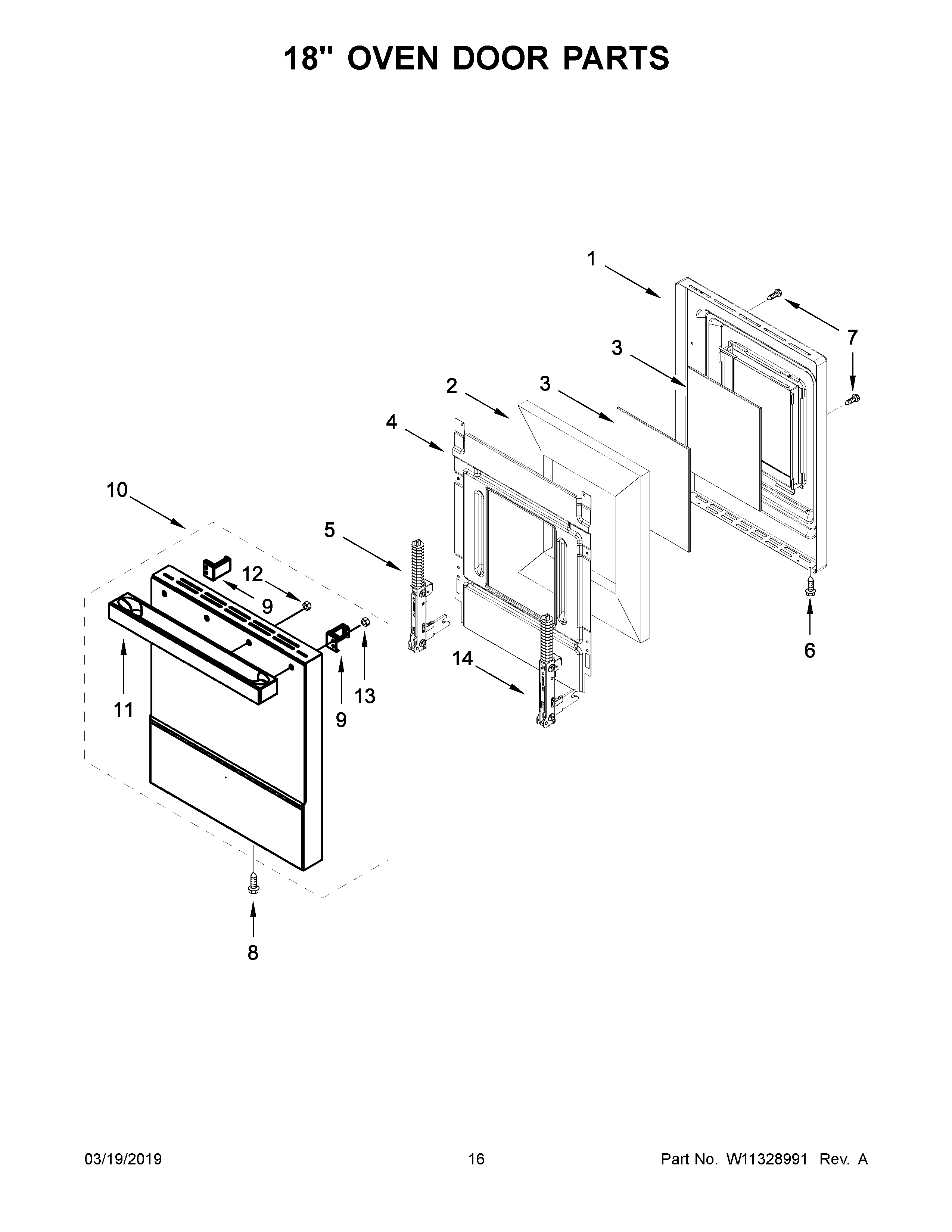

JDRP848HM00 09 – 18″ OVEN DOOR PARTS

Written by

Products

Position	Product
1	LINER, DOOR
2	INSULATION, DOOR
3	GLASS, INNER
4	RETAINER, GLASS
5	HINGE, DOOR (LEFT)
6	MAY W10607120
7	SCREW WITH WASHER
8	SCREW
9	BRACKET, HANDLE
10	ASSEMBLY, OUTER DOOR GLASS (INCLUDES HANDLE)
11	HANDLE, DOOR
12	NUT
13	NUT
14	HINGE, DOOR (RIGHT)
