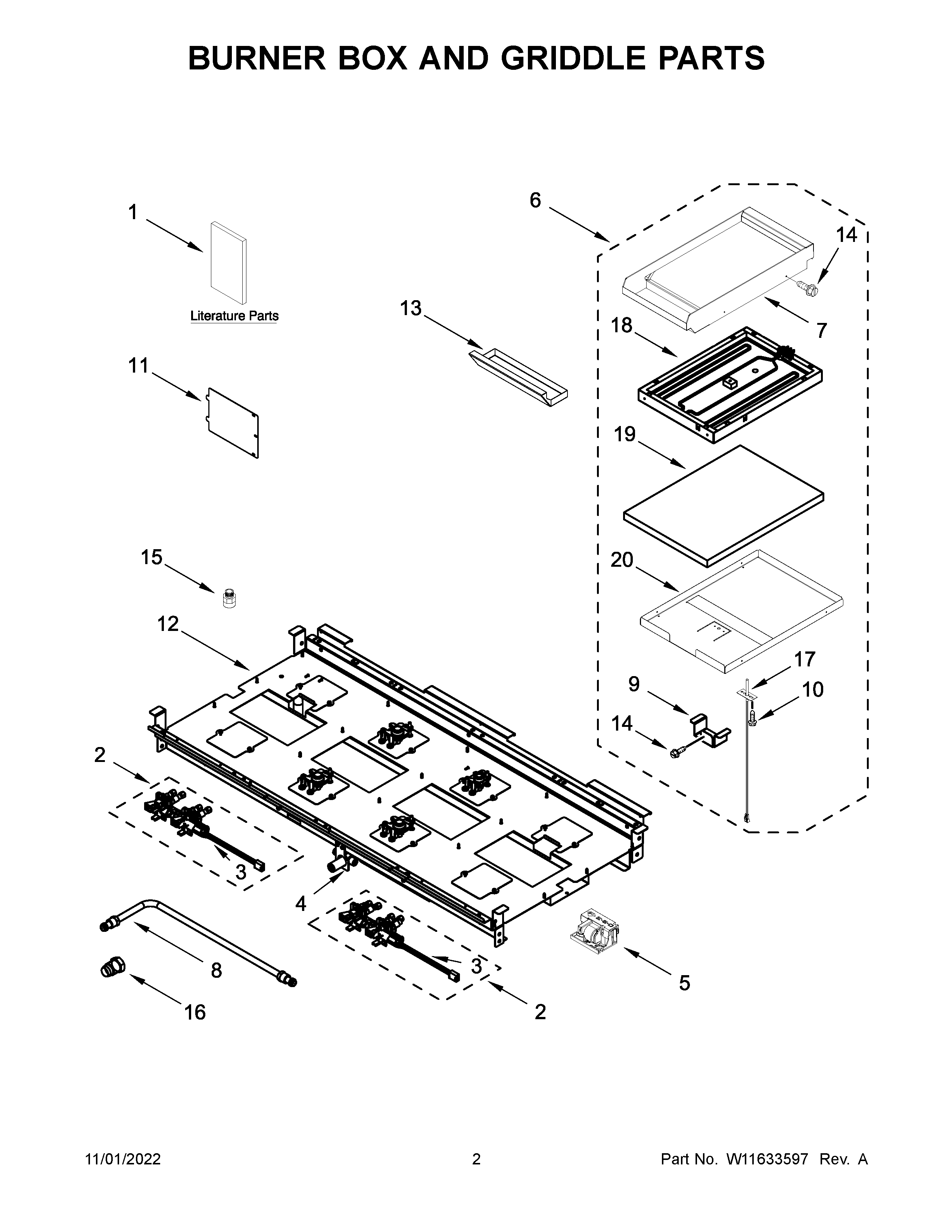

JDRP848HM01 02 – BURNER BOX AND GRIDDLE PARTS

JDRP848HM01 02 – BURNER BOX AND GRIDDLE PARTS

Written by

in

JDRP848HM01 02 – BURNER BOX AND GRIDDLE PARTS

Products

PositionProduct
NIW11544575 Whirlpool Anti-Tip Bracket
NIW11200334 Whirlpool Wire Harness
NIW11200331 Whirlpool Wire Harness
NIW11317786 Whirlpool Wire Harness
NICORD, POWER
NIW10780278 Whirlpool Wire Harness
NIW11317787 Whirlpool Wire Harness
NIW11317791 Whirlpool Wire Harness
NIWP9759877 Whirlpool Retainer
NIHARNESS, COOKTOP
NI4450800 Whirlpool Oven Screw
NI16515 Whirlpool Clip
NIW11428599 Whirlpool Conversion Kit
NICABINET (NOT A SERVICEABLE PART)
NISCREW, ANTI-TIP KIT
1CDIAGRAM, WIRING (COOKTOP)
1AINSTRUCTIONS, INSTALLATION
1GUIDE, USE AND CARE
1ESHEET, TECH
1BGUIDE, INTERNET CONNECTIVITY
1DDIAGRAM, WIRING (OVEN)
2W11320025 Whirlpool Manifold
2AW11320019 Whirlpool Manifold
3W11320016 Whirlpool Wire Harness
4W11320153 Whirlpool Mounting Bracket
5W11319687 Whirlpool Spark Module
6W11602621 Whirlpool Module
7W11602622 Whirlpool Griddle Assembly
8ATUBE, MANIFOLD SUPPLY (RIGHT CENTER)
8TUBE, MANIFOLD SUPPLY (LEFT CENTER)
9BRACKET, GRIDDLE-RTD
10W10491985 Whirlpool Screw
11W10115843 Whirlpool Access Cover
13W10276497 Whirlpool Drip Tray
14W10162096 Whirlpool Screw
154453116 Whirlpool Oven Adapter
16PLUG, SUPPLY OUTLET
17W11319618 Whirlpool Sensor
18W11319602 Whirlpool Grille Element
19INSULATION, GRIDDLE
20TRAY, GRIDDLE INSULATION
