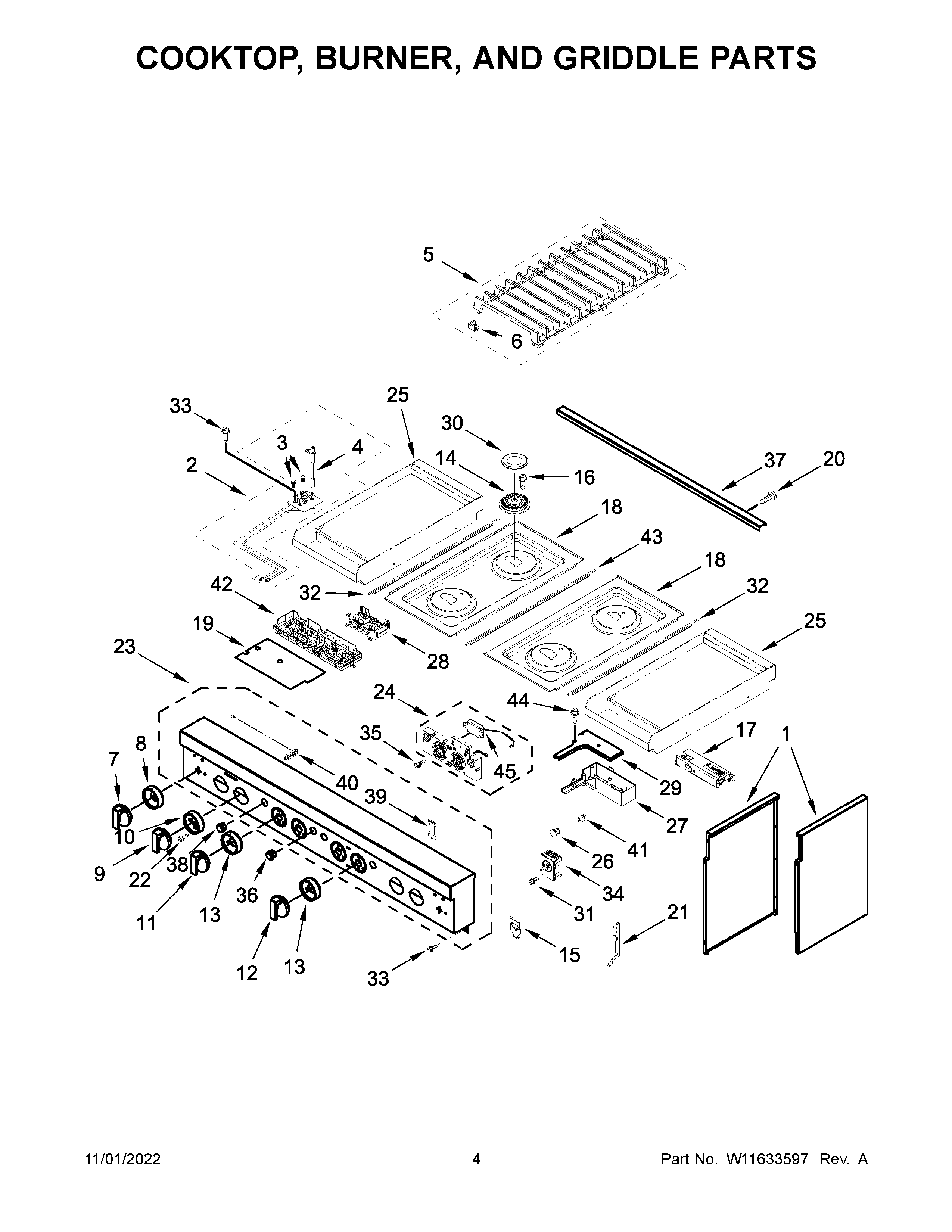

JDRP848HM01 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

JDRP848HM01 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

Written by

in

JDRP848HM01 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

Products

PositionProduct
1AW11320596 Whirlpool Side Assembly
1W11321067 Whirlpool Complete Side Assembly
2CASSEMBLY, ORIFICE HOLDER (RIGHT CENTER REAR)
2BW11319743 Whirlpool Dishwasher Orifice Holder
2AASSEMBLY, ORIFICE HOLDER (LEFT CENTER REAR)
2ASSEMBLY, ORIFICE HOLDER (LEFT CENTER FRONT)
3DW10892429 Whirlpool Orifice Spud
3CW11661909 Whirlpool Range Orifice Spud
3BW10892440 Whirlpool Spud Orifice
3W11643164 Whirlpool Orifice Spud
3AW10892418 Whirlpool Range Orifice Spud
4AIGNITER (LEFT CENTER REAR)
4BW11238756 Whirlpool Surface Igniter
4W11573760 Whirlpool Surface Igniter
5AW11516462 Whirlpool Burner Grate
5W11516449 Whirlpool Grate Burner
6W11550692 Whirlpool Bumper
7W11317536 Whirlpool Knob Assembly
8W11317890 Whirlpool Knob Bezel
9W11317537 Whirlpool Knob
10W11317889 Whirlpool Knob Bezel
11W11317886 Whirlpool Knob
12W11317539 Whirlpool Knob
13W11317892 Whirlpool Bezel Knob
14AW11319673 Whirlpool Burner Head
14W11319683 Whirlpool Burner Head
15W11318207 Whirlpool Clip Assembly
16SCREW
17W11234290 Whirlpool Electronic Control Board
18W11316700 Whirlpool Cooktop
18AW11316701 Whirlpool Cooktop
19W11320149 Whirlpool Insulator
20SCREW
21AW10130759 Whirlpool Mounting Bracket
21W10130760 Whirlpool Bracket Mounting
22W11509770 Whirlpool Screw
23W11444458 Whirlpool Control Panel
24W11492266 Whirlpool Electronic Control Board + Core
25CABINET (NOT A SERVICEABLE PART)
26W10294500 Whirlpool Light Lens
27COVER, WIFI OUTER
28W11317945 Whirlpool Electronic Control Board + Core
29WPL W11205794
30W11328971 Whirlpool Burner Cap
31W10674068 Whirlpool Screw
32W10291193 Whirlpool Trim Top
33SCREW
34W11318834 Whirlpool Infinite Heat Switch
35WP3400814 Whirlpool Screw
36W11319196 Whirlpool Push Button
37WPL W11156418
38W11318857 Whirlpool Push Button
39WPL W10896369
40W11318855 Whirlpool Antenna
41W10116114 Whirlpool Indicator Light
42W11333174 Whirlpool Electronic Control Board + Core
43W10271524 Whirlpool Trim Top
44WPL 7101P62460
45W11123146 Whirlpool Speaker
