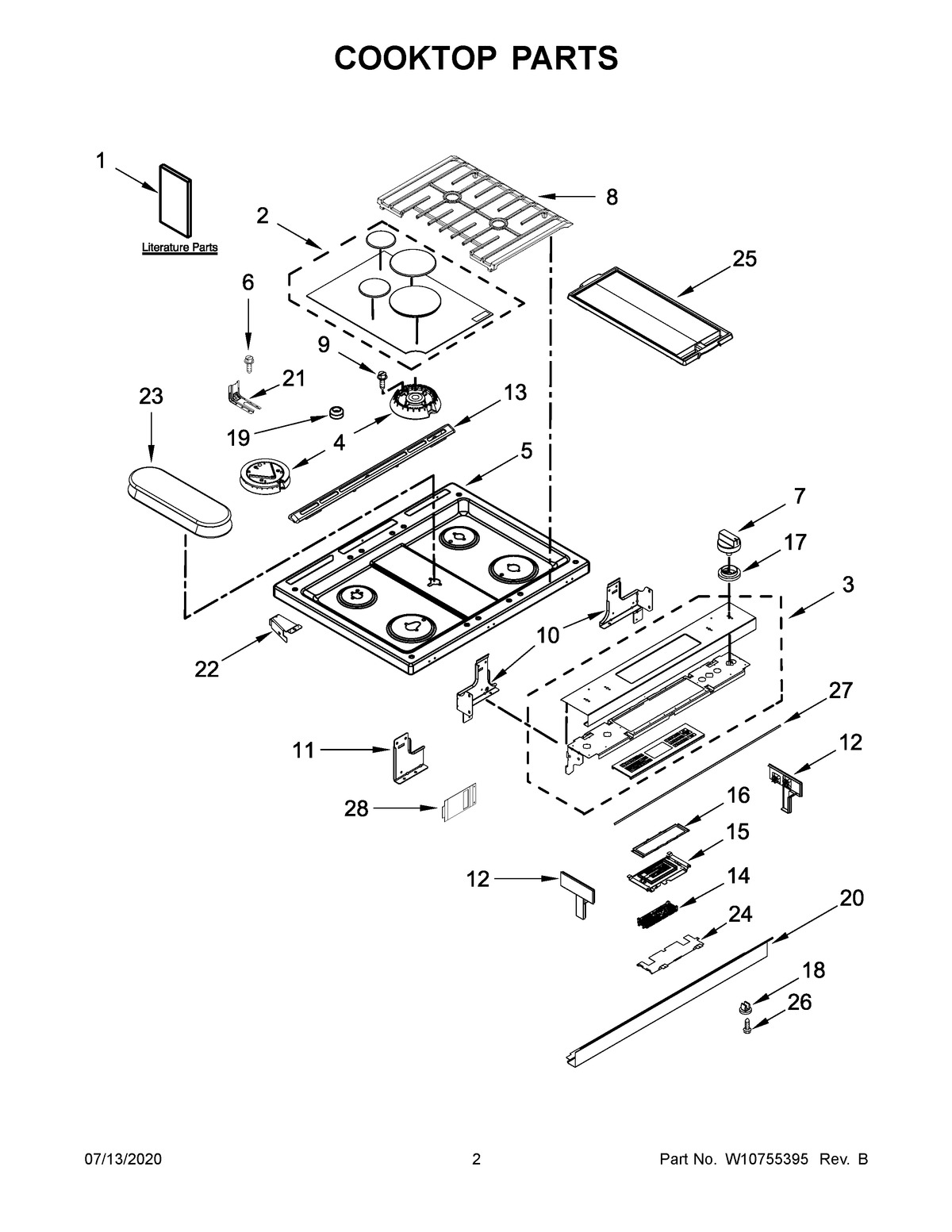

JDS1450CDP0 02 – COOKTOP PARTSadmin2025-04-26T09:30:08+00:00JDS1450CDP0 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | CLIP, HARNESS |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | MAY W10575120 |
| NI | MAY W10653092 |
| NI | MAY W10580316 |
| NI | CLIP, WIRE |
| NI | HARNESS, DISPLAY |
| NI | MAY W10580315 |
| 1 | MAY W10665259 |
| 1D | MAY W10400066 |
| 1B | SHEET, TECH |
| 1E | MAY W10400067 |
| 1A | MAY W10665266 |
| 1C | MAY W10665237 |
| 2 | KIT, BURNER CAP (BLACK) |
| 3 | CONSOLE (STAINLESS) |
| 4B | MAY W10556378 |
| 4C | MAY W10556377 |
| 4A | MAY W10556379 |
| 4 | MAY W10556380 |
| 5 | MAY W10474665 |
| 6 | SCREW, ANTI-TIP KIT |
| 7 | KNOB (STAINLESS) |
| 8 | KIT, GRATE (BLACK) |
| 9 | SCREW |
| 10A | SUPPORT, COOKTOP (RIGHT) |
| 10 | SUPPORT, COOKTOP (LEFT) |
| 11 | BRACKET, CONSOLE (CE |
| 12A | ENDCAP (STAINLESS (RIGHT)) |
| 12 | ENDCAP (STAINLESS (LEFT)) |
| 13 | VENT, TRIM TOP (STAINLESS) |
| 14 | MAY W11254171 |
| 15 | MAY W10603095 |
| 16 | BRACKET, CONTROL |
| 17 | MAY W10490679 |
| 18 | GROMMET |
| 19 | BUMPER |
| 20 | CONSOLE, LOWE |
| 21 | BRACKET, ANTI-TIP |
| 22A | BRACE, CORNER (RIGHT) |
| 22 | BRACE, CORNER (LEFT) |
| 23 | SPREADER, FLAME (FISH) |
| 24 | BRACKET, CONTROL |
| 25 | GRIDDLE |
| 26 | MAY W10516115 |
| 27 | GASKET, CONSOLE/COOKTOP |
| 28 | SHIELD, KEYPAD |
