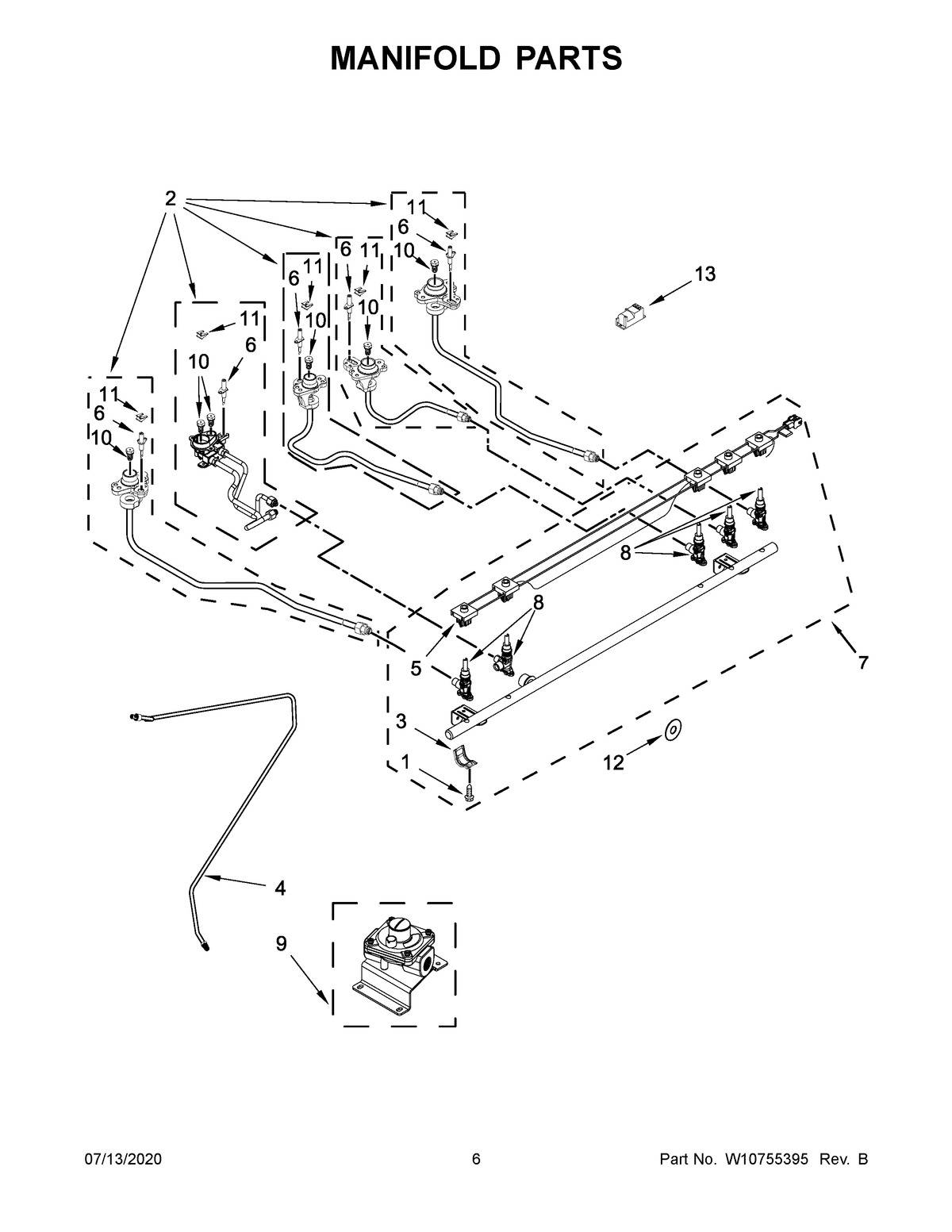

JDS1450CDP0 04 – MANIFOLD PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	KIT, LP CONVERSION
1	SCREW
2D	MAY W10552137
2A	MAY W10552132
2C	MAY W10552130
2B	MAY W10552131
2	ASSEMBLY, ORIFICE (19K)
3	BRACKET, SADDLE VALVE
4	MAY W10552945
5	MAY W10468433
6	MAY W10496874
6A	MAY W10464799
6B	ELECTRODE (RIGHT FRONT & CENTER)
6C	MAY W10496872
7	ASSEMBLY, MANIFOLD
8A	VALVE, GAS (LEFT REAR)
8	MAY W10566038
8C	VALVE, GAS (RIGHT REAR & CENTER)
8B	VALVE, GAS (RIGHT FRONT)
9	MAY W10661850
10E	ORIFICE (8K) (CENTER)
10D	ORIFICE (RIGHT REAR)
10	ORIFICE (LEFT FRONT)
10B	MAY W10515054
10A	ORIFICE (LF-LOW)
10C	ORIFICE (RIGHT FRONT)
11	CLIP, SPRING ELECTRODE
12	SEAL, SWITCH SHAFT
13	MAY W10475149
