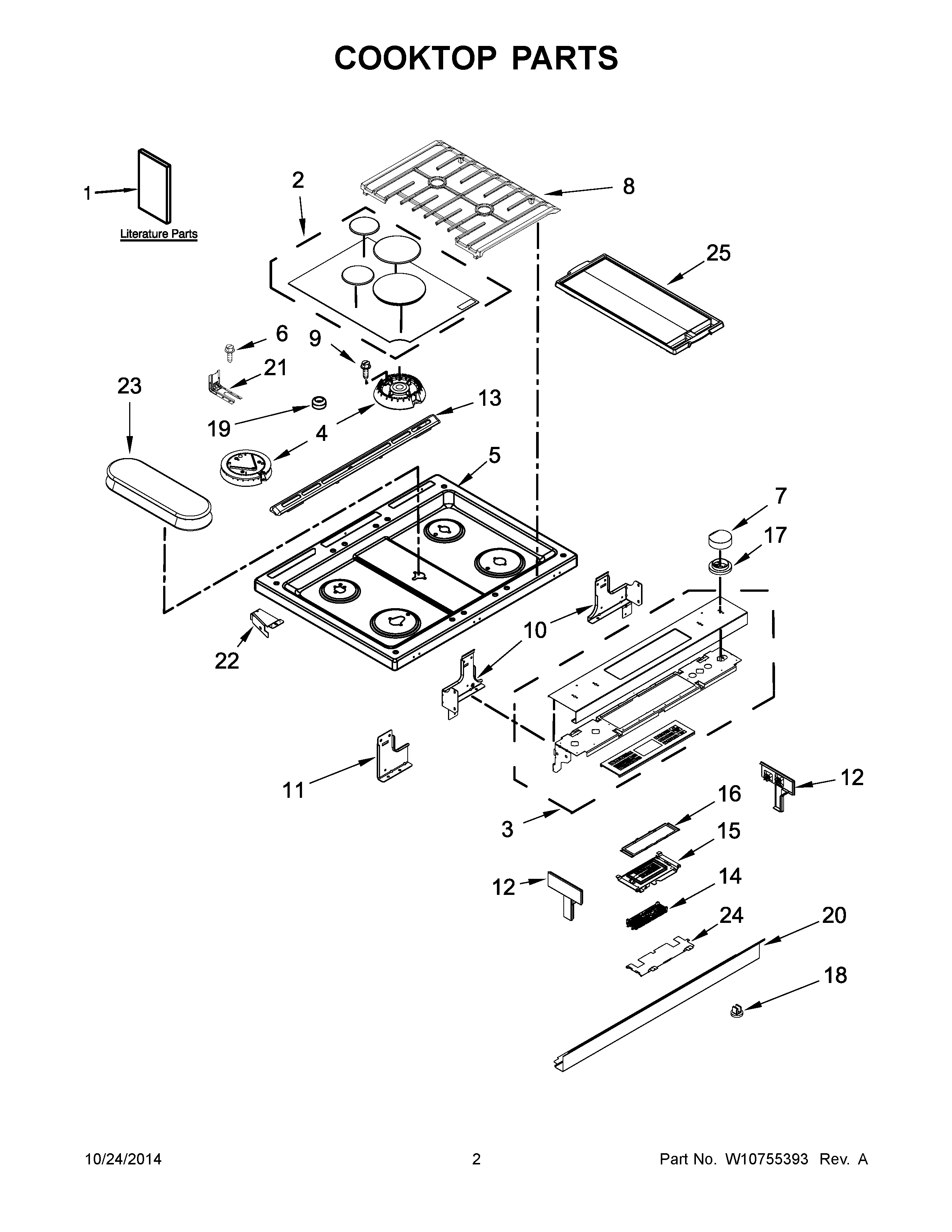

JDS1450CDS0 02 – COOKTOP PARTS

Products

PositionProduct
NICLIP, WIRE
NIMAY W10575120
NIHARNESS, DISPLAY
NILINER (NOT A SERVICEABLE PART)
NIMAY W10580315
NICLIP, HARNESS
NIMAY W10580316
1EMAY W10400066
1FMAY W10400067
1CTIPS, SAFE COOKING (ENGLISH)
1MAY W10665259
1AMAY W10665266
1DTIPS, SAFE COOKING (FRENCH)
1BSHEET, TECH
2KIT, BURNER CAP (BLACK)
3CONSOLE (STAINLESS)
4BMAY W10556378
4CMAY W10556377
4AMAY W10556379
4MAY W10556380
5MAY W10474665
6SCREW, ANTI-TIP KIT
7MAY W10505764
8KIT, GRATE (BLACK)
9SCREW
10SUPPORT, COOKTOP (LEFT)
10ASUPPORT, COOKTOP (RIGHT)
11BRACKET, CONSOLE (CE
12ENDCAP (STAINLESS (LEFT))
12AENDCAP (STAINLESS (RIGHT))
13VENT, TRIM TOP (STAINLESS)
14MAY W10558057
15MAY W10603095
16BRACKET, CONTROL
17MAY W10490679
18GROMMET
19BUMPER
20CONSOLE, LOWE
21BRACKET, ANTI-TIP
22ABRACE, CORNER (RIGHT)
22BRACE, CORNER (LEFT)
23SPREADER, FLAME (FISH)
24BRACKET, CONTROL
25GRIDDLE
