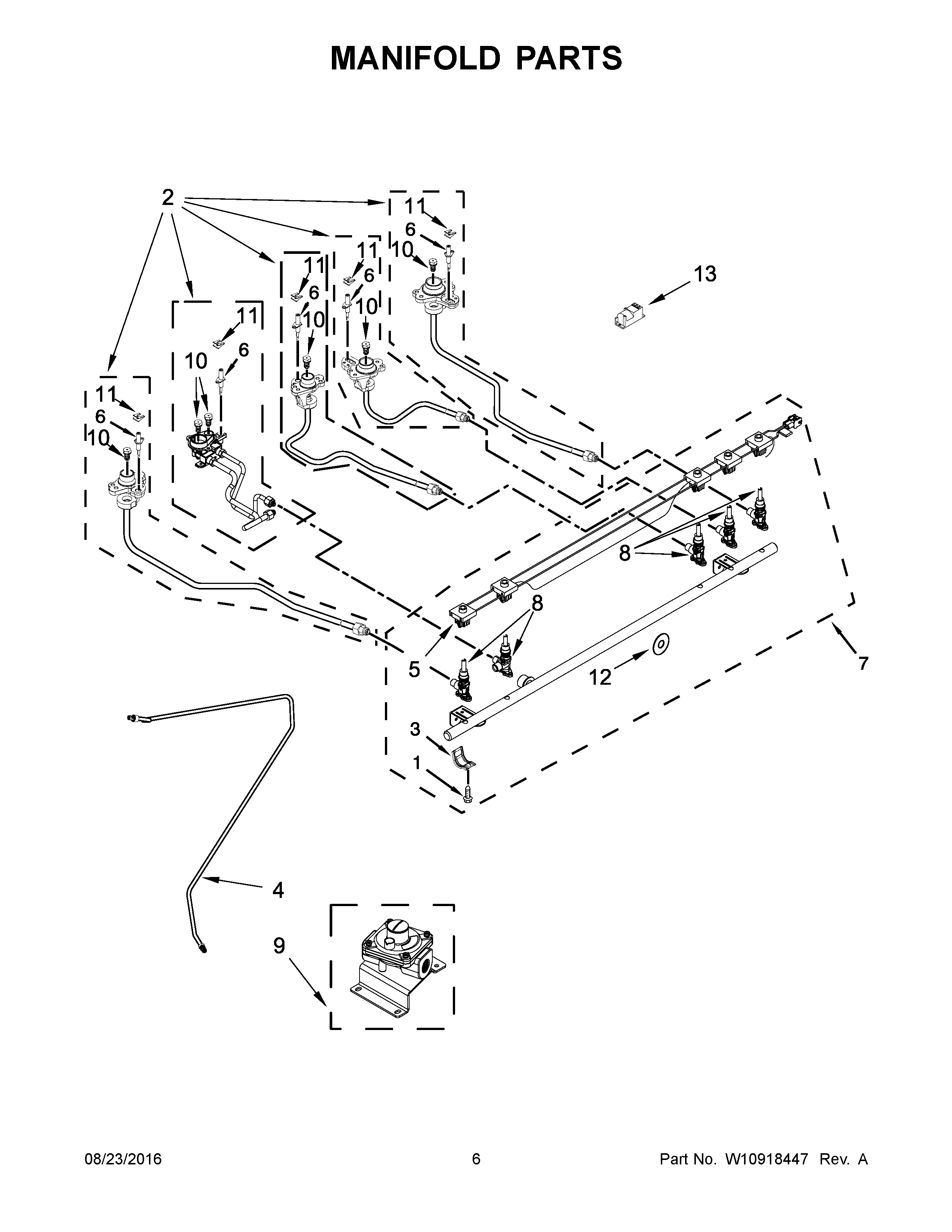

JDS1450CDS1 04 – MANIFOLD PARTS

JDS1450CDS1 04 – MANIFOLD PARTS

Written by

in

JDS1450CDS1 04 – MANIFOLD PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIKIT, LP CONVERSION
1SCREW
2DMAY W10552137
2AMAY W10552132
2CMAY W10552130
2BMAY W10552131
2ASSEMBLY, ORIFICE (19K)
3BRACKET, SADDLE VALVE
4MAY W10552945
5MAY W10468433
6MAY W10496874
6AMAY W10464799
6BELECTRODE (RIGHT FRONT & CENTER)
6CMAY W10496872
7ASSEMBLY, MANIFOLD
8AVALVE, GAS (LEFT REAR)
8MAY W10566038
8CVALVE, GAS (RIGHT REAR & CENTER)
8BVALVE, GAS (RIGHT FRONT)
9MAY W10661850
10EORIFICE (8K) (CENTER)
10DORIFICE (RIGHT REAR)
10ORIFICE (LEFT FRONT)
10BMAY W10515054
10AORIFICE (LF-LOW)
10CORIFICE (RIGHT FRONT)
11CLIP, SPRING ELECTRODE
12SEAL, SWITCH SHAFT
13MAY W10475149
