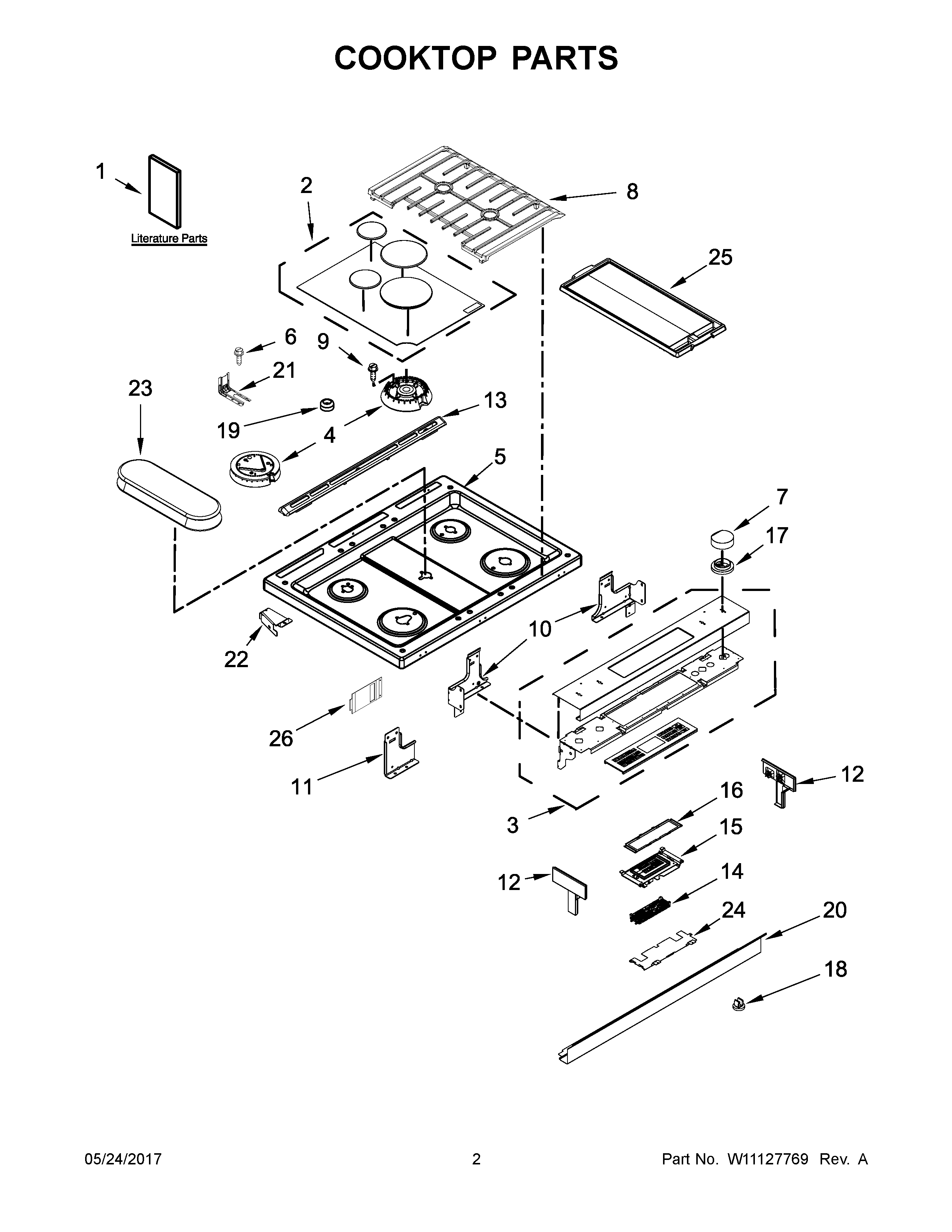

JDS1450CFS0 02 – COOKTOP PARTS

Products

PositionProduct
NICLIP, WIRE
NIMAY W10575120
NIHARNESS, DISPLAY
NIMAY W10580316
NIMAY W10580315
NICLIP, HARNESS
NILINER (NOT A SERVICEABLE PART)
1EMAY W10400066
1BSHEET, TECH
1CTIPS, SAFE COOKING (ENGLISH)
1FMAY W10400067
1MAY W10665259
1AGUIDE, USE & CARE
1DTIPS, SAFE COOKING (FRENCH)
2KIT, BURNER CAP (BLACK)
3MAY W10901070
4BMAY W10556378
4CMAY W10556377
4AMAY W10556379
4MAY W10556380
5MAY W10474665
6SCREW, ANTI-TIP KIT
7MAY W10505764
8KIT, GRATE (BLACK)
9SCREW
10ASUPPORT, COOKTOP (RIGHT)
10SUPPORT, COOKTOP (LEFT)
11BRACKET, CONSOLE (CE
12AENDCAP (STAINLESS (RIGHT))
12ENDCAP (STAINLESS (LEFT))
13VENT, TRIM TOP (STAINLESS)
14CONTROL (MRC2)
15MAY W10759324
16BRACKET, CONTROL
17MAY W10490679
18GROMMET
19BUMPER
20CONSOLE, LOWE
21BRACKET, ANTI-TIP
22ABRACE, CORNER (RIGHT)
22BRACE, CORNER (LEFT)
23SPREADER, FLAME (FISH)
24BRACKET, CONTROL
25GRIDDLE
26SHIELD, KEYPAD
