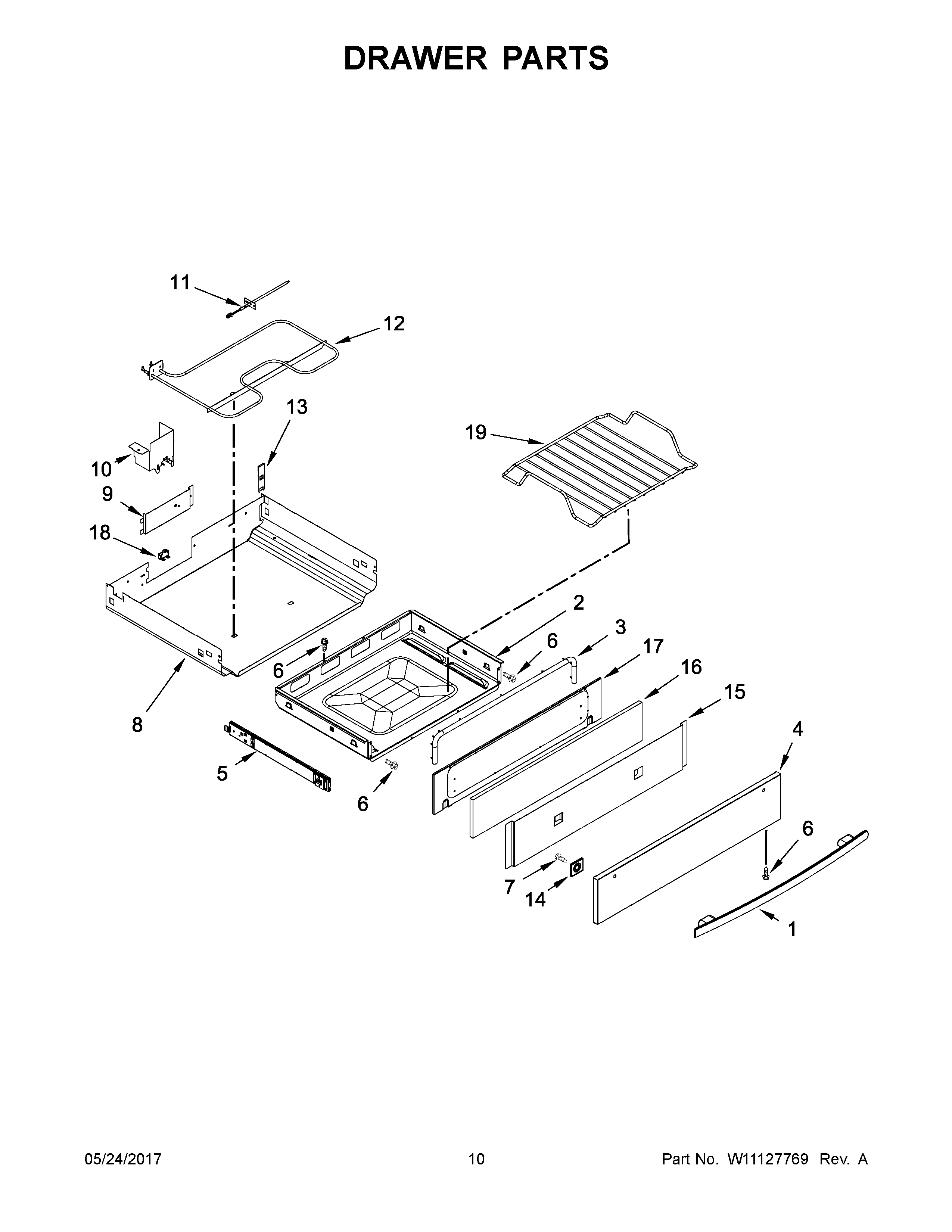

JDS1450CFS0 06 – DRAWER PARTS

Products

PositionProduct
1ASSEMBLY, DOOR HANDLE (STAINLESS)
2DRAWER, BAKE
3SEAL, DRAWER
4PANEL, DRAWER FRONT (STAINLESS)
5SLIDE, DRAWER (LEFT)
5ASLIDE, DRAWER (RIGHT)
6SCREW
7SCREW
8MAY W10634260
9COVER, GAS VALVE
10MAY W10634259
11SENSOR
12ELEMENT, BAKE
13COVER, SIDE
14MAY 3823F017-45
15INSULATION, DRAWER FRONT
16INSULATION, DRAWER
17PANEL, FRONT INNER
18FUSE, THERMAL
19RACK, BAKE DRAWER
