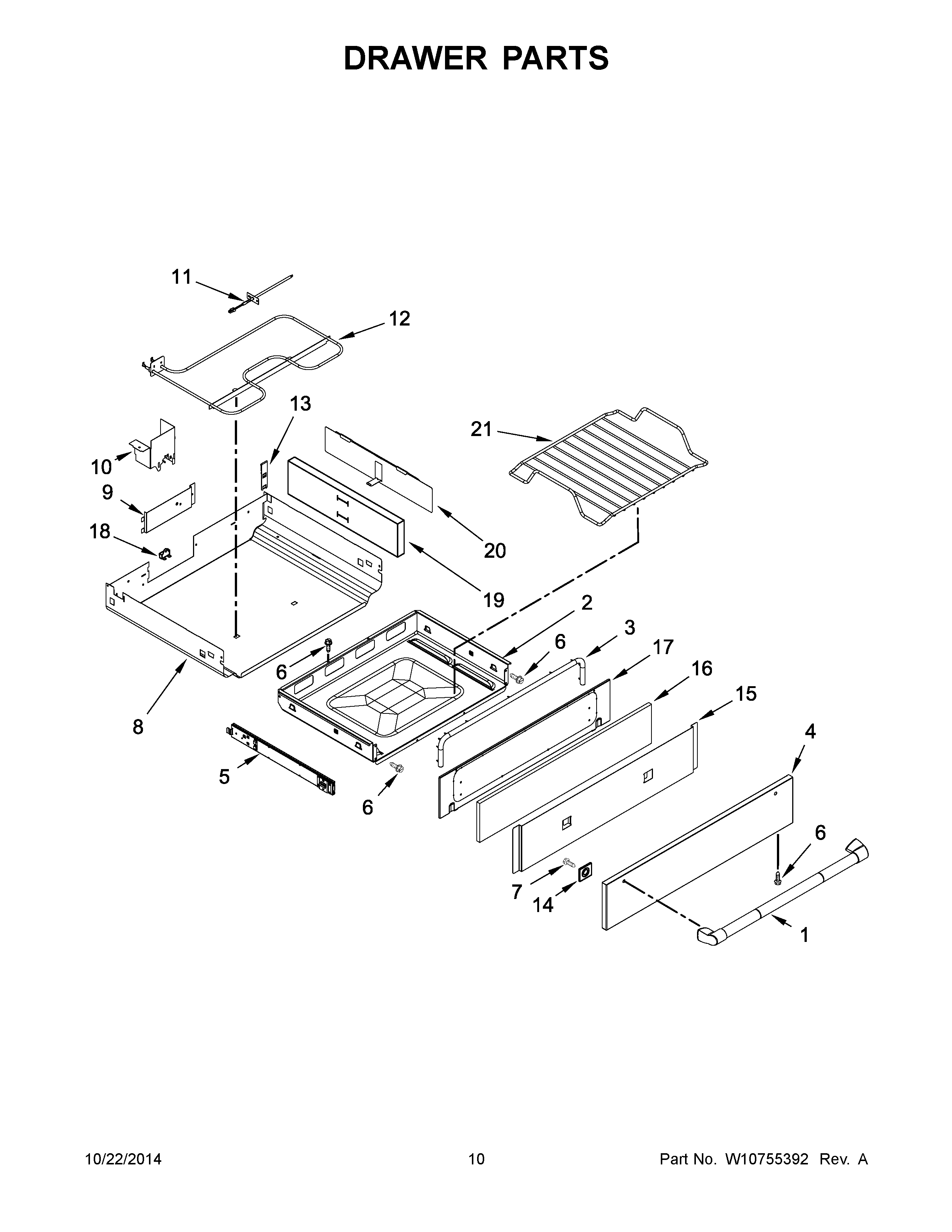

JDS1450DP0 06 – DRAWER PARTS

Products

PositionProduct
1ASSEMBLY, DOOR HANDLE (STAINLESS)
2MAY W10634257
3SEAL, DRAWER
4PANEL, DRAWER FRONT (STAINLESS)
5MAY W10541946
5AMAY W10541945
6SCREW
7SCREW
8MAY W10634260
9MAY W10551025
10MAY W10634259
11SENSOR
12ELEMENT, BAKE
13COVER, SIDE
14MAY 3823F017-45
15INSULATION, DRAWER FRONT
16INSULATION, DRAWER
17PANEL, FRONT INNER
18FUSE, THERMAL
19MAY W10550984
20MAY W10550985
21RACK, BAKE DRAWER
