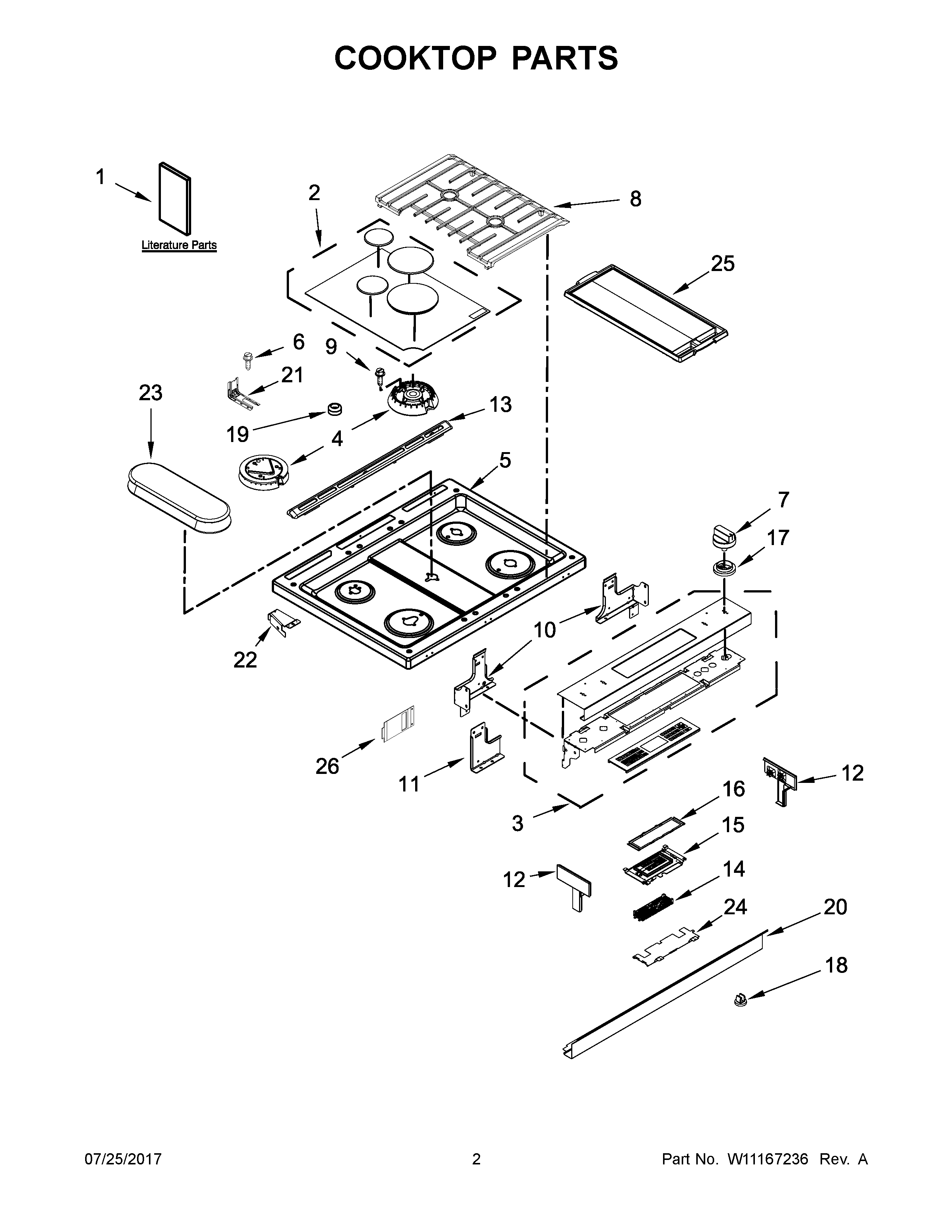

JDS1450FP0 02 – COOKTOP PARTS

JDS1450FP0 02 – COOKTOP PARTS

Written by

in

JDS1450FP0 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY W10580316
NILINER (NOT A SERVICEABLE PART)
NIMAY W10575120
NIHARNESS, DISPLAY
NICLIP, WIRE
NICLIP, HARNESS
NIMAY W10580314
1DTIPS, SAFE COOKING (ENGLISH)
1AGUIDE, USE & CARE
1MAY W10665259
1ETIPS, SAFE COOKING (FRENCH)
1CMAY W10902660
1BSHEET, TECH
1GMAY W10400067
1FMAY W10400066
2KIT, BURNER CAP (BLACK)
3MAY W10901070
4MAY W10556380
4CMAY W10556377
4BMAY W10556378
4AMAY W10556379
5MAY W10474665
6SCREW, ANTI-TIP KIT
7KNOB (STAINLESS)
8KIT, GRATE (BLACK)
9SCREW
10SUPPORT, COOKTOP (LEFT)
10ASUPPORT, COOKTOP (RIGHT)
11BRACKET, CONSOLE (CE
12AENDCAP (STAINLESS (RIGHT))
12ENDCAP (STAINLESS (LEFT))
13VENT, TRIM TOP (STAINLESS)
14CONTROL (MRC2)
15MAY W10759324
16BRACKET, CONTROL
17MAY W10490679
18GROMMET
19BUMPER
20CONSOLE, LOWE
21BRACKET, ANTI-TIP
22ABRACE, CORNER (RIGHT)
22BRACE, CORNER (LEFT)
23SPREADER, FLAME (FISH)
24BRACKET, CONTROL
25GRIDDLE
26SHIELD, KEYPAD
