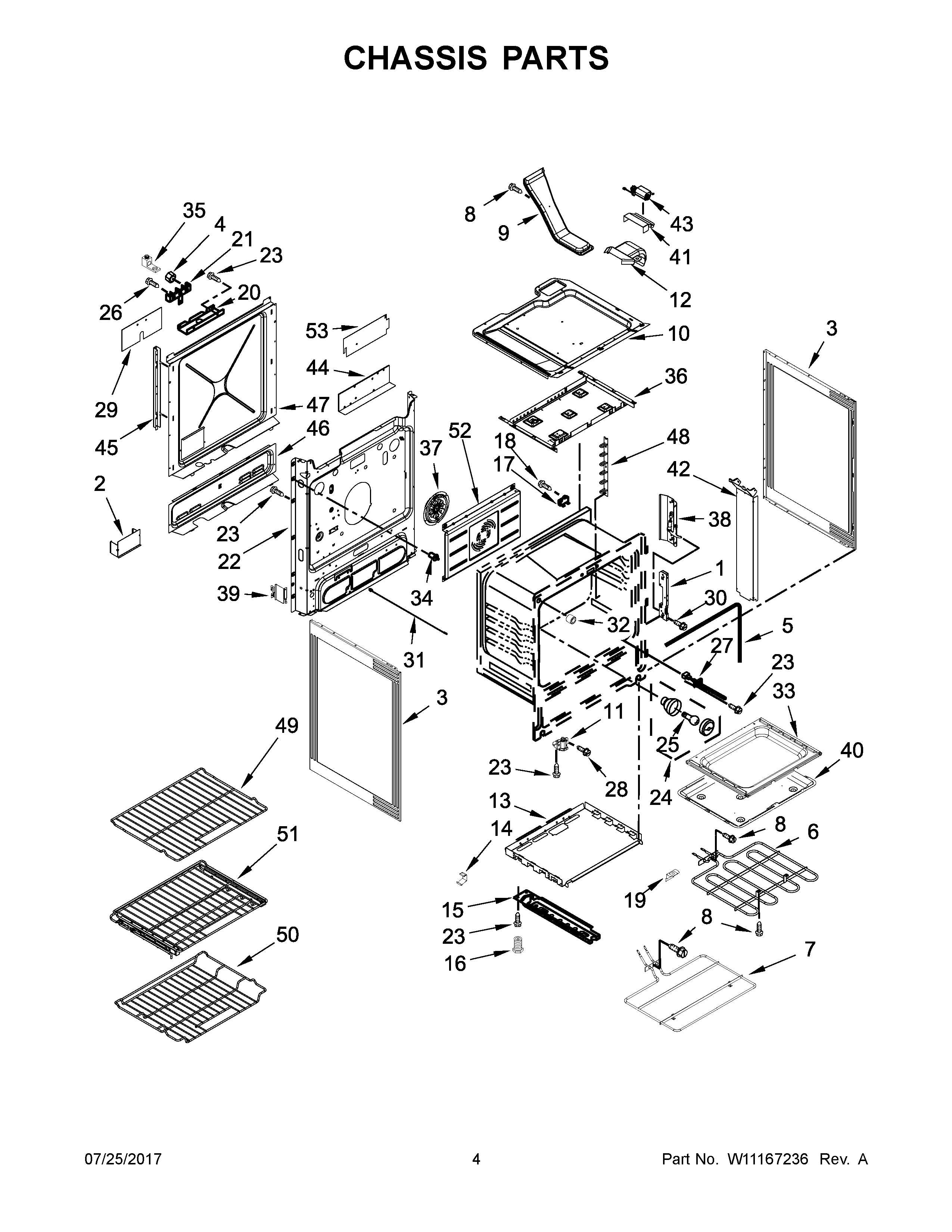

JDS1450FP0 03 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7111P017-60
NI	INSULATION, HEAT SHIELD
NI	INSULATION, BOTTOM
NI	INSULATION, WRAPPER
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, MAIN BACK
NI	STRAP, INSULATION
1	HINGE, RECEIVER
2	MAY W10162258
3	PANEL, SIDE (BLACK)
4	NUT
5	MAY W10162385
6	ELEMENT, BROIL
7	ELEMENT, BAKE
8	MAY W10362924
9	ASSEMBLY, FLUE
10	BOX, BURNER SI
11	ASSEMBLY, FRONT FOOT
12	MAY W10162257
13	SHIELD, BAKE
14	CLIP, PANEL
15	ASSEMBLY, BASE RAIL (LEFT)
15A	ASSEMBLY, BASE RAIL (RIGHT)
16	FOOT, LEVELING
17	FUSE, THERMAL
18	SCREW
19	MAY W10035900
20	BRACKET, SERVICE
21	BLOCK, TERMINAL
22	BACK, MAIN
23	SCREW
24	ASSEMBLY, LIGHT
25	BULB, OVEN LIGHT
26	SCREW
27	MAY W10586204
28	SCREW
29	MAY W10655441
30	MAY W10031780
31	ROD, REAR DOOR
32	SPACER, DOOR
33	BOTTOM, OVEN
34	SWITCH, DOOR
35	KIT, BARE WIRE ADAPTER BLOCK
36	BURNER, BOX GAS
37	MAY W10874472
38	RECEIVER, SLOW CLOSE HINGE
39	BRACKET, SUPPORT
40	MAY W10346147
41	DUCT, COVER
42	DUCT, COOLING
43	ASSEMBLY, COOLING FAN
44	SHIELD, HEAT
45	MAY W10162241
46	MAY W10575377
47	MAY W10289172
48	RACK, LADDER
49	RACK, HEAVY DUTY
50	RACK, MAXIMUM CAPACITY
51	MAY W10911366
52	BAFFLE, FULL CONVECTION
53	SHIELD, WIRE
