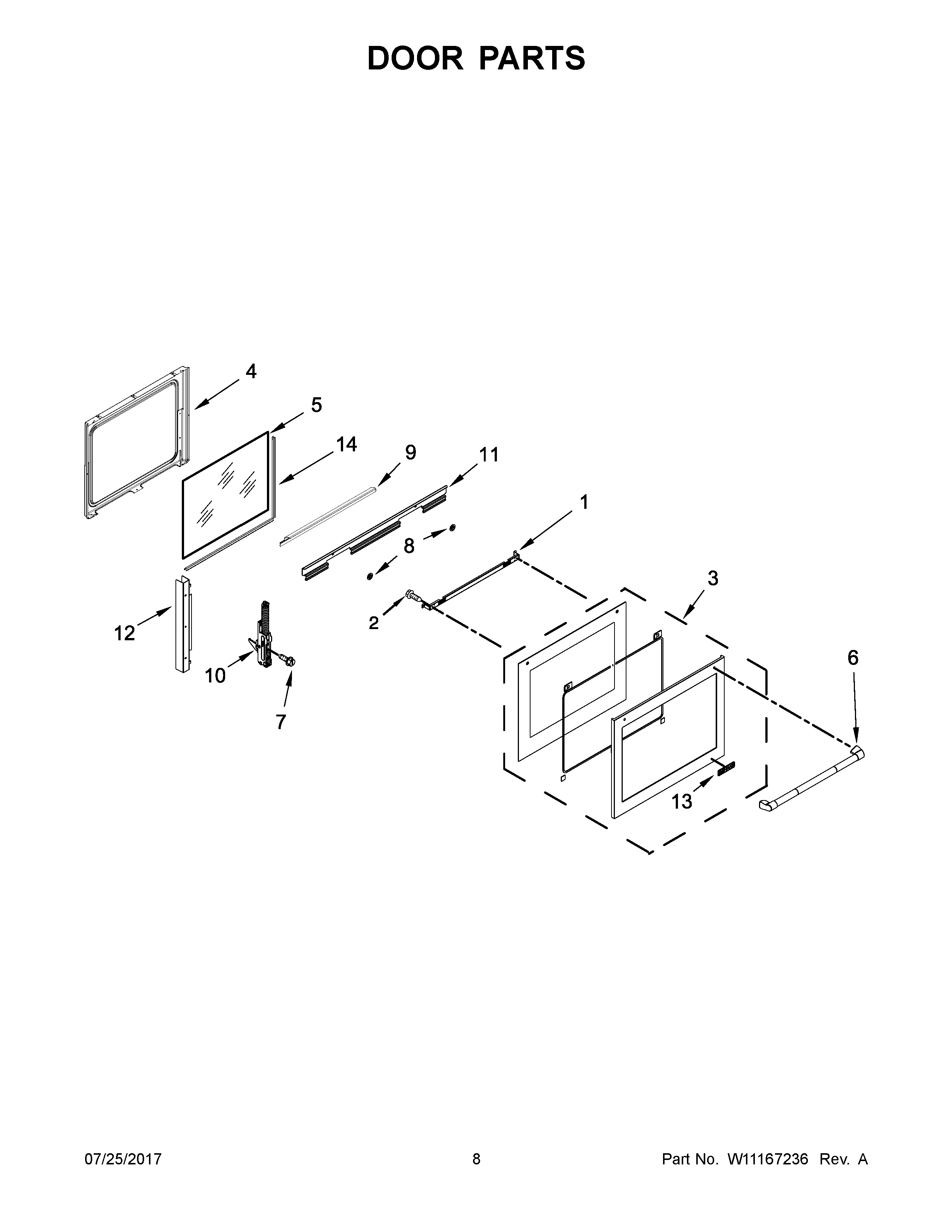

JDS1450FP0 05 – DOOR PARTS

Written by

Products

Position	Product
1	BRACKET, GLASS UPPER HANDLE
2	SCREW
3	ASSEMBLY, OUTER DOOR (STAINLESS)
4	LINER, DOOR
5	GLASS, INNER
6	ASSEMBLY, DOOR HANDLE (STAINLESS)
7	SCREW
8	WASHER, DOOR
9	SCOOP, DOOR (STAINLESS)
10	HINGE, SLOW CLOSE
11	RAIL, HORIZONTAL SUPPORT
12	RAIL, VERTICAL SUPPORT
13	MAY W10159578
14	SPACER, GLASS
