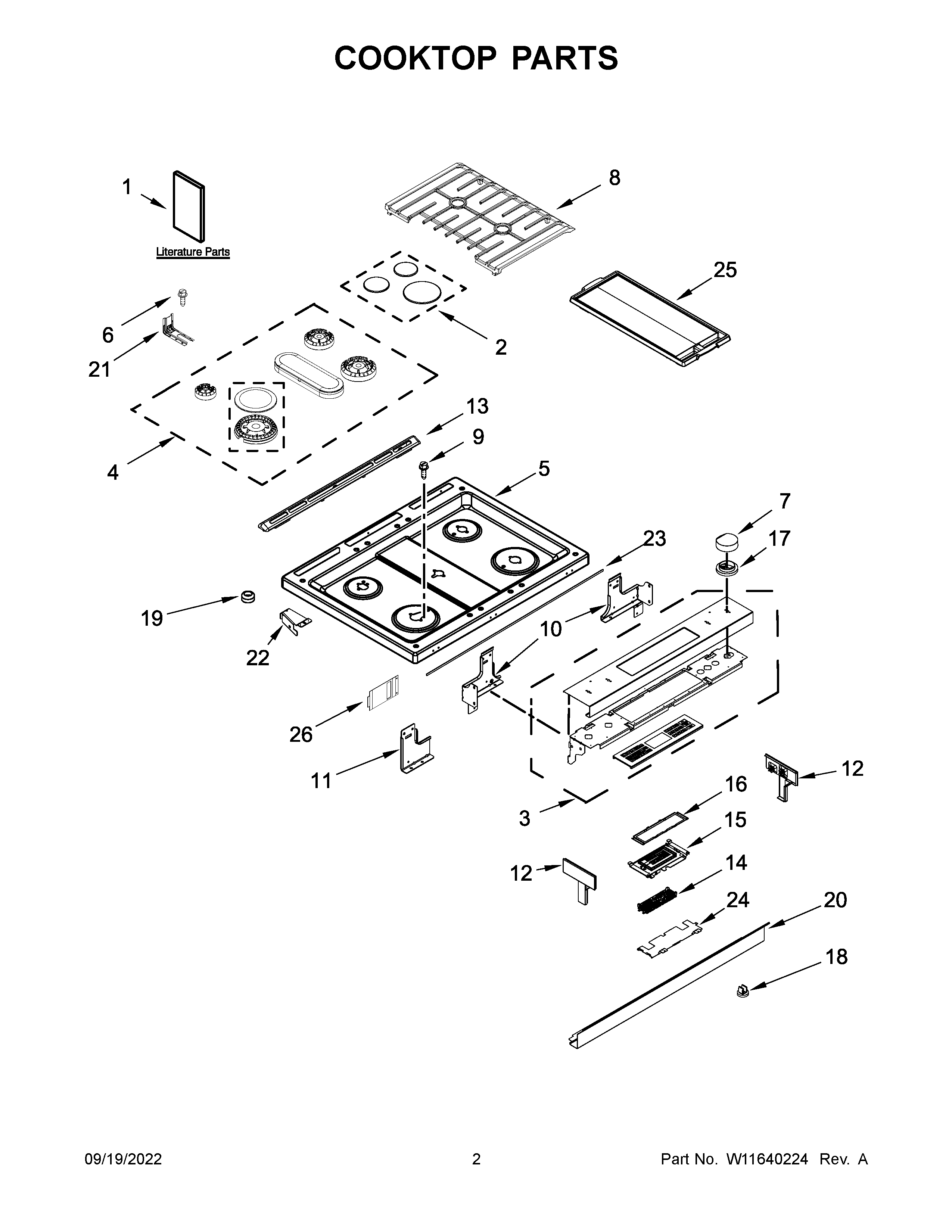

JDS1450ML0 02 – COOKTOP PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	3400964 Whirlpool Oven Clip
NI	16515 Whirlpool Clip
NI	W11176109 Whirlpool Wire Harness
NI	W11226775 Whirlpool Wire Harness
NI	HARNESS, MAIN
NI	W11025616 Whirlpool Wire Harness
1D	CONTROL GUIDE
1	INSTRUCTIONS, INSTALLATION
1E	QUICK START GUIDE
1A	OWNERS MANUAL
1C	DIMENSION GUIDE
1B	TECH SHEET
2	W11605764 Whirlpool Burner Cap
3	W11647017 Whirlpool Control Panel
4	W11662377 Whirlpool Range Burner Head
5	COOKTOP (STAINLESS)
6	SCREW, ANTI-TIP KIT
7	KNOB (STAINLESS (ALL EXCEPT LEFT FRONT))
8	W11241056 Whirlpool Grate Kit
9	WP3196557 Whirlpool Screw
10	BRACKET,SUPPORT (LEFT)
10A	BRACKET, SUPPORT (RIGHT)
11	W10598048 Whirlpool Support Bracket
12A	W10557754 Whirlpool Endcap Panel
12	W10557751 Whirlpool Panel End Cap
13	W11170796 Whirlpool Vent Trim
14	W11647018-includeCORE Whirlpool W11647018 Refrigerator Electronic Control Board
15	W11120573 Whirlpool Range Power Board
16	W10557780 Whirlpool Bracket Mounting
17	BEZEL-KNOB
18	W11025100 Whirlpool Insert
19	W11690600 Whirlpool Bumper
20	W10565662 Whirlpool Mounting Bracket
21	W11502257 Whirlpool Anchor Tip
22	W10162253 Whirlpool Mounting Bracket
22A	W10162252 Whirlpool Bracket Mounting
23	GASKET, CONSOLE AND COOKTOP
24	W10558372 Whirlpool Bracket Mounting
25	W10432544 Whirlpool Range Griddle
26	SHIELD, KEYPAD
