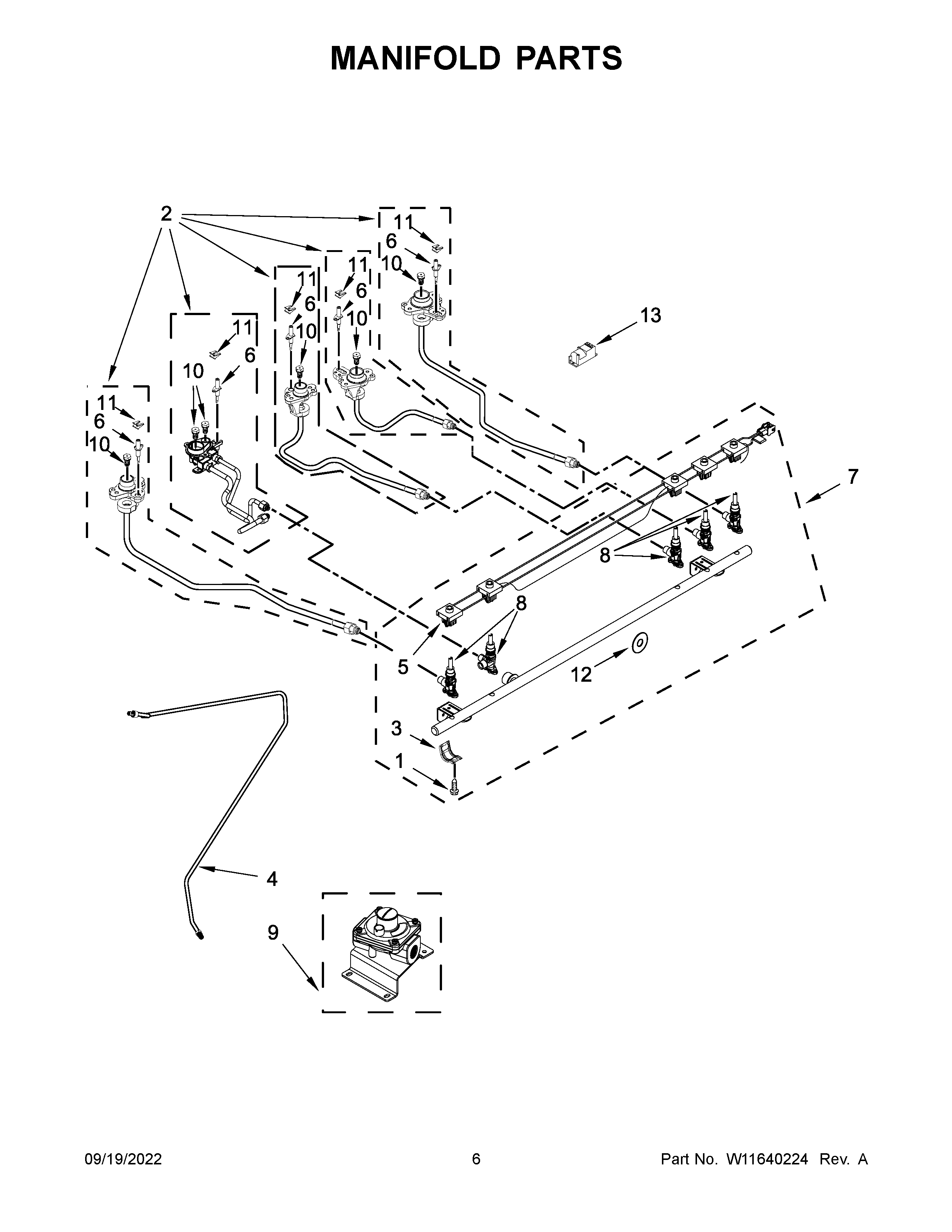

JDS1450ML0 04 – MANIFOLD PARTS

JDS1450ML0 04 – MANIFOLD PARTS

Written by

in

JDS1450ML0 04 – MANIFOLD PARTS

Products

PositionProduct
NIFOLLOWING PARTS NOT ILLUSTRATED
NIWPW10182767 Whirlpool Wire Tie
NIW11436985 Whirlpool Orifice Spud
1W11577790 Whirlpool Screw Assembly
2DASSEMBLY, ORIFICE (8K) (CENTER)
2CASSEMBLY, ORIFICE (9.2K) (RIGHT REAR)
2BASSEMBLY, ORIFICE (15K) (RIGHT FRONT)
2W11186511 Whirlpool Holder Orifice
3W10949105 Whirlpool Mounting Bracket
4W10552945 Whirlpool Gas Tubing
5W11596366 Whirlpool Wire Harness
6CW11661897 Whirlpool Range Surface Igniter
6BW11643126 Whirlpool Surface Igniter
6AW11666003 Whirlpool Range Surface Igniter
6W11675301 Whirlpool Range Surface Igniter
7W11602206 Whirlpool Manufactured Pipe
8W11593170 Whirlpool Burner Valve
8AVALVE-BRNR
8BVALVE-BRNR
8CW11620677 Whirlpool Burner Valve
9W10661850 Whirlpool Regulator
10AORIFICE (1.45K) (LEFT FRONT)
10BORIFICE, ASSEMBLY (LEFT REAR)
10CW10849717 Whirlpool Orifice Spud
10DW10849714 Whirlpool Orifice Spud
10EORIFICE (8K) (CENTER)
10ORIFICE (18K) (LEFT FRONT)
11W11684564 Whirlpool Clip Assembly
12W11507167 Whirlpool Switch Seal
13WPW10475149 Whirlpool Spark Module
