JDS1450ML1 04 – MANIFOLD PARTS
Written by
in

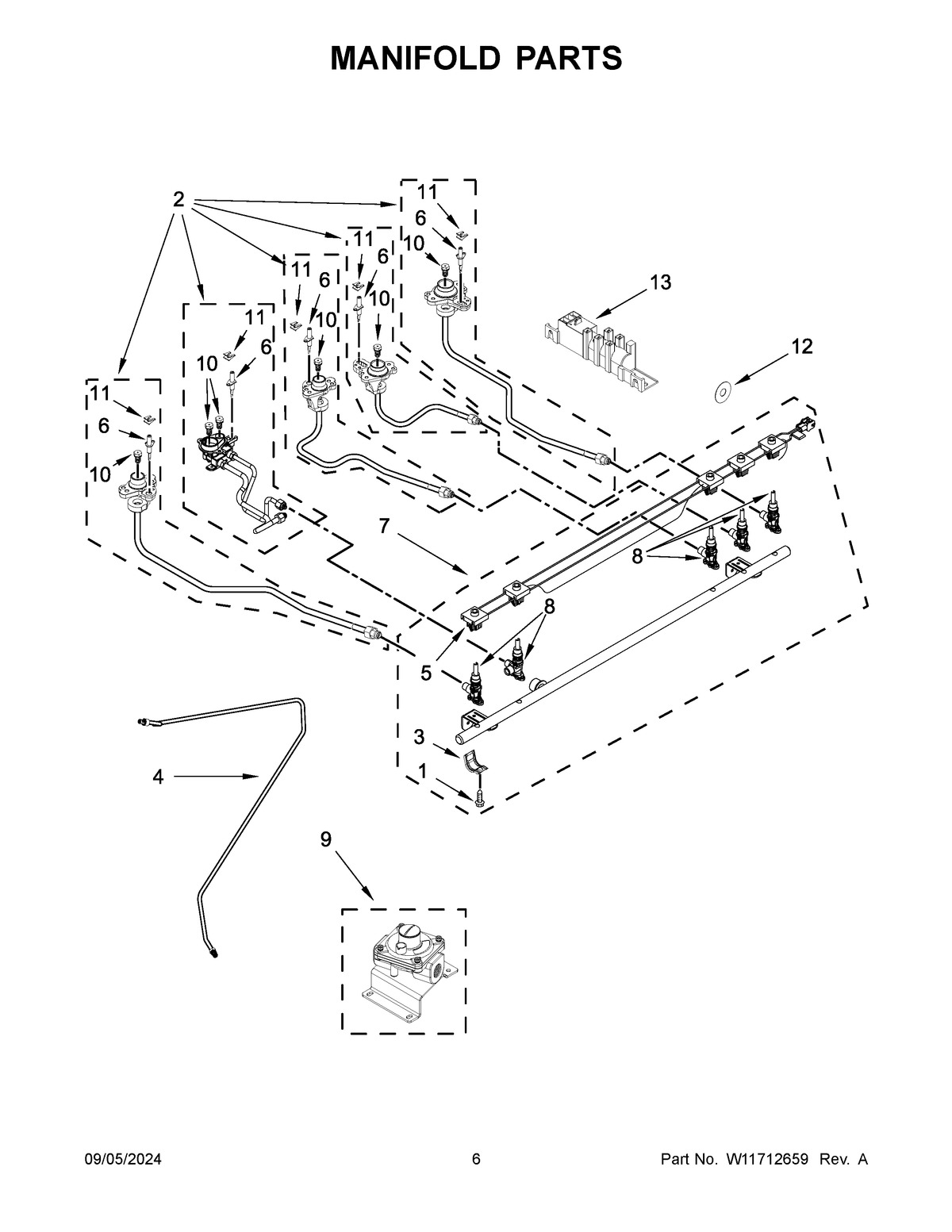

JDS1450ML1 04 – MANIFOLD PARTS
Products
Position
Product
NI
FOLLOWING PARTS NOT ILLUSTRATED
NI
W11436985 Whirlpool Orifice Spud
NI
WPW10182767 Whirlpool Wire Tie
1
W11577790 Whirlpool Screw Assembly
2D
ASSEMBLY, ORIFICE (8K) (CENTER)
2C
ASSEMBLY, ORIFICE (9.2K) (RIGHT REAR)
2B
ASSEMBLY, ORIFICE (15K) (RIGHT FRONT)
2A
ORIFICE, ASSEMBLY (LEFT REAR)
2
W11186511 Whirlpool Holder Orifice
3
W10949105 Whirlpool Mounting Bracket
4
W10552945 Whirlpool Gas Tubing
5
W11596366 Whirlpool Wire Harness
6C
W11661897 Whirlpool Range Surface Igniter
6B
W11643126 Whirlpool Surface Igniter
6A
W11666003 Whirlpool Range Surface Igniter
6
W11675301 Whirlpool Range Surface Igniter
7
W11602206 Whirlpool Manufactured Pipe
8
W11593170 Whirlpool Burner Valve
8A
VALVE-BRNR
8B
VALVE-BRNR
8C
W11620677 Whirlpool Burner Valve
9
W10661850 Whirlpool Regulator
10
ORIFICE (NOT SERVICED)
11
W11684564 Whirlpool Clip Assembly
12
W11507167 Whirlpool Switch Seal
13
W11703692 Whirlpool Speaker Module
←
