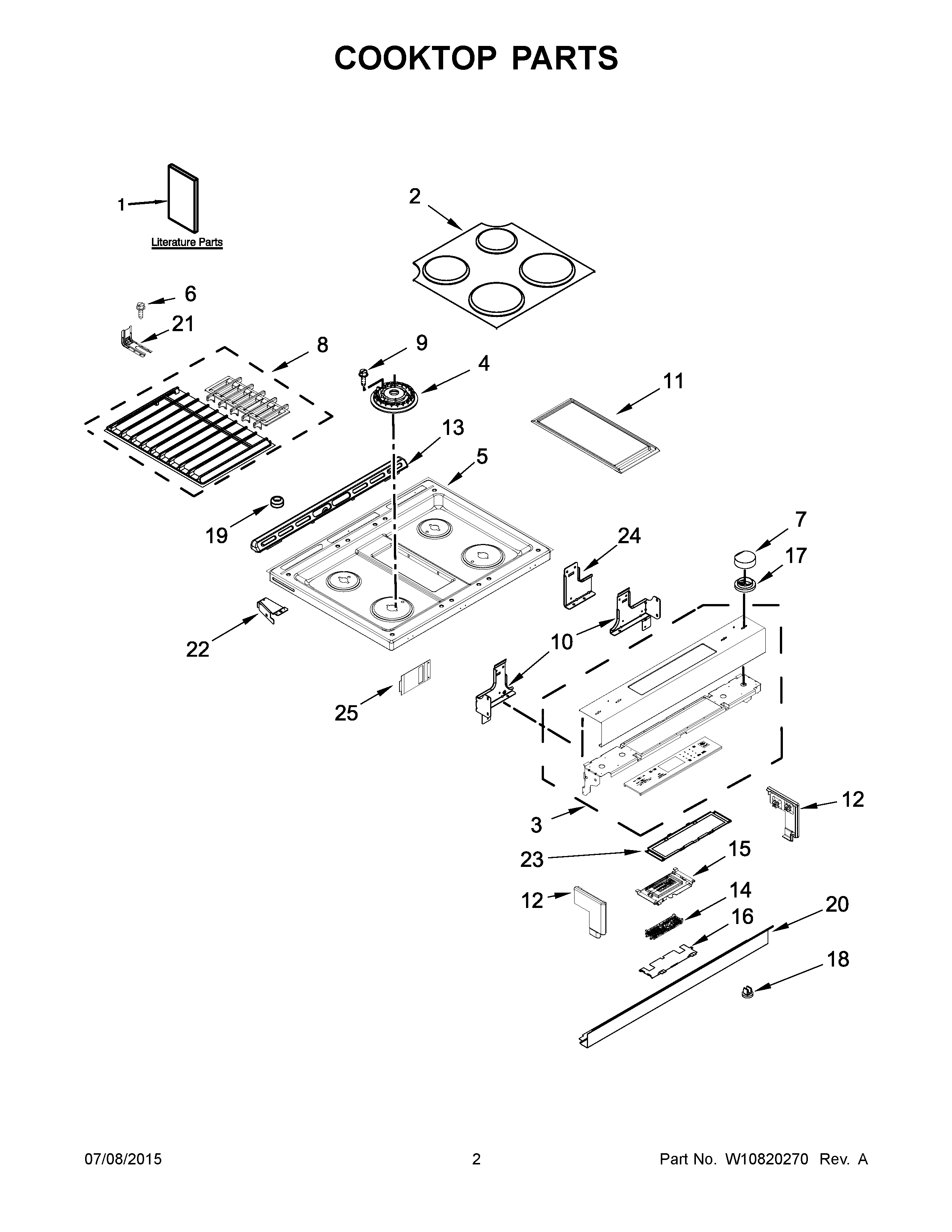

JDS1750CES0 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY W10575120
NILINER (NOT A SERVICEABLE PART)
NICLIP, HARNESS
NIMAY W10580237
NIHARNESS, DISPLAY
1DTIPS, SAFE COOKING (ENGLISH)
1AMAY W10750373
1CMAY W10750126
1MAY W10787365
1ETIPS, SAFE COOKING (FRENCH)
1GMAY W10400067
1FMAY W10400066
1BSHEET, TECH
2SET, BURNER CAP (BLACK)
3MAY W10676659
4MAY W10556378
4BMAY W10556381
4AMAY W10556377
5MAY W10482062
6SCREW, ANTI-TIP KIT
7MAY W10505764
8MAY W10752103
9SCREW
10SUPPORT, COOKTOP (LEFT)
10ASUPPORT, COOKTOP (RIGHT)
11GRIDDLE
12ENDCAP (STAINLESS (LEFT))
12AENDCAP (STAINLESS (RIGHT))
13VENT, TRIM TOP (STAINLESS)
14MAY W10453974
15MAY W10603097
16BRACKET, CONTROL
17MAY W10490679
18GROMMET
19BUMPER
20MAY W10743281
21BRACKET, ANTI-TIP
22BRACE, CORNER (LEFT)
22ABRACE, CORNER (RIGHT)
23BRACKET, CONTROL
24BRACKET, CONSOLE (CE
25SHIELD, KEYPAD
