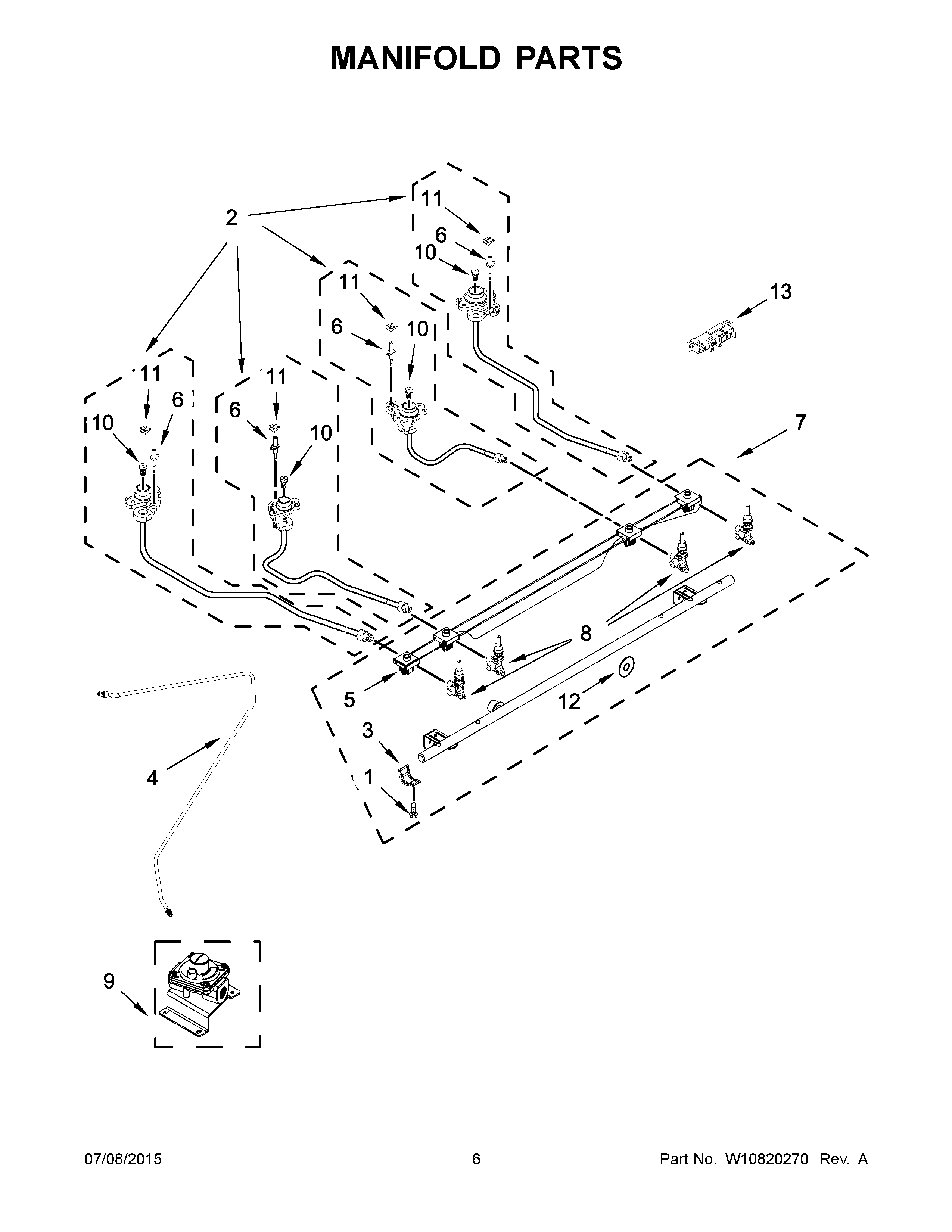

JDS1750CES0 04 – MANIFOLD PARTS

Products

Position	Product
NI	KIT, LP CONVERSION
NI	LINER (NOT A SERVICEABLE PART)
1	SCREW, VALVE
2C	MAY W10552136
2B	MAY W10552133
2A	MAY W10552142
2	MAY W10552143
3	BRACKET, SADDLE VALVE
4	MAY W10552945
5	MAY W10578095
6B	MAY W10496873
6	MAY W10496872
6C	MAY W10496874
6A	ELECTRODE (RIGHT FRONT & CENTER)
7	MAY W10556307
8	VALVE, GAS (RIGHT FRONT)
8B	VALVE, GAS (RIGHT REAR & CENTER)
8A	VALVE, GAS (LEFT REAR)
9	MAY W10661850
10B	ORIFICE (LEFT FRONT)
10C	MAY W10515054
10A	ORIFICE (RIGHT REAR)
10	ORIFICE (RIGHT FRONT)
11	CLIP, SPRING ELECTRODE
11A	MAY W10256046
12	SEAL, SWITCH SHAFT
13	MAY W10475148
