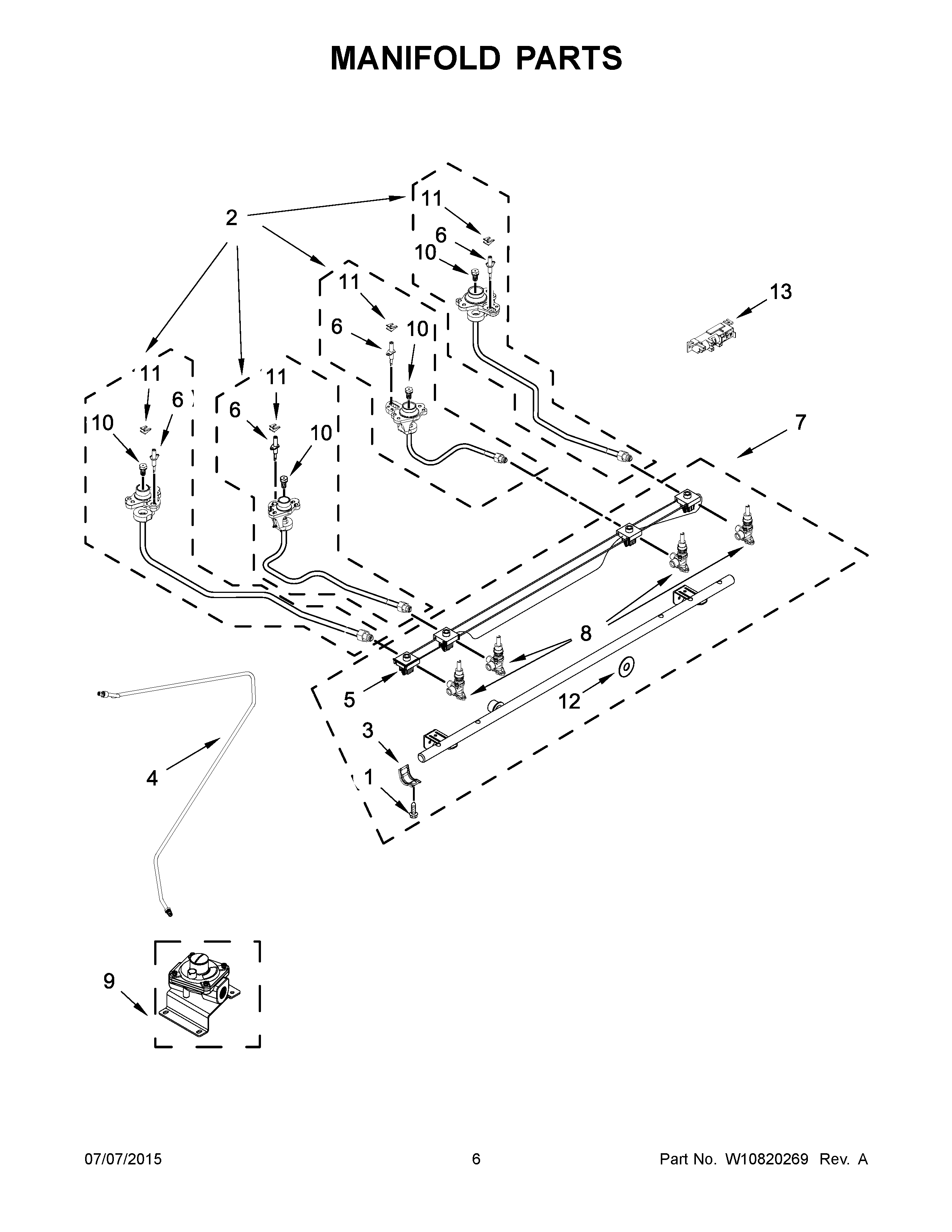

JDS1750EP0 04 – MANIFOLD PARTS

JDS1750EP0 04 – MANIFOLD PARTS

Written by

in

JDS1750EP0 04 – MANIFOLD PARTS

Products

PositionProduct
NIKIT, LP CONVERSION
NILINER (NOT A SERVICEABLE PART)
1SCREW
2AMAY W10552142
2BMAY W10552133
2CMAY W10552136
2MAY W10552143
3MAY W10762686
4MAY W10552945
5MAY W10578095
6CMAY W10496874
6AELECTRODE (RIGHT FRONT & CENTER)
6MAY W10496872
6BMAY W10496873
7MAY W10556307
8AVALVE, GAS (LEFT REAR)
8VALVE, GAS (RIGHT FRONT)
8BVALVE, GAS (RIGHT REAR & CENTER)
9MAY W10661850
10CMAY W10515054
10AORIFICE (RIGHT REAR)
10ORIFICE (RIGHT FRONT)
10BORIFICE (LEFT FRONT)
11AMAY W10256046
11CLIP, SPRING ELECTRODE
12SEAL, SWITCH SHAFT
13MAY W10475148
