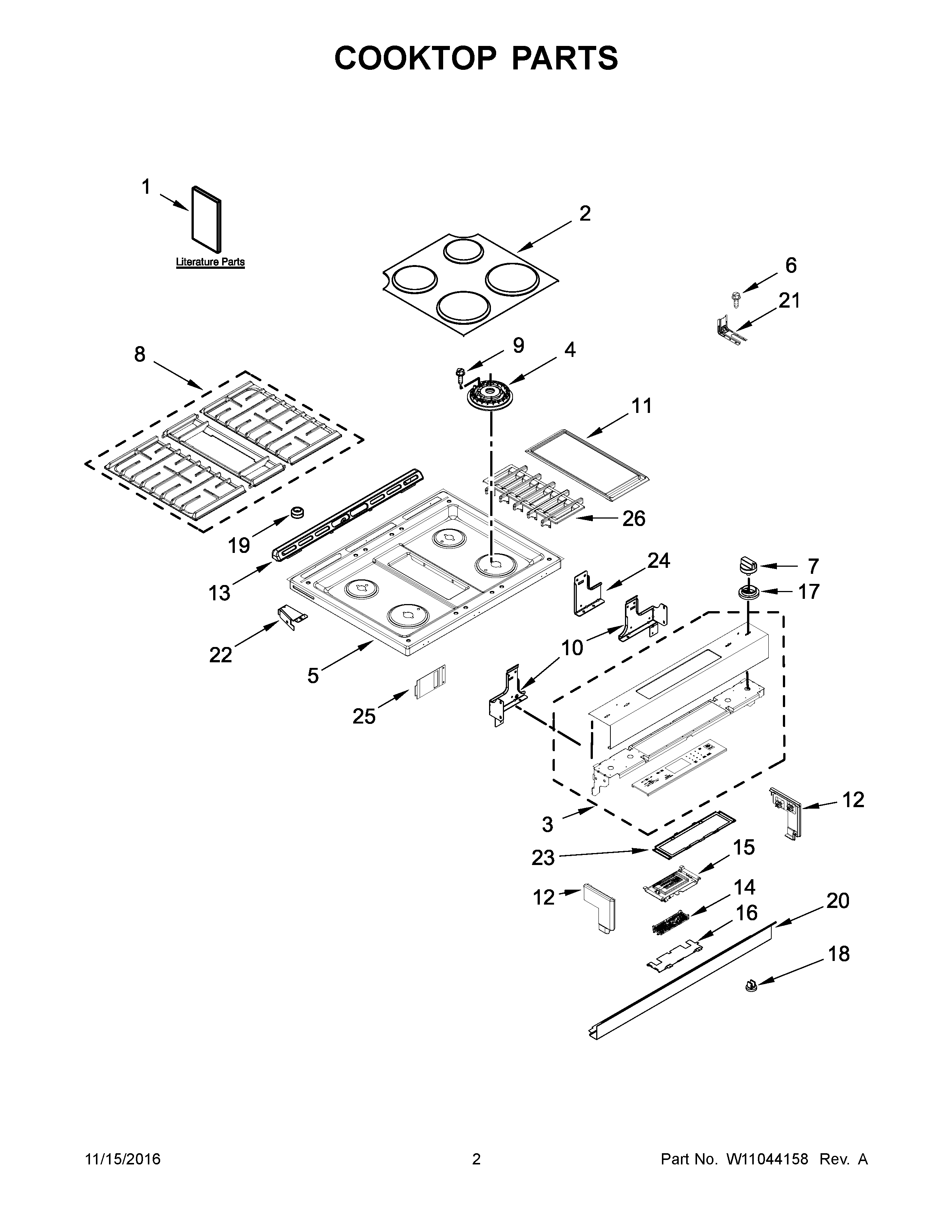

JDS1750EP1 02 – COOKTOP PARTS

JDS1750EP1 02 – COOKTOP PARTS

Written by

in

JDS1750EP1 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY W10575120
NIMAY W10653092
NIMAY W10812964
NIHARNESS, DISPLAY
NICLIP, HARNESS
NILINER (NOT A SERVICEABLE PART)
NIMAY W10814444
1GMAY W10400067
1FMAY W10400066
1BSHEET, TECH
1ETIPS, SAFE COOKING (FRENCH)
1HMAY W10817089
1MAY W10787365
1AMAY W10750373
1CMAY W10750126
1DTIPS, SAFE COOKING (ENGLISH)
2SET, BURNER CAP (BLACK)
3MAY W10901068
4MAY W10556378
4BMAY W10556377
4AMAY W10556381
5MAY W10482062
6SCREW, ANTI-TIP KIT
7KNOB (STAINLESS)
8MAY W10752103
9SCREW
10SUPPORT, COOKTOP (LEFT)
10ASUPPORT, COOKTOP (RIGHT)
11GRIDDLE
12AENDCAP (STAINLESS (RIGHT))
12ENDCAP (STAINLESS (LEFT))
13VENT, TRIM TOP (STAINLESS)
14MAY W10453974
15MAY W10603097
16BRACKET, CONTROL
17MAY W10490679
18GROMMET
19BUMPER
20MAY W10743281
21BRACKET, ANTI-TIP
22ABRACE, CORNER (RIGHT)
22BRACE, CORNER (LEFT)
23BRACKET, CONTROL
24BRACKET, CONSOLE (CE
25SHIELD, KEYPAD
26GRILL, AIR (BLACK)
