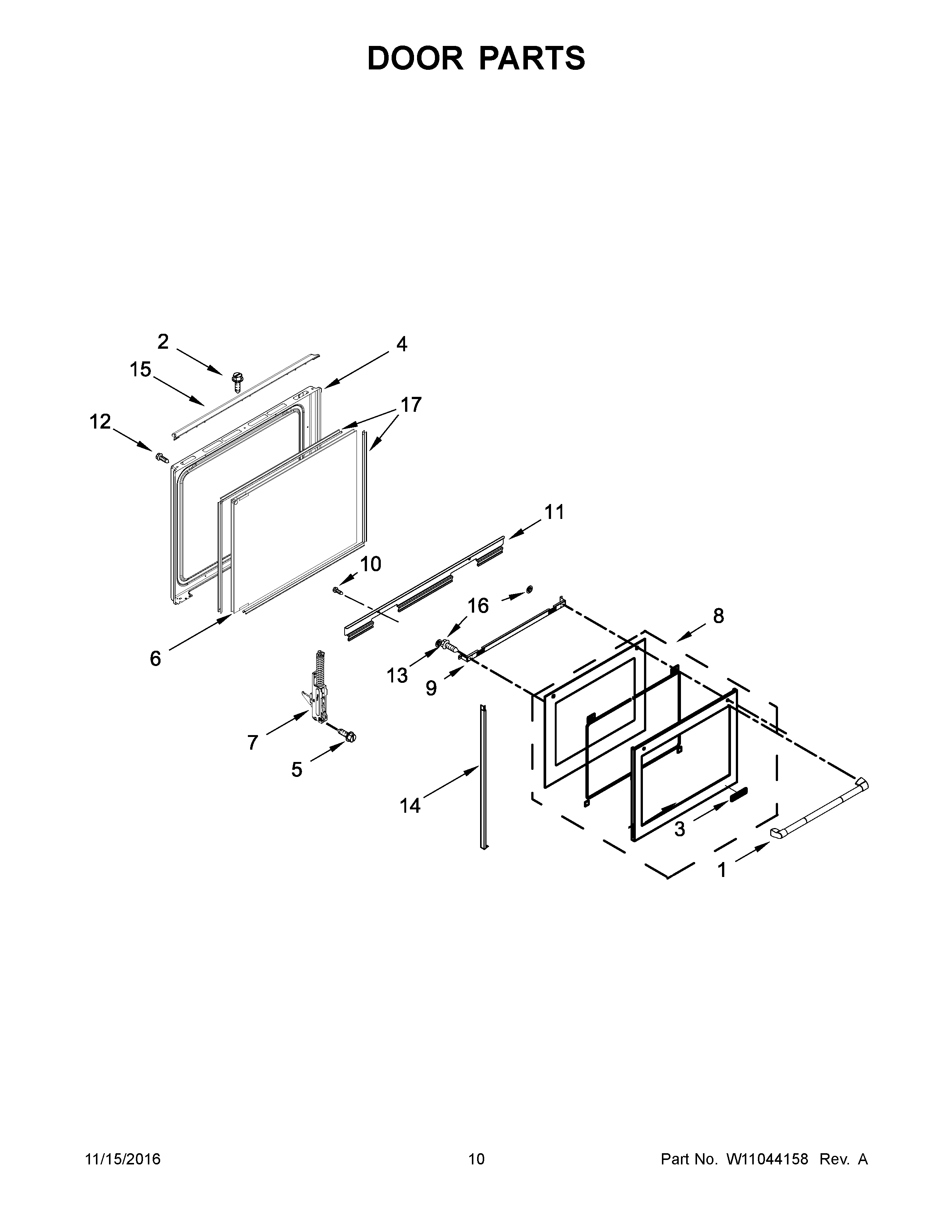

JDS1750EP1 06 – DOOR PARTS

Written by

Products

Position	Product
1	ASSEMBLY, DOOR HANDLE (STAINLESS)
2	SCREW
3	MAY W10159578
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	HINGE, SLOW CLOSE
8	ASSEMBLY, OUTER DOOR (STAINLESS)
9	BRACKET, GLASS UPPER HANDLE
10	SCREW
11	RAIL, HORIZONTAL SUPPORT
12	MAY W10031780
13	MAY W10530626
14	RAIL, VERTICAL SUPPORT
15	SCOOP, DOOR (STAINLESS)
16	WASHER, DOOR
17	SPACER, GLASS
