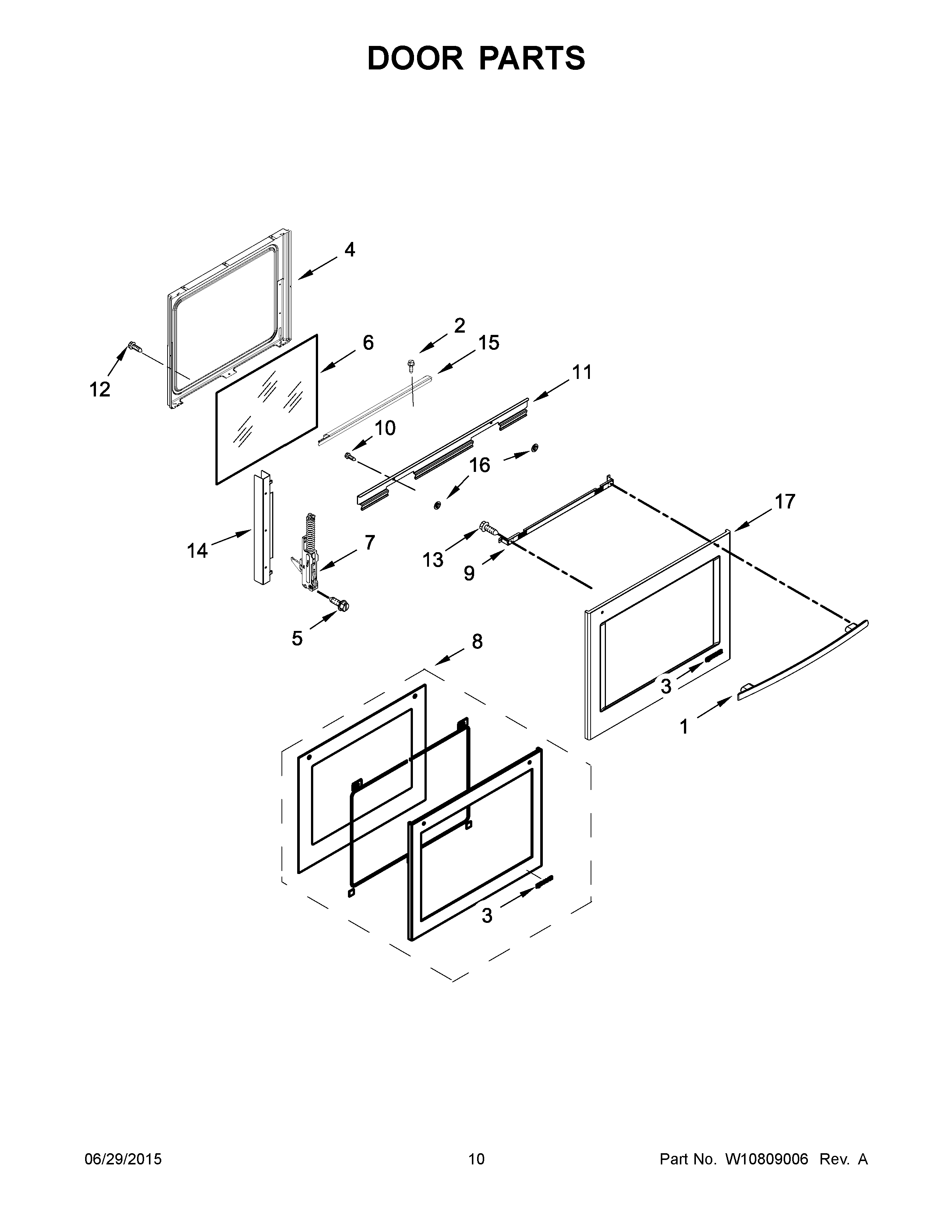

JDS1750ES0 06 – DOOR PARTS

JDS1750ES0 06 – DOOR PARTS

Written by

in

JDS1750ES0 06 – DOOR PARTS

Products

PositionProduct
1ASSEMBLY, DOOR HANDLE (BLACK)
1AASSEMBLY, DOOR HANDLE (STAINLESS)
2SCREW
3ASSEMBLY, BADGE (BLACK)
3AASSEMBLY, BADGE (STAINLESS)
4MAY W10541882
5SCREW
6MAY W10541888
7HINGE, SLOW CLOSE (STAINLESS MODELS)
8ASSEMBLY, OUTER DOOR (STAINLESS)
9BRACKET, GLASS UPPER HANDLE
10SCREW
11MAY W10541885
12MAY W10031780
13SCREW
14MAY W10541883
15SCOOP, DOOR (BLACK)
15ASCOOP, DOOR (STAINLESS)
16WASHER, DOOR
17ASSEMBLY, OUTER DOOR (BLACK)
