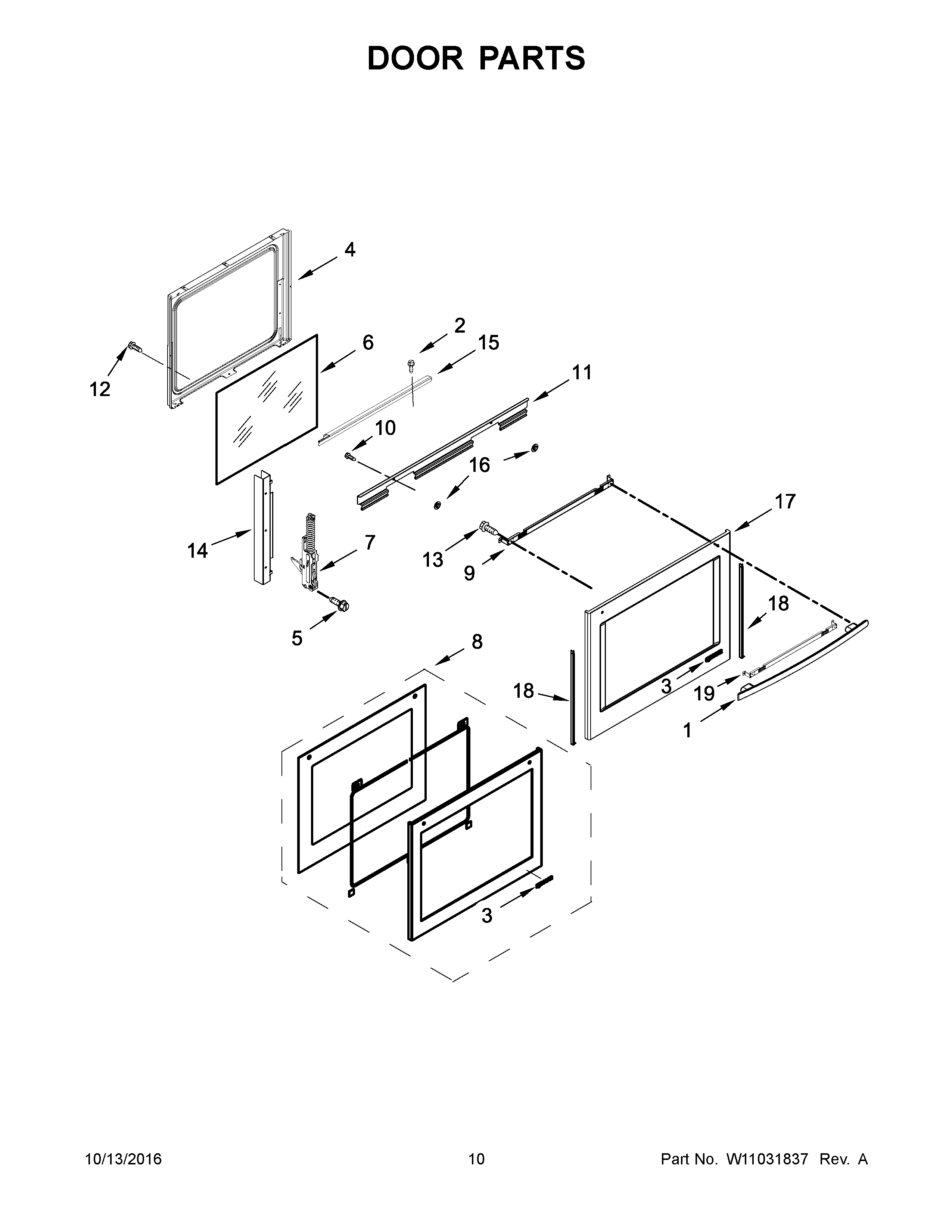

JDS1750ES1 06 – DOOR PARTS

Products

Position	Product
1	ASSEMBLY, DOOR HANDLE (BLACK)
1A	ASSEMBLY, DOOR HANDLE (STAINLESS)
2	SCREW
3	ASSEMBLY, BADGE (BLACK)
3A	ASSEMBLY, BADGE (STAINLESS)
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	HINGE, SLOW CLOSE
8	ASSEMBLY, OUTER DOOR (STAINLESS)
9	BRACKET, GLASS UPPER HANDLE
10	SCREW
11	RAIL, HORIZONTAL SUPPORT
12	MAY W10031780
13	SCREW
14	RAIL, VERTICAL SUPPORT
15	SCOOP, DOOR (BLACK)
15A	SCOOP, DOOR (STAINLESS)
16	WASHER, DOOR
17	ASSEMBLY, OUTER DOOR (BLACK)
18	TRIM, DOOR SIDE (BLACK)
19	DOOR, TRIM TOP
