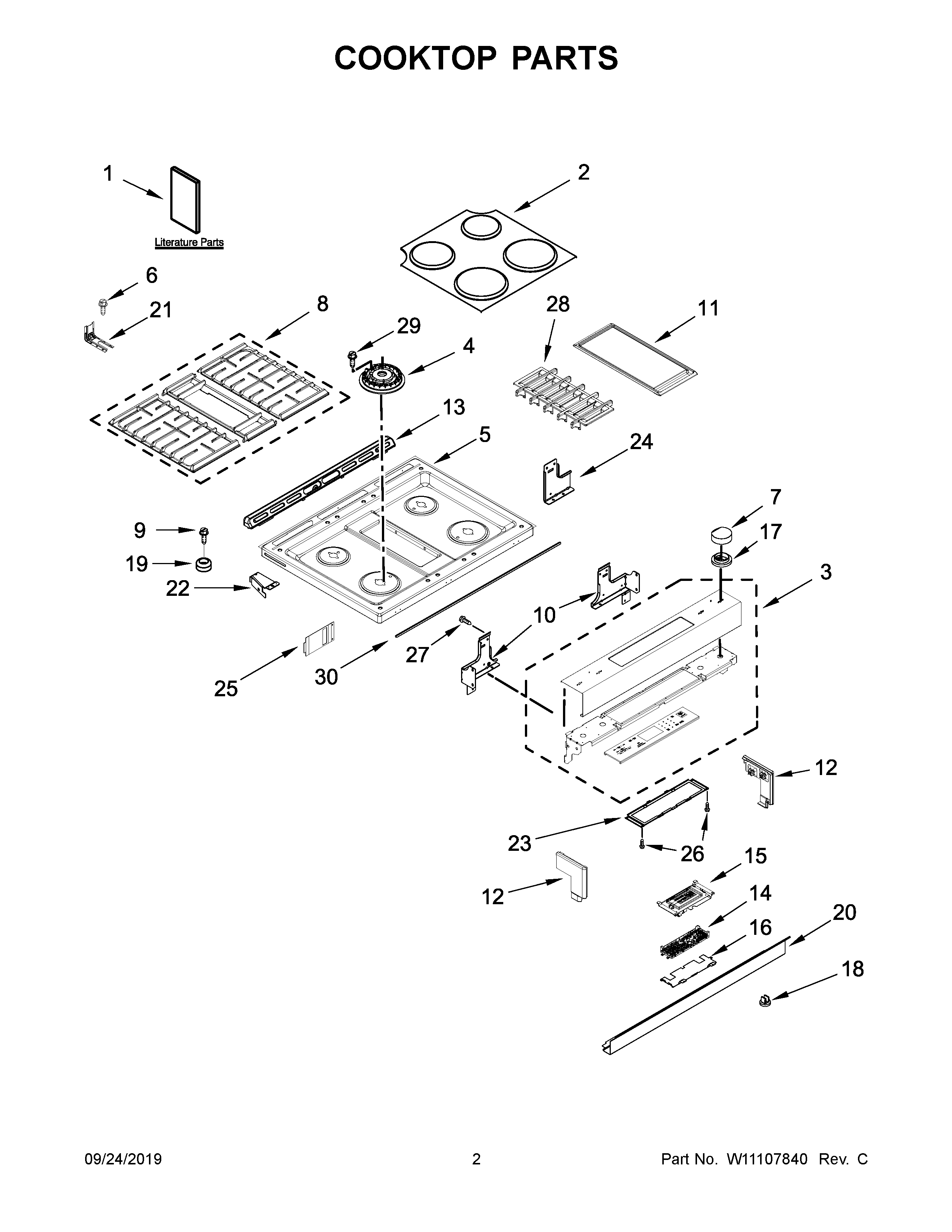

JDS1750FB0 02 – COOKTOP PARTSadmin2025-04-26T09:30:15+00:00JDS1750FB0 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | CLIP, HARNESS |
| NI | MAY W10575120 |
| NI | MAY W10911851 |
| NI | HARNESS, DISPLAY |
| NI | MAY W11198274 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | MAY W10653092 |
| 1 | MAY W11259377 |
| 1E | MAY W10400066 |
| 1B | SHEET, TECH |
| 1G | MAY W10817089 |
| 1F | MAY W10400067 |
| 1A | MAY W11123986 |
| 1C | MAY W10902654 |
| 1D | MAY W11120467 |
| 2 | SET, BURNER CAP (BLACK) |
| 3A | MAY W10901068 |
| 3 | MAY W10901069 |
| 4A | MAY W10556377 |
| 4 | MAY W10556378 |
| 4B | MAY W10556381 |
| 5 | MAY W10482049 |
| 5A | MAY W10482062 |
| 6 | SCREW, ANTI-TIP KIT |
| 7 | MAY W10505765 |
| 7A | MAY W10505764 |
| 8 | MAY W10752103 |
| 9 | SCREW |
| 10 | SUPPORT, COOKTOP (LEFT) |
| 10A | SUPPORT, COOKTOP (RIGHT) |
| 11 | GRIDDLE |
| 12C | ENDCAP (STAINLESS (RIGHT)) |
| 12B | ENDCAP (BLACK (RIGHT)) |
| 12 | ENDCAP (BLACK (LEFT)) |
| 12A | ENDCAP (STAINLESS (LEFT)) |
| 13 | MAY W10636528 |
| 13A | VENT, TRIM TOP (STAINLESS) |
| 14 | CONTROL, MRC2 |
| 15 | DISPLAY, ASSEMBLY |
| 16 | BRACKET, CONTROL |
| 17 | MAY W10490680 |
| 17A | MAY W10490679 |
| 18 | GROMMET |
| 19 | BUMPER |
| 20A | MAY W10743281 |
| 20 | MAY W10743280 |
| 21 | BRACKET, ANTI-TIP |
| 22 | BRACE, CORNER (LEFT) |
| 22A | BRACE, CORNER (RIGHT) |
| 23 | BRACKET, CONTROL |
| 24 | BRACKET, CONSOLE (CE |
| 25 | SHIELD, KEYPAD |
| 26 | SCREW |
| 27 | SCREW |
| 28 | GRILL, AIR (BLACK) |
| 29 | SCREW |
| 30 | GASKET, CONSOLE/COOKTOP |
