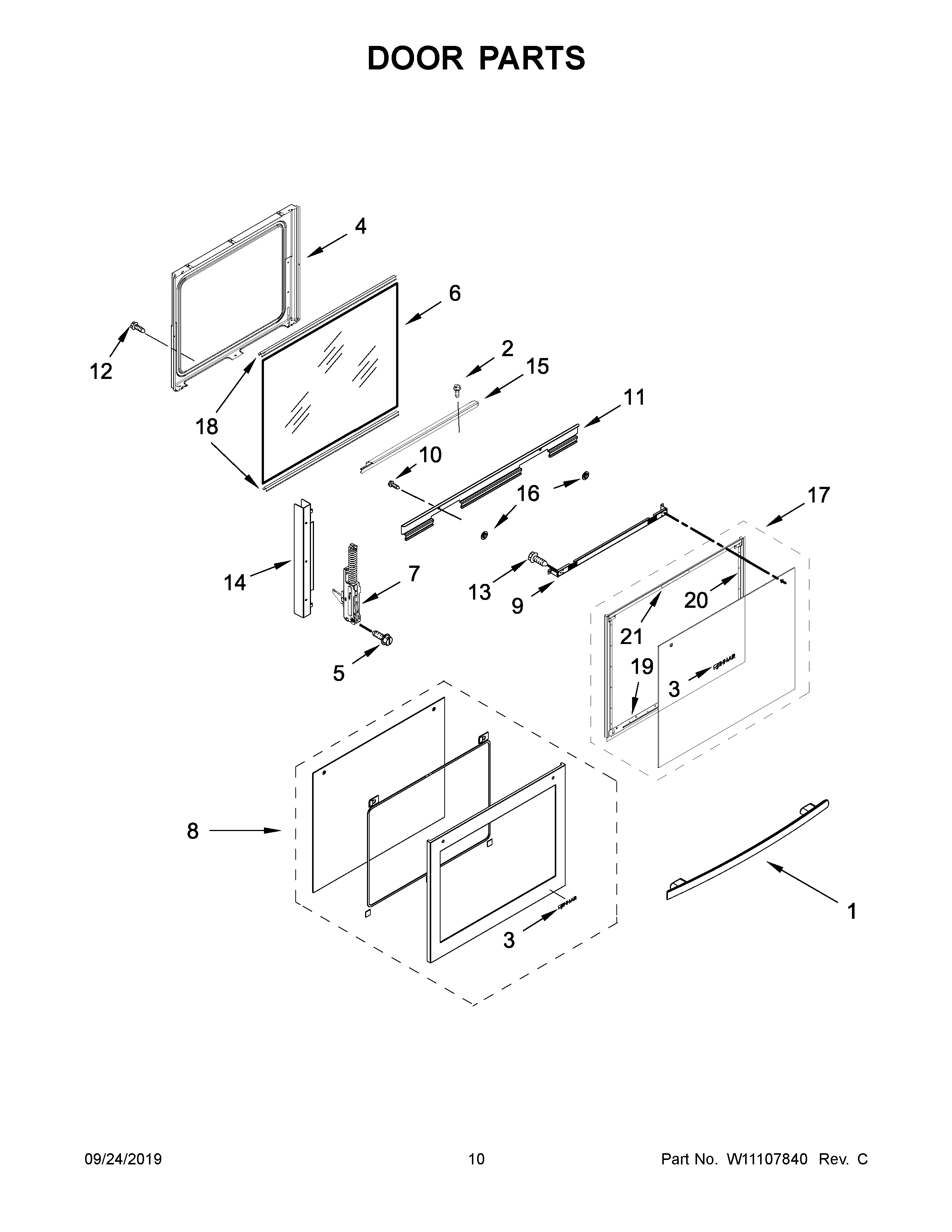

JDS1750FB0 06 – DOOR PARTS

Products

PositionProduct
1ASSEMBLY, DOOR HANDLE (BLACK)
1AASSEMBLY, DOOR HANDLE (STAINLESS)
2SCREW
3AASSEMBLY, BADGE (STAINLESS)
3ASSEMBLY, BADGE (BLACK)
4LINER, DOOR
5SCREW
6MAY W11223202
7AHINGE, SLOW CLOSE
7HINGE, SLOW CLOSE
8ASSEMBLY, OUTER DOOR (STAINLESS)
9BRACKET, GLASS UPPER HANDLE
10SCREW
11RAIL, HORIZONTAL SUPPORT
12MAY W10031780
13SCREW (STAINLESS MODELS)
14RAIL, VERTICAL SUPPORT
15SCOOP, DOOR (BLACK)
15ASCOOP, DOOR (STAINLESS)
16WASHER, DOOR
17ASSEMBLY, OUTER DOOR (BLACK)
18SPACER, GLASS
19MAY W10541912
20TRIM, DOOR SIDE (BLACK)
21DOOR, TRIM TOP
