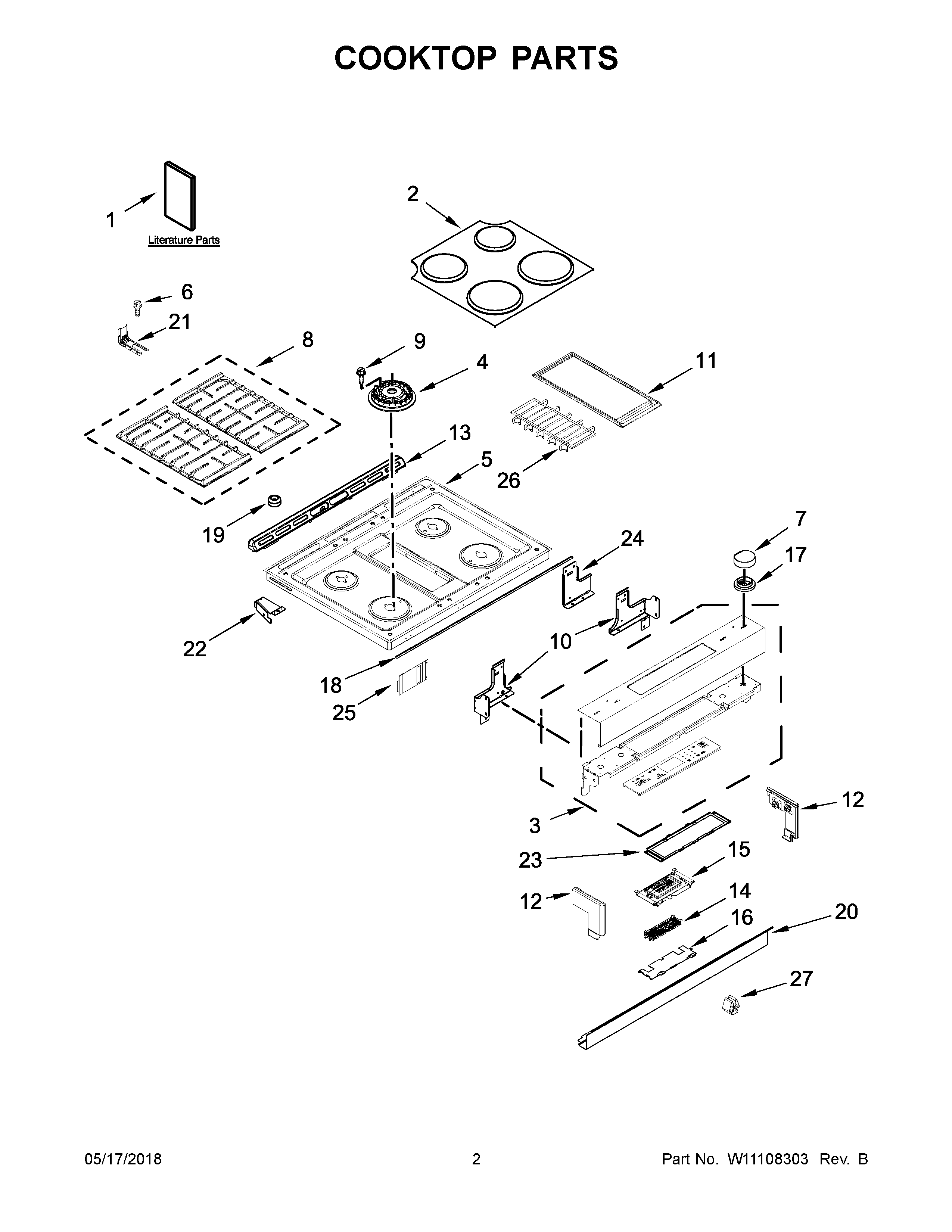

JDS1750FP0 02 – COOKTOP PARTS

JDS1750FP0 02 – COOKTOP PARTS

Written by

in

JDS1750FP0 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY W10575120
NIMAY W10653092
NIMAY W10812964
NIHARNESS, DISPLAY
NILINER (NOT A SERVICEABLE PART)
NIMAY W10911851
NICLIP, HARNESS
1EMAY W11120467
1DMAY W10400066
1BSHEET, TECH
1FMAY W10817089
1CMAY W10902654
1AMAY W11124002
1MAY W11123986
2SET, BURNER CAP (BLACK)
3MAY W10901068
4BMAY W10556381
4AMAY W10556377
4MAY W10556378
5MAY W10482062
6SCREW, ANTI-TIP KIT
7KNOB (STAINLESS)
8MAY W10752103
9SCREW
10SUPPORT, COOKTOP (LEFT)
10ASUPPORT, COOKTOP (RIGHT)
11GRIDDLE
12AENDCAP (STAINLESS (RIGHT))
12ENDCAP (STAINLESS (LEFT))
13VENT, TRIM TOP (STAINLESS)
14CONTROL, MRC2
15DISPLAY, ASSEMBLY
16BRACKET, CONTROL
17MAY W10490679
18GASKET, CONSOLE/COOKTOP
19BUMPER
20MAY W10743281
21BRACKET, ANTI-TIP
22ABRACE, CORNER (RIGHT)
22BRACE, CORNER (LEFT)
23BRACKET, CONTROL
24BRACKET, CONSOLE (CE
25SHIELD, KEYPAD
26GRILL, AIR (BLACK)
27MAY W10866583
