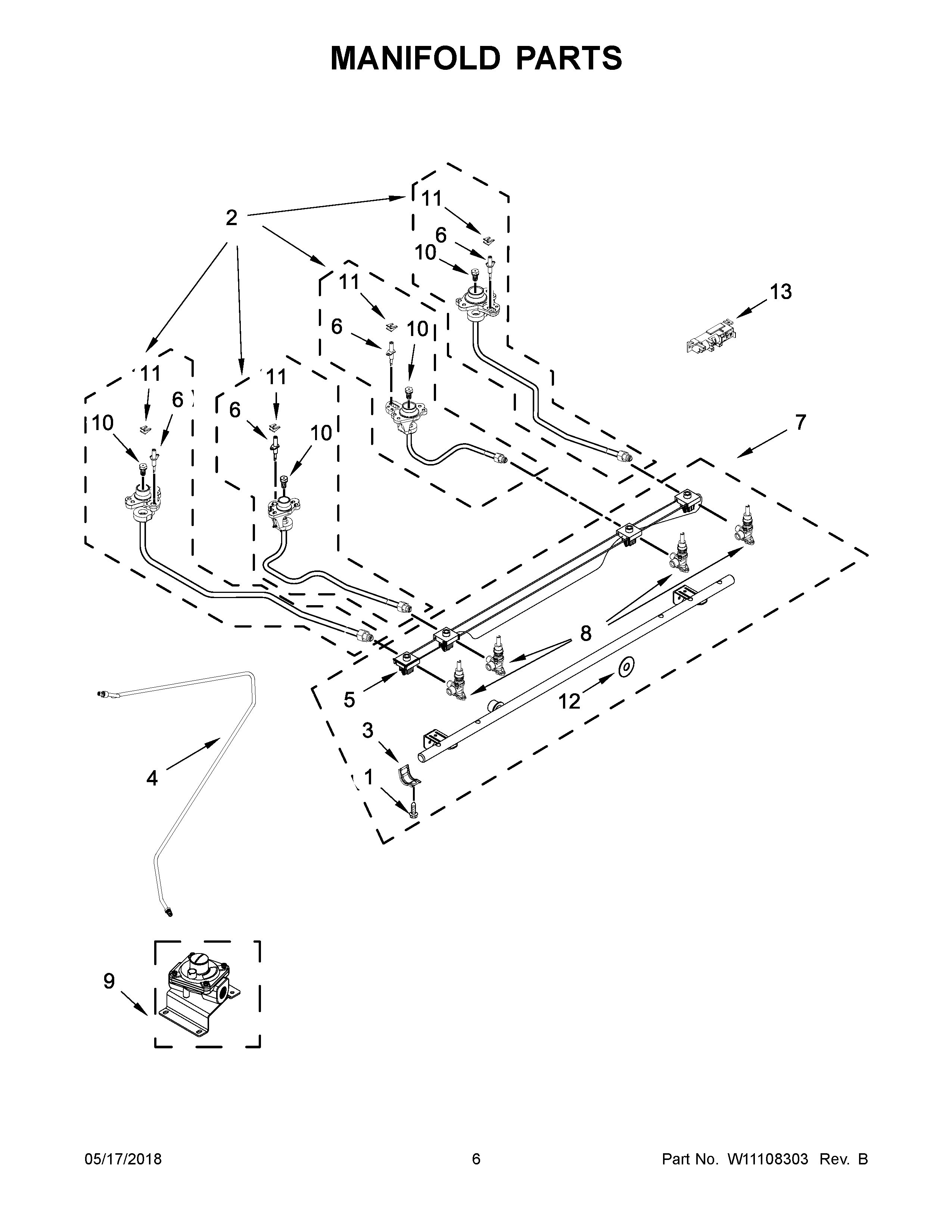

JDS1750FP0 04 – MANIFOLD PARTS

JDS1750FP0 04 – MANIFOLD PARTS

Written by

in

JDS1750FP0 04 – MANIFOLD PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIKIT, LP CONVERSION
1WP7103P027-60 Whirlpool Nut
2AMAY W10552142
2BMAY W10552133
2CMAY W10552136
2MAY W10552143
3BRACKET, SADDLE VALVE
4MAY W10552945
5MAY W10578095
6MAY W10496872
6BMAY W10496874
6AMAY W10496873
6CELECTRODE (RIGHT FRONT & CENTER)
7MAY W10790616
8AMAY W10831588
8VALVE, GAS (RIGHT FRONT)
8BVALVE, GAS (RIGHT REAR & CENTER)
9MAY W10661850
10BMAY W10515054
10ORIFICE (RIGHT REAR)
10CORIFICE (RIGHT FRONT)
10AORIFICE (LEFT FRONT)
11AMAY W10256046
11CLIP, SPRING ELECTRODE
12SEAL, SWITCH SHAFT
13MAY W10475148
