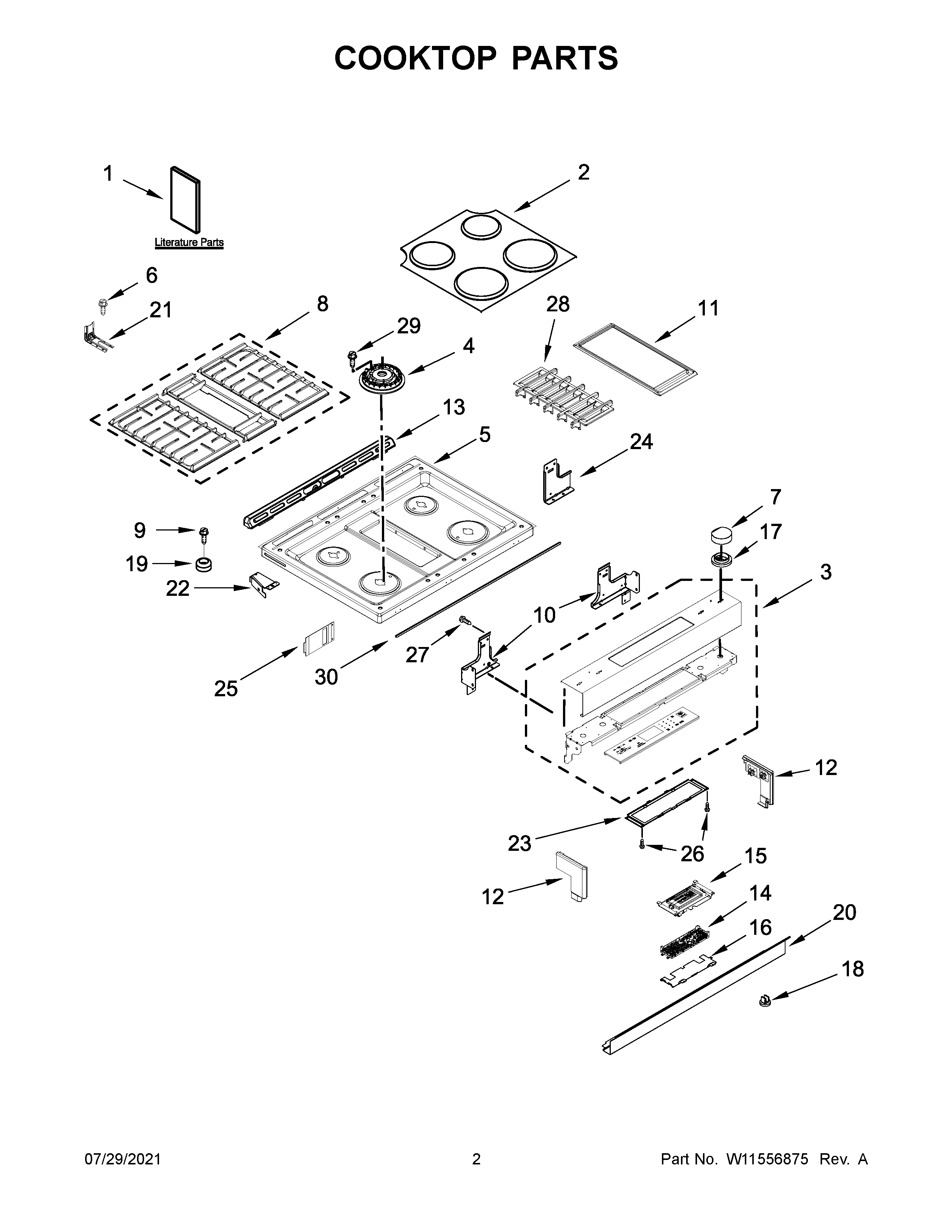

JDS1750FS1 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11175842 Whirlpool Suppressor
NI	W11451578 Whirlpool Wire Harness
NI	W11025616 Whirlpool Wire Harness
NI	W11198274 Whirlpool Wire Assembly
NI	W11176109 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
1B	QUICK START GUIDE (BURNER CAPS)
1C	GUIDE, QUICK START
1A	TECH SHEET
1	INSTRUCTIONS, INSTALLATION
1D	QUICK START GUIDE (FRENCH)
1E	W11643128 Whirlpool Template
2	WPW10300347 Whirlpool Burner Cap
3	W11039015 Whirlpool Control Panel
4A	W10556377 Whirlpool Head Burner
4	W11238353 Whirlpool Burner Head
4B	W10556381 Whirlpool Burner Head
5	W10803780 Whirlpool Cooktop
6	SCREW, ANTI-TIP KIT
7	WPW10505764 Whirlpool Knob
8	W11211507 Whirlpool Grate Assembly
9	WP3196557 Whirlpool Screw
10A	W10289169 Whirlpool Bracket Support
10	W10289170 Whirlpool Support Bracket
11	W10432544 Whirlpool Range Griddle
12A	W10557754 Whirlpool Endcap Panel
12	W10557751 Whirlpool Panel End Cap
13	W11170796 Whirlpool Vent Trim
14	W11295990-includeCORE Whirlpool W11295990 Refrigerator Electronic Control Board + Core
15	W11108634 Whirlpool Display
16	W10558372 Whirlpool Bracket Mounting
17	BEZEL-KNOB
18	W11025100 Whirlpool Insert
19	W11104127 Whirlpool Bumper Assembly
20	W10743281 Whirlpool Mounting Bracket
21	W11502257 Whirlpool Anchor Tip
22	W10162253 Whirlpool Mounting Bracket
22A	W10162252 Whirlpool Bracket Mounting
23	W10557780 Whirlpool Bracket Mounting
24	W10598048 Whirlpool Support Bracket
25	SHIELD, KEYPAD
26	SCREW, HANDLE (4)
27	WPW10067840 Whirlpool Screw
28	W10752102 Whirlpool Grille
29	W11241230 Whirlpool Screw
30	W10802441 Whirlpool Gasket
