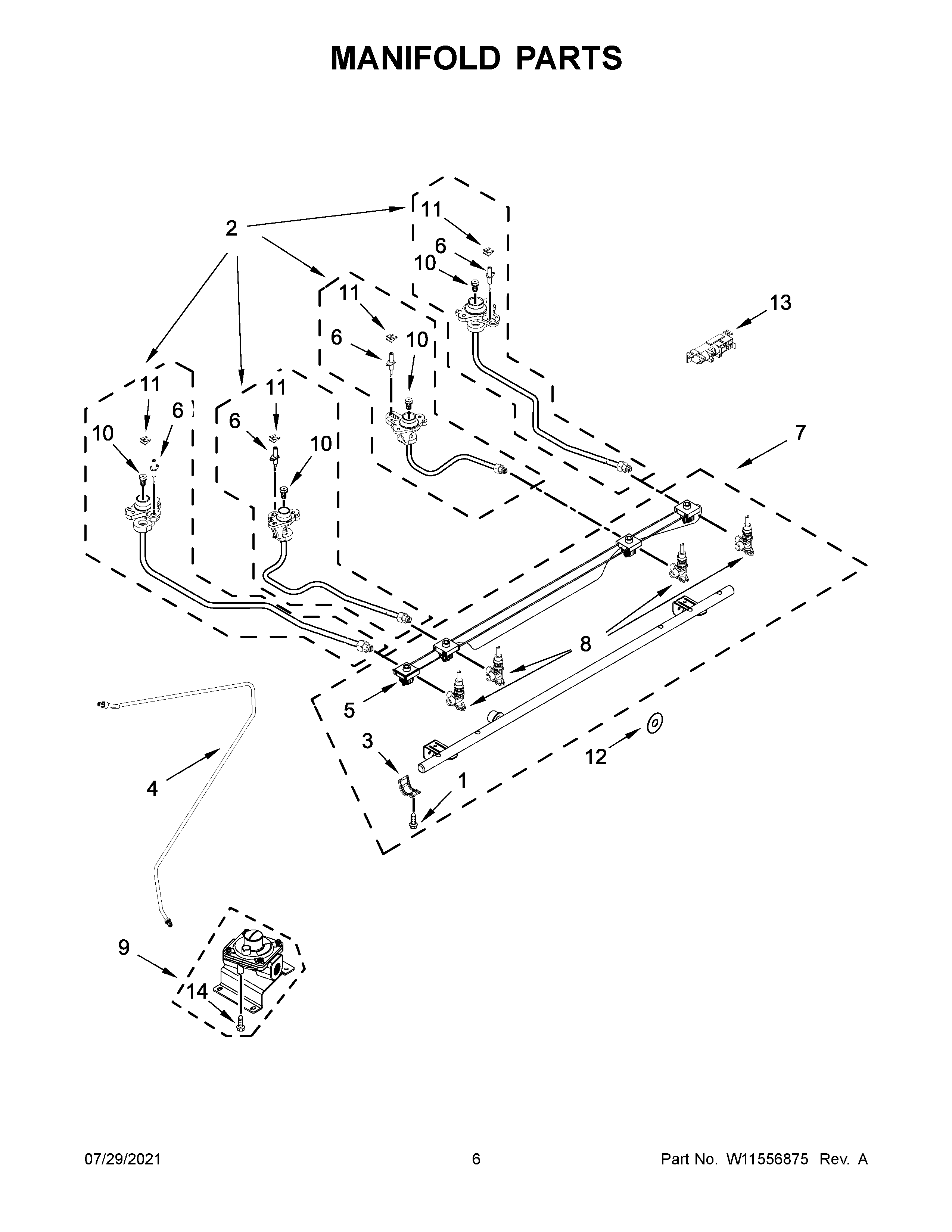

JDS1750FS1 04 – MANIFOLD PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	SPUD-ORFCE
NI	WPW10182767 Whirlpool Wire Tie
1	W11666001 Whirlpool Screw
2	W10552143 Whirlpool Orifice Holder
2B	W10552133 Whirlpool Orifice Holder
2C	W10552136 Whirlpool Orifice Holder
2A	W10552142 Whirlpool Orifice Holder
3	BRACKET, VALVE LF
4	W10552945 Whirlpool Gas Tubing
5	W10578095 Whirlpool Wire Harness
6C	W11611678 Whirlpool Surface Igniter
6B	ELECTRODE (LEFT REAR)
6A	W11447374 Whirlpool Surface Igniter
6	W11220383 Whirlpool Surface Igniter
7	W10790616 Whirlpool Manifold Pipe
8	W11223016 Whirlpool Burner Valve
8A	W10873136 Whirlpool Burner Valve
8B	W11163975 Whirlpool Burner Valve
9	W10661850 Whirlpool Regulator
10C	W10756981 Whirlpool Spud Orifice
10	W10821182 Whirlpool Orifice
10B	W11690133 Whirlpool Range Orifice Spud
10A	SPUD-ORFCE
11	W11190173 Whirlpool Clip
11A	W10256046 Whirlpool Clip
12	W10140571 Whirlpool Seal Switch
13	MODULE-SPK
14	SCREW
