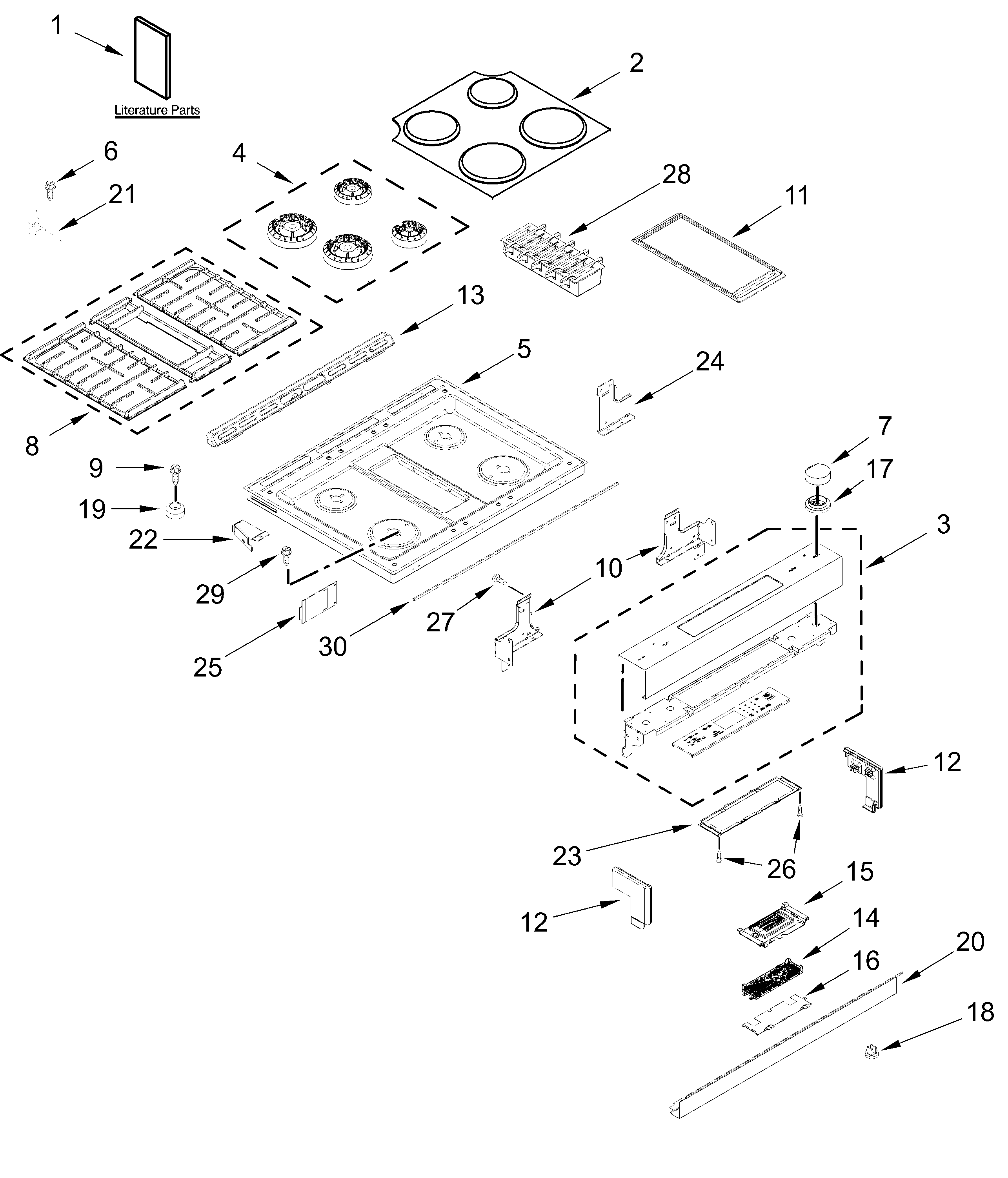

JDS1750ML0 COOKTOP PARTS

Products

Position	Product
	Cooktop (Stainless)
	KNOB (STAINLESS (ALL EXCEPT LEFT FRONT))
	BRACKET, SUPPORT (RIGHT)
	W11176109 Whirlpool Wire Harness
	W11605759 Whirlpool Burner Cap
	W10752102 Whirlpool Grille
	W11175842 Whirlpool Suppressor
	W11643128 Whirlpool Template
	W11198274 Whirlpool Wire Assembly
	W11647014 Whirlpool Knob Bezel
	W11451578 Whirlpool Wire Harness
	W11451474 Whirlpool Range Grate Kit
	W11679227 Whirlpool Control Panel
	Owners Manual
	Tech Sheet
	Dimension Guide
	Quick Start Guide
	W10557754 Whirlpool Endcap Panel
	W10557751 Whirlpool Panel End Cap
	W10743281 Whirlpool Mounting Bracket
	Control Guide
	W11025616 Whirlpool Wire Harness
	16515 Whirlpool Clip
	W10162252 Whirlpool Bracket Mounting
	FOLLOWING PARTS NOT ILLUSTRATED
	W11170796 Whirlpool Vent Trim
1	Literature Parts
2	Burner Cap Kit
3	Console
4	BURNR-HEAD
5	Cooktop
6	SCREW, ANTI-TIP KIT
7	Knob
8	Grate Kit
9	WP3196557 Whirlpool Screw
10	BRACKET,SUPPORT (LEFT)
11	W10432544 Whirlpool Range Griddle
12	Endcap
13	Trim, Vent
14	W11647015 Whirlpool Electronic Control Board + Core
15	W11108634 Whirlpool Display
16	W10558372 Whirlpool Bracket Mounting
17	Bezel
18	W11025100 Whirlpool Insert
19	W11690600 Whirlpool Bumper
20	Console, Lower Panel
21	W11502257 Whirlpool Anchor Tip
22	W10162253 Whirlpool Mounting Bracket
23	W10557780 Whirlpool Bracket Mounting
24	W10598048 Whirlpool Support Bracket
25	SHIELD, KEYPAD
26	SCREW, HANDLE (4)
27	WPW10067840 Whirlpool Screw
28	Grill, Air
29	W11241230 Whirlpool Screw
30	GASKET, CONSOLE AND COOKTOP
