JDS1750ML0 MANIFOLD PARTSadmin2025-04-26T11:52:17+00:00JDS1750ML0 MANIFOLD PARTS
Products

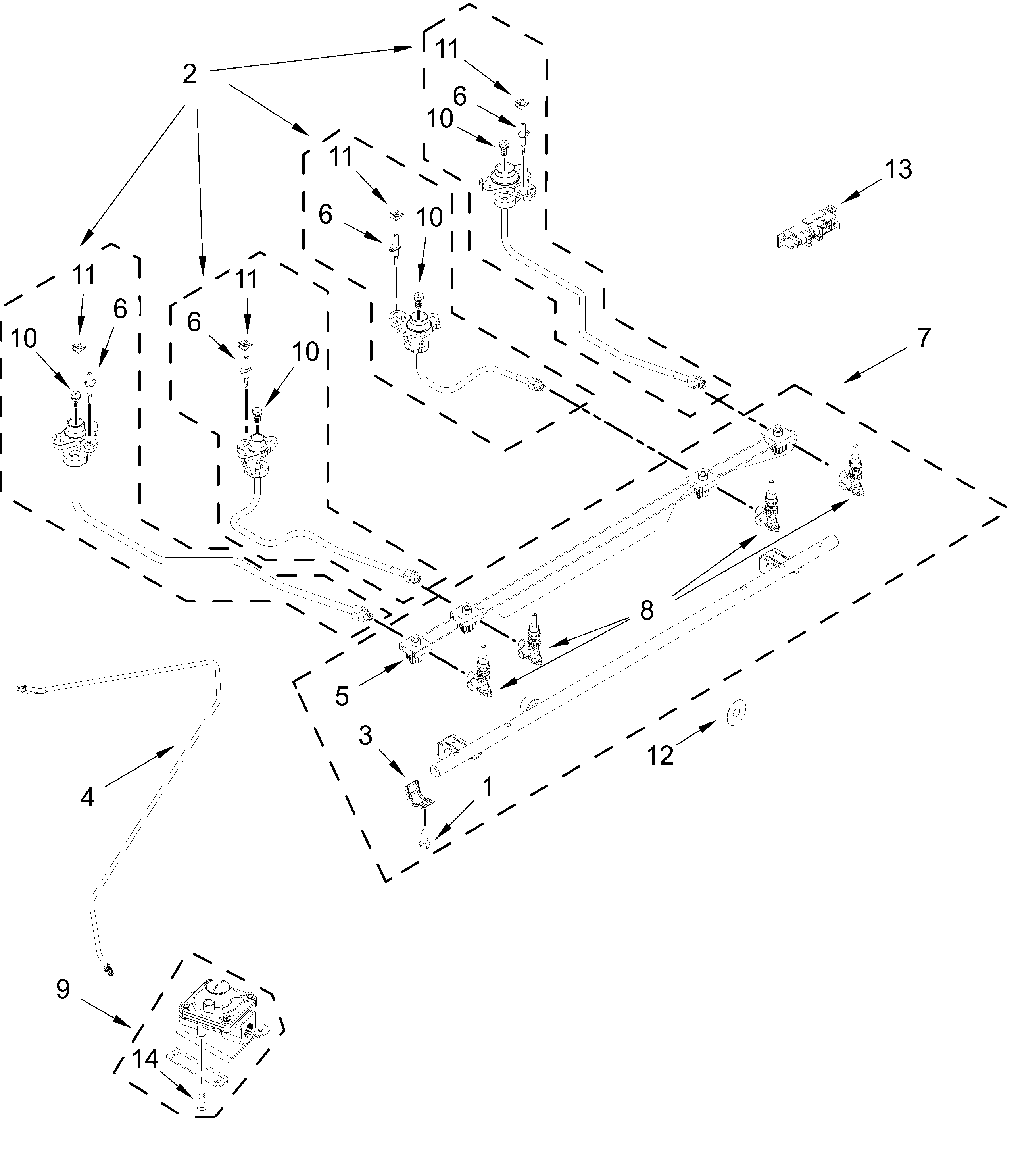

| Position | Product |
|---|
| FOLLOWING PARTS NOT ILLUSTRATED |
| SPUD-ORFCE |
| ORIFICE (18K) (LEFT FRONT, RIGHT FRONT AND CENTER) |
| (Right Front) |
| (Left Front) |
| (Left Front, Right Front) |
| (Right Rear) |
| (Left Rear) |
| W11661929 Whirlpool Surface Igniter |
| Orifice, Assembly (9.2K) |
| Orifice, Assembly (17K) |
| (Left Front, Left Rear, Right Front, Right Rear) |
| W10849714 Whirlpool Orifice Spud |
| W11643126 Whirlpool Surface Igniter |
| WPW10182767 Whirlpool Wire Tie |
| ORIFICE, ASSEMBLY (LEFT REAR) |
| W11666003 Whirlpool Range Surface Igniter |
| VALVE-BRNR |
| W11677633 Whirlpool Spud Orifice |
| W11620677 Whirlpool Burner Valve |
| 1 | W11577790 Whirlpool Screw Assembly |
| 2 | Orifice, Assembly (15K) |
| 3 | W10949105 Whirlpool Mounting Bracket |
| 4 | W10552945 Whirlpool Gas Tubing |
| 5 | W11596358 Whirlpool Wire Harness |
| 6 | W11661897 Whirlpool Range Surface Igniter |
| 7 | Manifold, Assembly |
| 8 | VALVE-BRNR |
| 9 | W10661850 Whirlpool Regulator |
| 10 | W10849717 Whirlpool Orifice Spud |
| 11 | W11684564 Whirlpool Clip Assembly |
| 12 | W11507167 Whirlpool Switch Seal |
| 13 | MODULE-SPK |
| 14 | SCREW |
