JDS1750ML1 02 – COOKTOP PARTS

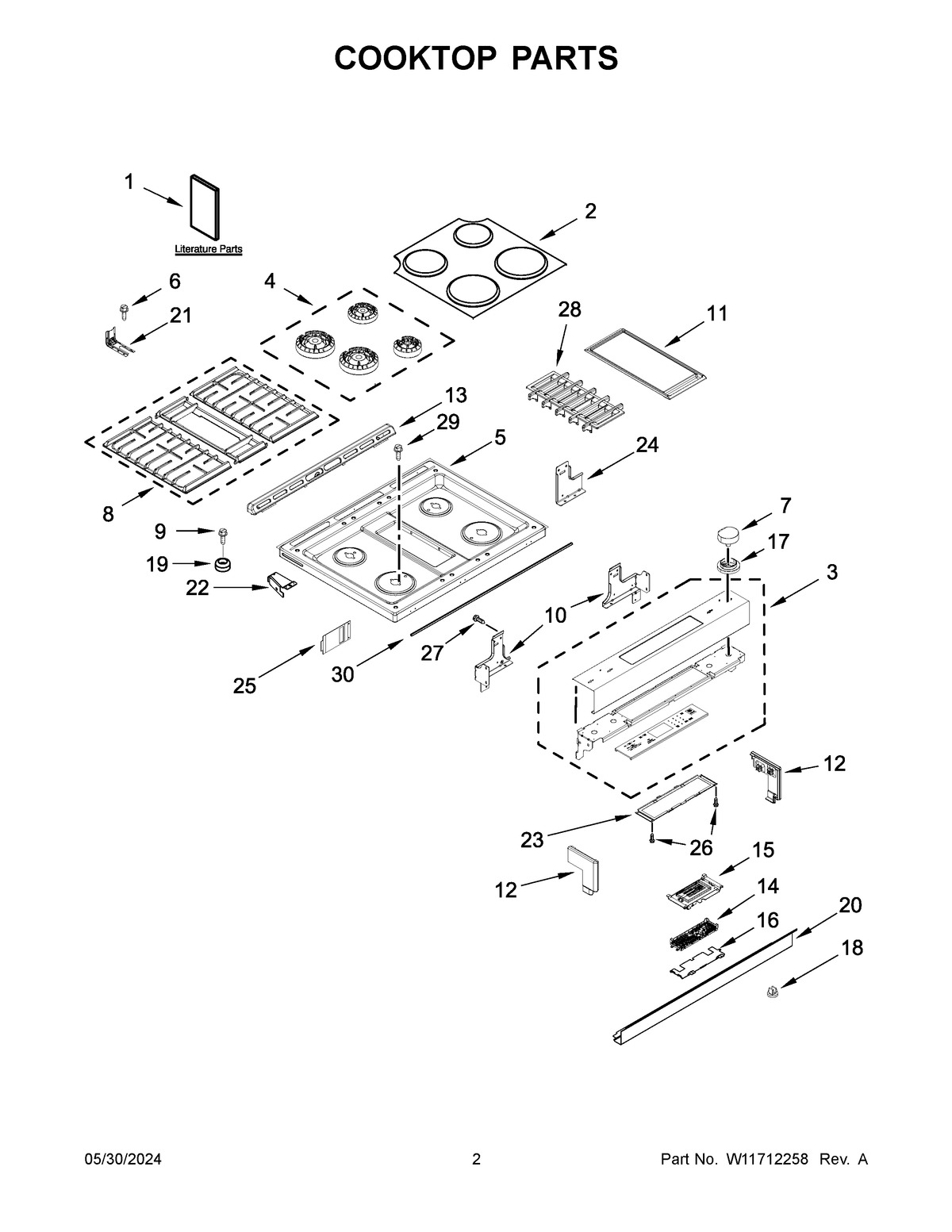

JDS1750ML1 02 – COOKTOP PARTS

Products

PositionProduct
NIFOLLOWING PARTS NOT ILLUSTRATED
NIW11198274 Whirlpool Wire Assembly
NIW11025616 Whirlpool Wire Harness
NIW11451578 Whirlpool Wire Harness
NIW11176109 Whirlpool Wire Harness
1DControl Guide
1BDimension Guide
1EW11643128 Whirlpool Template
1ATech Sheet
1Owners Manual
1CQuick Start Guide
2W11605759 Whirlpool Burner Cap
3W11679227 Whirlpool Control Panel
4BURNR-HEAD
5Cooktop (Stainless)
6SCREW, ANTI-TIP KIT
7KNOB (STAINLESS (ALL EXCEPT LEFT FRONT))
8W11451474 Whirlpool Range Grate Kit
9WP3196557 Whirlpool Screw
10ABRACKET, SUPPORT (RIGHT)
10BRACKET,SUPPORT (LEFT)
11W10432544 Whirlpool Range Griddle
12AW10557754 Whirlpool Endcap Panel
12W10557751 Whirlpool Panel End Cap
13W11170796 Whirlpool Vent Trim
14W11647015 Whirlpool Electronic Control Board + Core
15W11108634 Whirlpool Display
16W10558372 Whirlpool Bracket Mounting
17BEZEL-KNOB
18W11025100 Whirlpool Insert
19W11690600 Whirlpool Bumper
20W10743281 Whirlpool Mounting Bracket
21W11502257 Whirlpool Anchor Tip
22W10162253 Whirlpool Mounting Bracket
22AW10162252 Whirlpool Bracket Mounting
23W10557780 Whirlpool Bracket Mounting
24W10598048 Whirlpool Support Bracket
25SHIELD, KEYPAD
26SCREW, HANDLE (4)
27WPW10067840 Whirlpool Screw
28GRILL, AIR (BLACK)
29W11241230 Whirlpool Screw
30GASKET, CONSOLE AND COOKTOP
