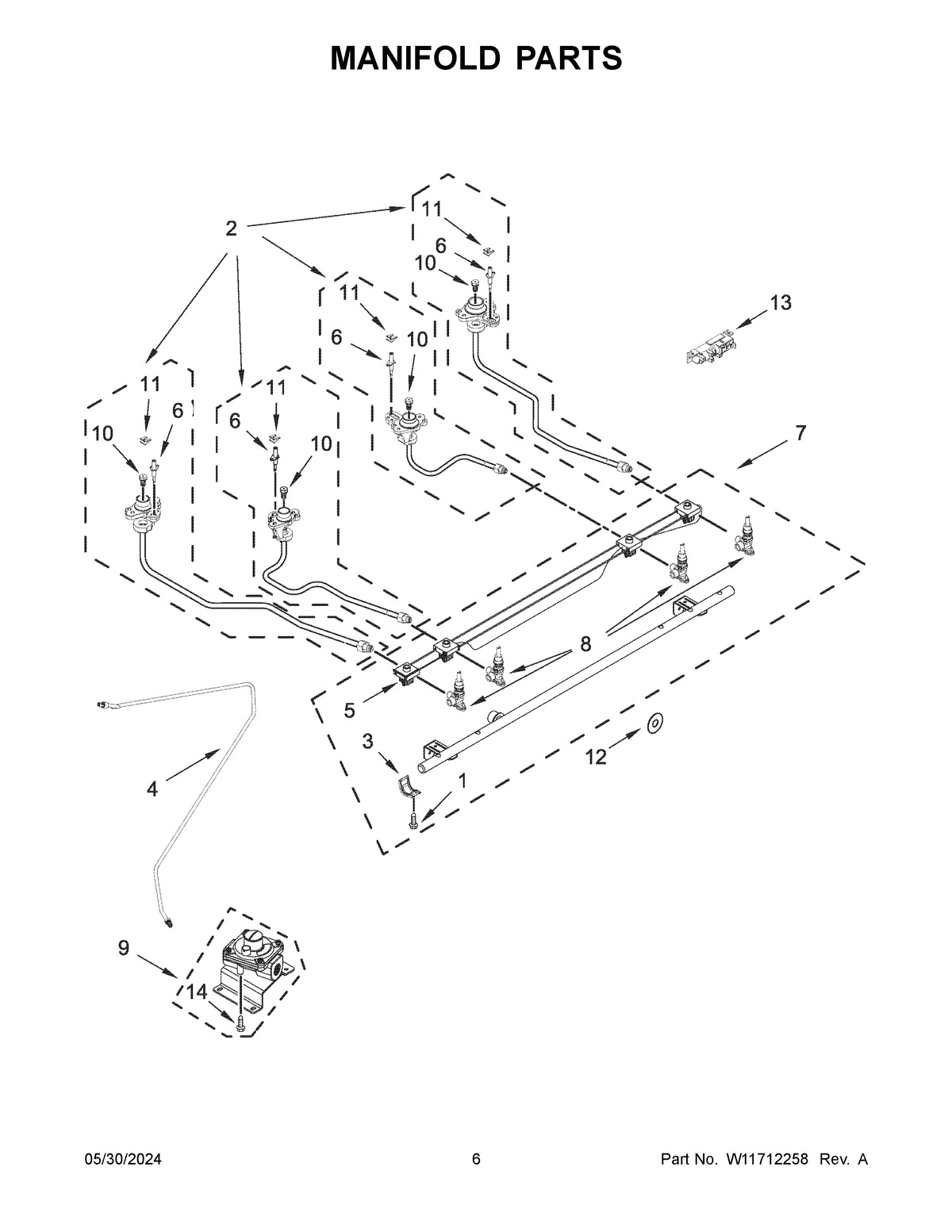

JDS1750ML1 04 – MANIFOLD PARTS

Products

PositionProduct
NIFOLLOWING PARTS NOT ILLUSTRATED
NIWPW10182767 Whirlpool Wire Tie
NISPUD-ORFCE
1W11577790 Whirlpool Screw Assembly
2COrifice, Assembly (17K)
2Orifice, Assembly (15K)
2AOrifice, Assembly (9.2K)
2BORIFICE, ASSEMBLY (LEFT REAR)
3W10949105 Whirlpool Mounting Bracket
4W10552945 Whirlpool Gas Tubing
5W11596358 Whirlpool Wire Harness
6AW11643126 Whirlpool Surface Igniter
6BW11666003 Whirlpool Range Surface Igniter
6CW11661929 Whirlpool Surface Igniter
6W11661897 Whirlpool Range Surface Igniter
7Manifold, Assembly
8BW11620677 Whirlpool Burner Valve
8VALVE-BRNR
8AVALVE-BRNR
9W10661850 Whirlpool Regulator
10BORIFICE (18K) (LEFT FRONT, RIGHT FRONT AND CENTER)
10AW10849714 Whirlpool Orifice Spud
10W10849717 Whirlpool Orifice Spud
10CW11677633 Whirlpool Spud Orifice
11W11684564 Whirlpool Clip Assembly
12W11507167 Whirlpool Switch Seal
13MODULE-SPK
14SCREW
