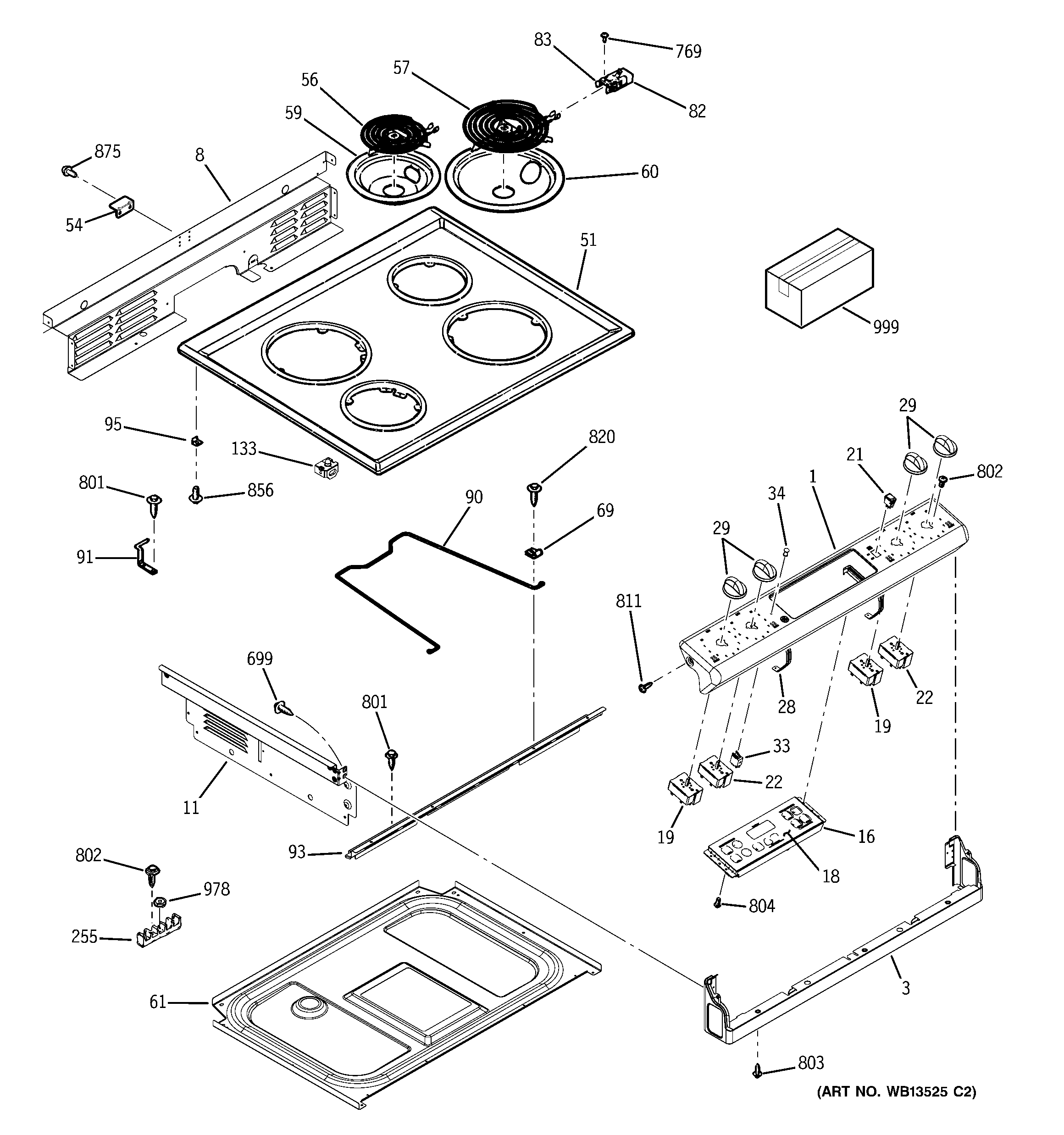

JDS28CK1CC CONTROL PANEL & COOKTOP

Products

Position	Product
1	GEN WB36T10794
3	GEN WB36T10793
8	GEN WB07K10137
11	WB07T10474 GE Oven Extension Side Left
11	WB07T10473 GE Oven Right Side Extension
16	CONTROL OVEN TO9 (ELEC)
18	GEN WB27T10657
19	WB24T10025 SWITCH INFIN(2500W)
21	WB24T10053 GE Oven Rocker Switch
22	WB24T10029 GE Oven Infinite Burner Switch
28	WB02T10267 GE Oven Control Bracket
29	GEN WB03T10234
33	WB25K10010 GE Oven Light Indicator Pilot
33	WB25T10039 GE Oven Light Indicator
34	LENS
34	WB25T10043 GE Oven Lens
51	MAINTOP BQ
54	WB02X10739 GE Oven Anti-Tip Bracket
56	WB30X24401 GE Oven Surface Element Coil
57	WB30T10074 GE Oven 8" Burner Unit 2600W
59	WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
60	WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
61	WB64T10052 GE Bottom Burn Box
69	WB2M87 GE Oven Support Rod Clamp
82	WB17T10006 GE Oven Burner Receptacle Block
83	RECEPTACLE W/CLIP
90	WB02T10268 GE Main Top Support Rod
91	WB14T10028 GE Maintop Hinge
91	WB14T10027 GE Maintenance Top Right
93	WB34T10105 GE Oven Wire Cover
95	WB10X255 GE Oven Hinge Bracket
133	GEN WB01T10096
133	WB01T10052 GE Oven Foam Tape
133	WB01T10022 GE Oven Door Bumper
133	WB03T10156 GE Oven Door Bumper
255	WB17K10001 GE Oven Block Terminal
699	WB1M1 GE Oven Screw
769	WB1X500D GE Oven Screw Package
802	GEN WB01K5123
803	WB01T10095 GE Oven Screw 10-32 HWH I 13/16
804	WB1X681 GE Oven Screw
811	WB01T10094 GE Oven Screw 8-32 PN 1/2
820	WB1X1424D GE Oven Screw Package
856	WB1X1293 GE Oven Screw
875	WH2X930 GE Screw
978	WB1X1259 GE Hex Nut
999	GEN 31-10514
999	GEN 31-10459
999	GEN 31-10595
999	GEN 31-14264
999	GEN 49-80254
