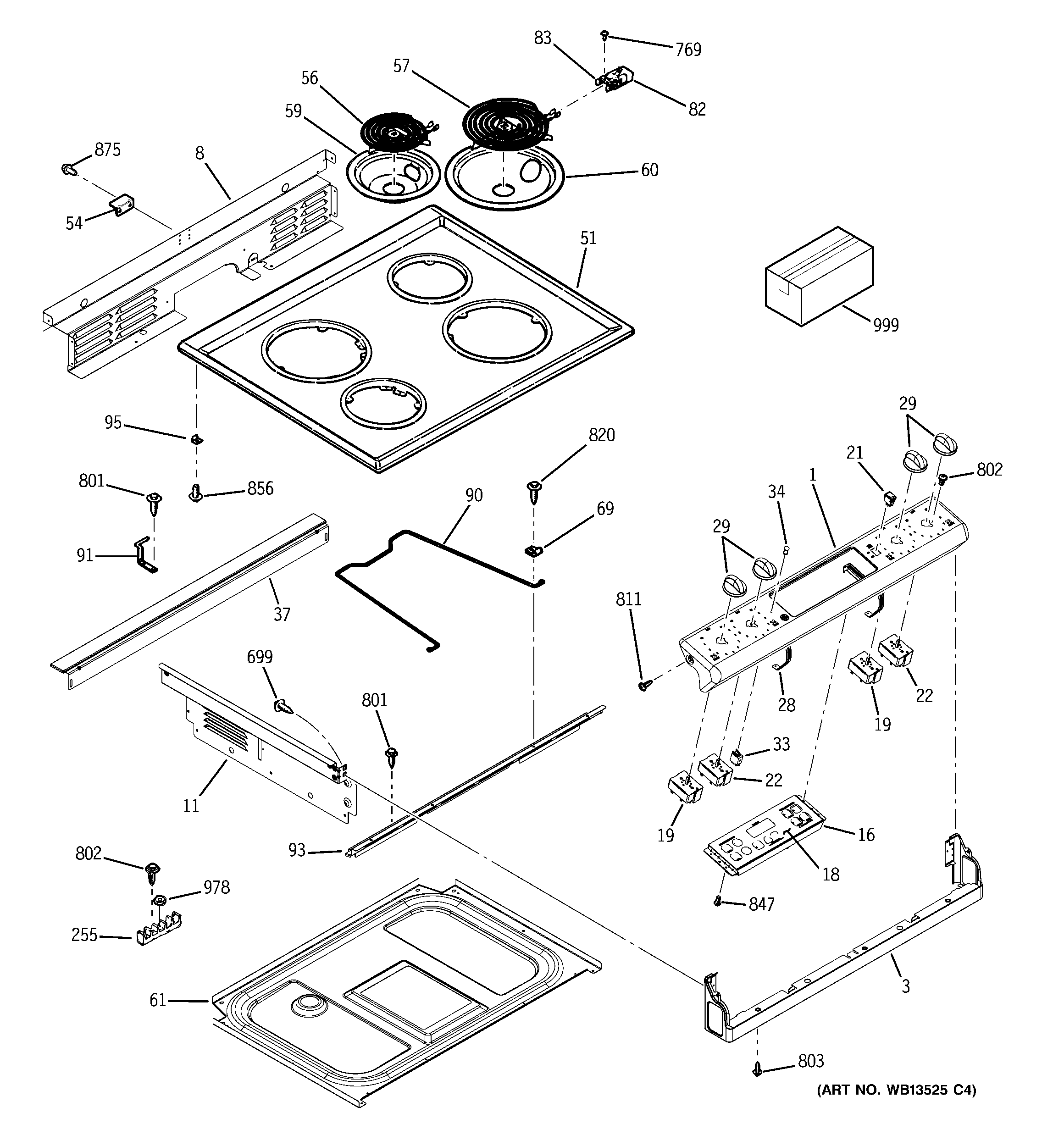

JDS28DN1WW CONTROL PANEL & COOKTOP

Products

Position	Product
1	GEN WB36T11195
3	WB36T10795 GE Oven Bottom Control Panel
8	GEN WB07K10137
11	WB07T10473 GE Oven Right Side Extension
11	WB07T10474 GE Oven Extension Side Left
16	CONTROL OVEN TO9 (ELEC)
18	WB27T11090 GE Oven Graphics Faceplate Assembly
19	WB24T10029 GE Oven Infinite Burner Switch
21	WB24T10043 GE Oven Rocker Switch
22	WB24T10025 SWITCH INFIN(2500W)
28	WB02T10267 GE Oven Control Bracket
29	WB03T10282 GE Oven Infinite Knob (White)
33	WB25K10010 GE Oven Light Indicator Pilot
34	LENS
37	GEN WB07K10157
51	WB62T10427 GE Oven Main Top
54	WB02X10739 GE Oven Anti-Tip Bracket
56	WB30X24401 GE Oven Surface Element Coil
57	WB30T10074 GE Oven 8" Burner Unit 2600W
59	WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
60	WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
61	WB64T10052 GE Bottom Burn Box
69	WB2M87 GE Oven Support Rod Clamp
82	WB17T10006 GE Oven Burner Receptacle Block
83	RECEPTACLE W/CLIP
90	WB02T10268 GE Main Top Support Rod
91	WB14T10028 GE Maintop Hinge
91	WB14T10027 GE Maintenance Top Right
93	WB34T10105 GE Oven Wire Cover
95	WB10X255 GE Oven Hinge Bracket
255	WB17K10001 GE Oven Block Terminal
699	WB1M1 GE Oven Screw
769	WB1X500D GE Oven Screw Package
802	GEN WB01K5123
803	WB01T10095 GE Oven Screw 10-32 HWH I 13/16
811	WB01T10094 GE Oven Screw 8-32 PN 1/2
820	WB1X1424D GE Oven Screw Package
847	WB1X1118 GE Oven Screw 6-32T
847	GEN WB01K5161
847	WB1K5167 GE Screw 8-18 X 3/8"
856	WB1X1293 GE Oven Screw
875	WH2X930 GE Screw
978	WB1X1259 GE Hex Nut
999	GEN 31-10651
999	GEN 31-10459
999	GEN 31-10595
999	GEN 31-14264
999	GEN 49-80547
