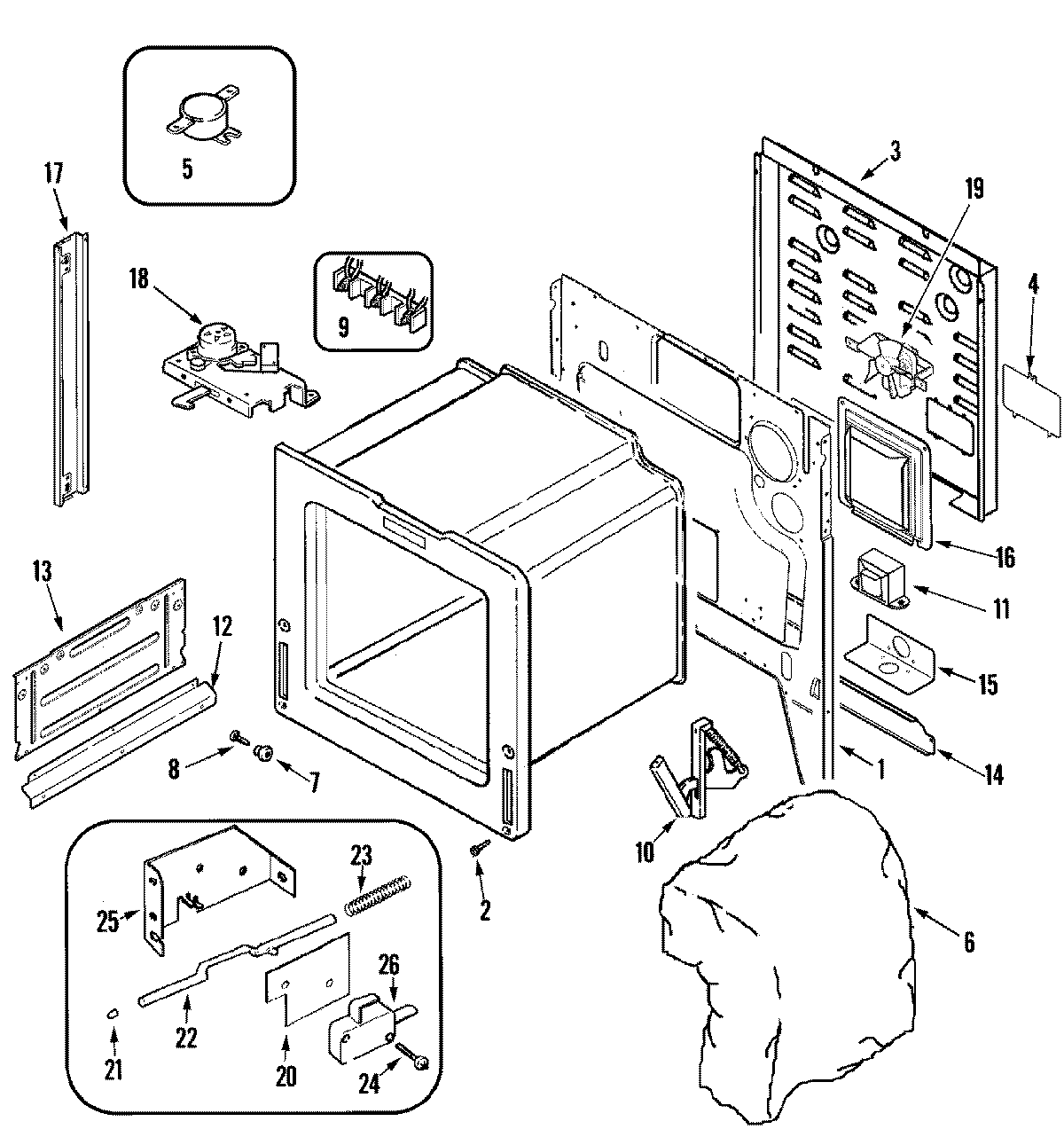

| 1 | MAY 74005721 |
| 2 | SCREW (10-24X5/16-NI) |
| 3 | 4005F810-51 Whirlpool Access Cover |
| 4 | COVER, TERMINAL BLOCK |
| 5 | WP71001844 Whirlpool Thermostat |
| 6 | WP74010942 Whirlpool Insulation |
| 6 | MAY 74005771 |
| 6 | MAY 74003503 |
| 7 | MAY 8004P024-60 |
| 8 | W11693756 Whirlpool Screw Assembly |
| 9 | MAY 74002230 |
| 9 | MAY 74002305 |
| 9 | MAY 74002306 |
| 9 | MAY 74002301 |
| 9 | WPW10245259 Whirlpool Terminal Block |
| 9 | MAY 74002303 |
| 10 | 74011142 Whirlpool Stove Range Oven Door Hinge and Spring |
| 11 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 11 | MAY 74005416 |
| 12 | MAY 74006103 |
| 12 | MAY 74005728 |
| 13 | MAY 74006869 |
| 14 | MAY 74005722 |
| 15 | W10190166 Whirlpool Service Bracket |
| 16 | MAY 74004348 |
| 17 | MAY 74005781 |
| 18 | MAY 74005675 |
| 18 | 74003975 Whirlpool Screw P1 (8ABX3/8-BLK) |
| 19 | MAY 74004947 |
| 19 | SCREW |
| 20 | MAY 74001872 |
| 21 | MAY 74001631 |
| 22 | ROD, DOOR LIGHT SWITCH |
| 24 | MAY 7101P330-60 |
| 25 | BRACKET, SWITCH ACTUATOR |
| 26 | MAY 74001802 |
