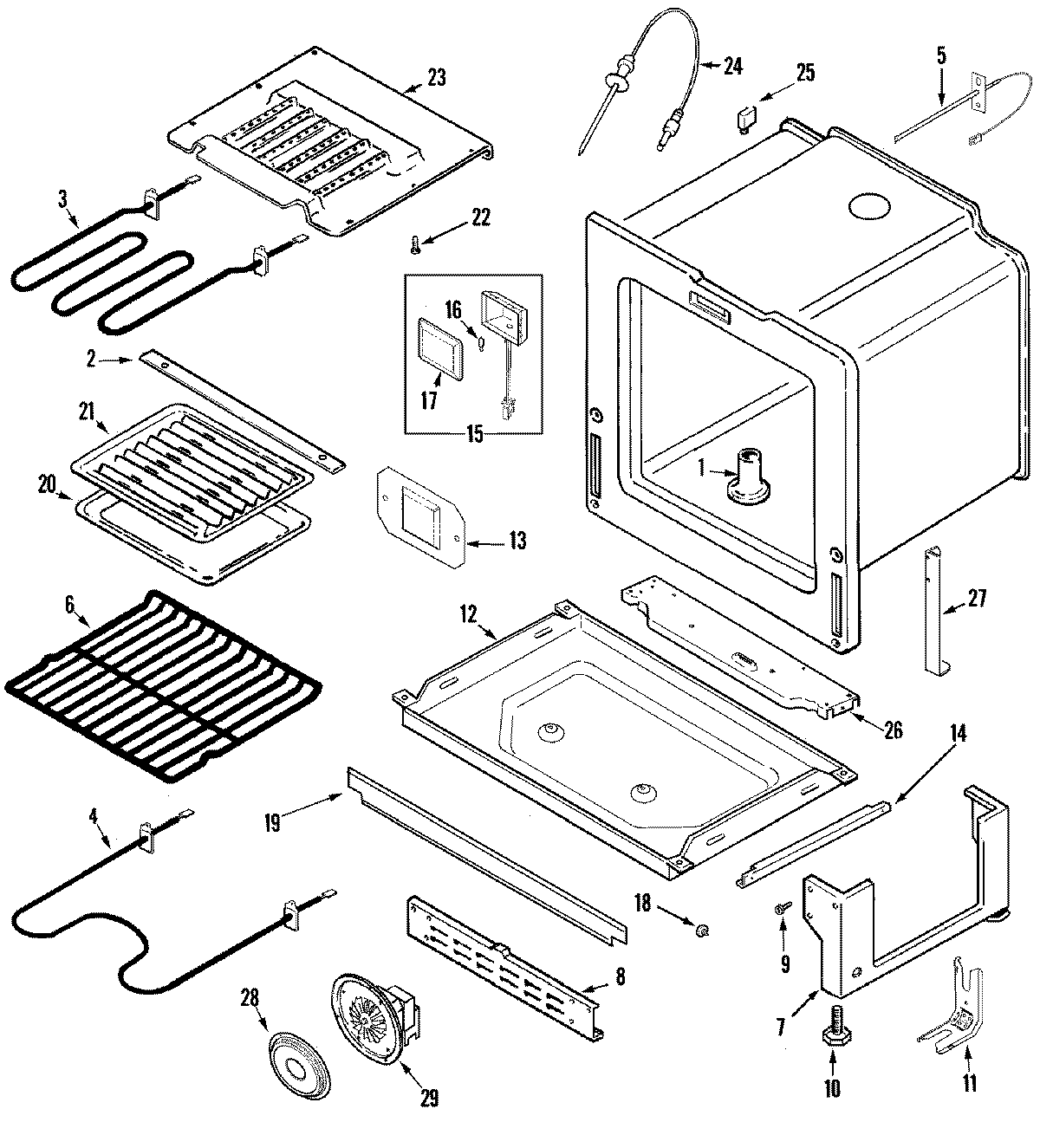

JDS8850AAQ 04 – OVEN/BASE

JDS8850AAQ 04 – OVEN/BASE

Written by

in

JDS8850AAQ 04 – OVEN/BASE

Products

PositionProduct
1MAY 74005720
2MAY 74003563
2WP400021-1 Whirlpool Screw
3W11676350 Whirlpool Broil Element
4WP74010750 Whirlpool Oven Bake Element
512001656 Whirlpool Range Oven Temperature Sensor
6WPW10282492 Whirlpool Oven Rack
7MAY 74005772
8MAY 4020F001-80
10W11665456 Whirlpool Range Level Foot
11WP7101P485-60 Whirlpool Anchor Tip
11WP3801F656-51 Whirlpool Range Anti-Tip Bracket
12RETAINER, INSULATION (BOTTOM)
13MAY 74005777
14RUNNER, DRAWER
15MAY 74011220
15MAY 74005773
16NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
16W10886919 Whirlpool Light Bulb
17WP74004607 Whirlpool Light Lens
18WP74004078 Whirlpool Door Roller
18SHAFT, STORAGE DRAWER ROLLER
1874005230 Whirlpool Oven Lock Nut (8-32)
19WP74009541 Whirlpool Screw Assembly
19MAY 74005778
20MAY Y3401F02019
21MAY Y3413F01619
23MAY 74003564
24WP71001870 Whirlpool Temperature Probe Sensor
25MAY 74009649
25MAY Y703356
25MAY 71001863
26MAY 74005464
26W10080180 Whirlpool Nut
26MAY 7101P068-60
27SCREW
27MAY 74004780
28COVER, CONVECT
29MAY 74006807
