JDS8850AAQ 05 – TOP ASSEMBLY & CONTROL – Aparts

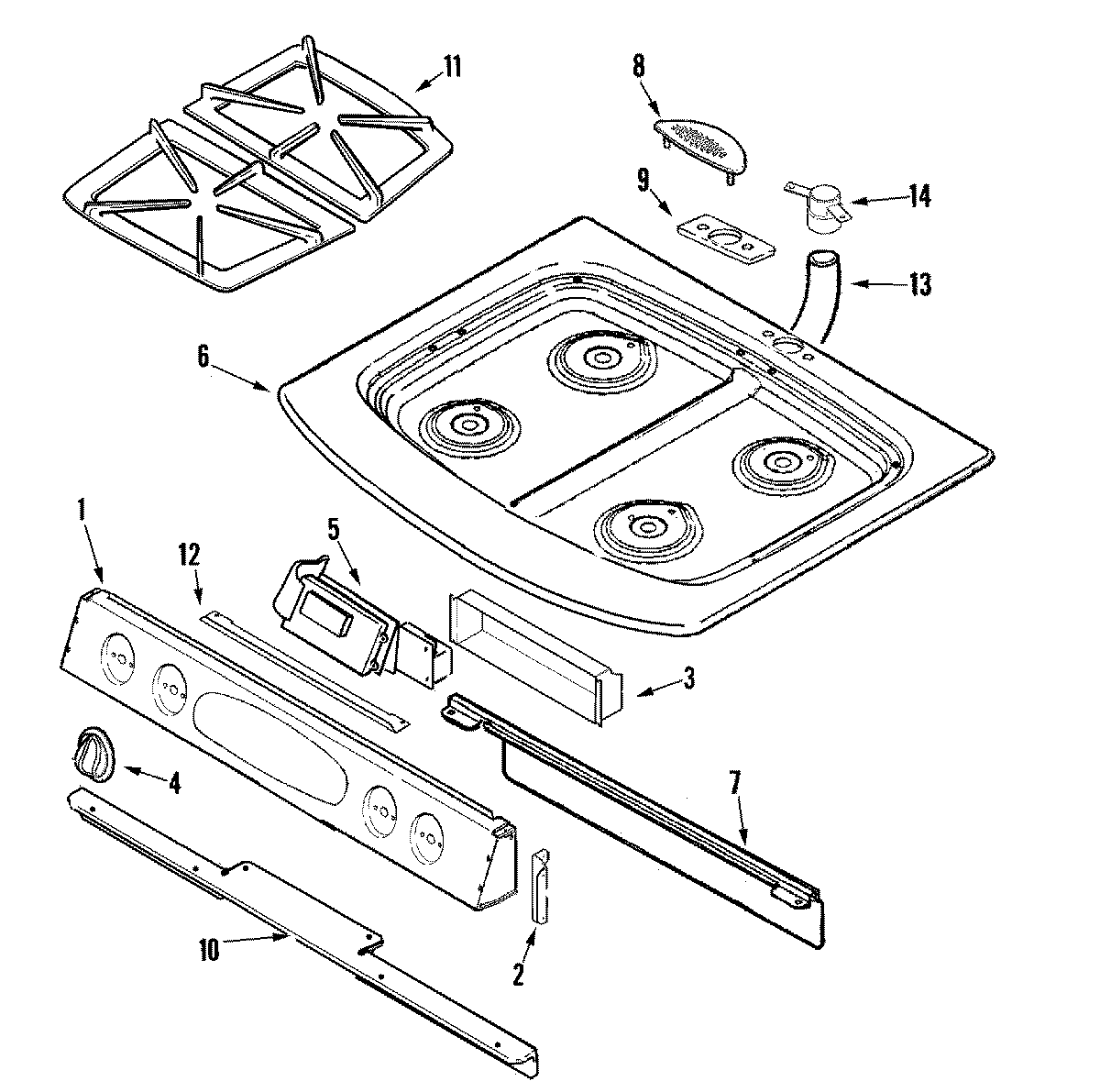

JDS8850AAQ 05 – TOP ASSEMBLY & CONTROL

Products

Position	Product
1	MAY 74007245
1	MAY 71003201
2	MAY 74005729
2	SCREW (8ABX1/2``-BLK)
3	MAY 74005755
4	MAY 74006009
5	MAY 74007066
5	MAY 74007240
5	MAY 74006171
5	MAY 74005873
5	MAY 74009290
5	MAY 74009292
5	MAY 74007369
5	MAY 74009315
5	MAY 74011565
6	MAY 74007249
7	MAY 74005999
7	SCREW
8	MAY 74005782
9	MAY Y04100462
10	SCREW (8BX3/8-NI)
10	MAY 74005756
11	MAY 74006015
11	MAY 74006012
12	MAY 74005877
13	MAY 74007246
14	TUBE, VENT (UPR)
14	SCREW
15	MAY 71003508
15	MAY 74006684
15	MAY 74007136
