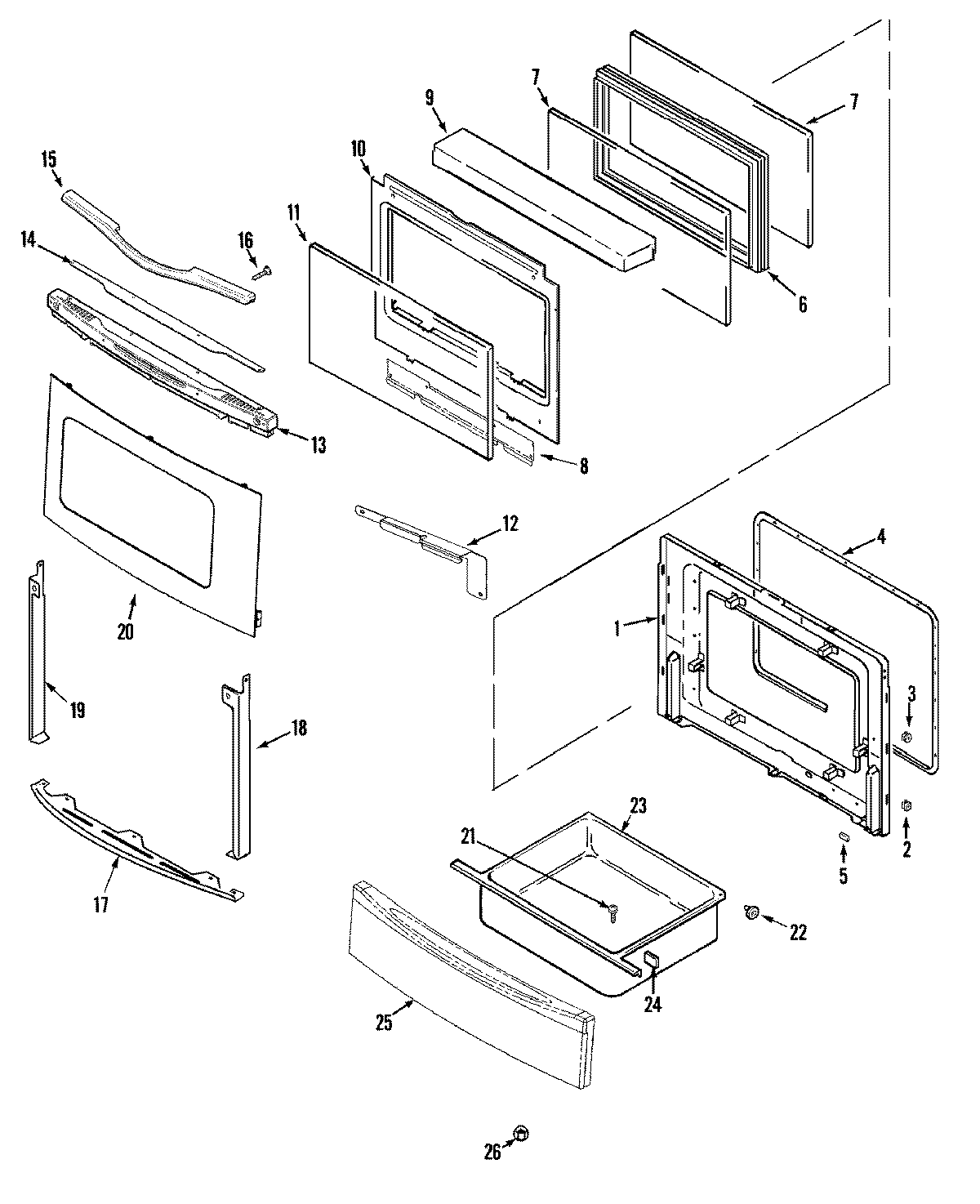

JDS8850AAS 02 – DOOR/DRAWER (STL)

JDS8850AAS 02 – DOOR/DRAWER (STL)

Written by

in

JDS8850AAS 02 – DOOR/DRAWER (STL)

Products

PositionProduct
1MAY 74003642
2NUT, SNAP (ROUND-WHT)
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8MAY 74007215
9INSULATION, OVEN DOOR
10MAY 74003648
11MAY 74007214
12MAY 74007205
12MAY 74007206
12MAY 74001280
13MAY 74005700
14MAY 74005704
14SCREW (8ABX1/2“-BLK)
15MAY 74005698
16MAY 71003275
17MAY 74007207
17MAY 74005763
17SCREW
18MAY 74005693
19WP98008545 Whirlpool Screw
19MAY 74005695
20MAY 74007211
21WP7101P072-60 Whirlpool Screw
22WP488130 Whirlpool Air Conditioner Nut
22MAY 74003566
22SHAFT, STORAGE DRAWER ROLLER
23MAY 71003042
24WP74005546 Whirlpool RU Spacer
25MAY 74007210
26WPW10131078 Whirlpool Nut Assembly
2774007237 Whirlpool Spacer
