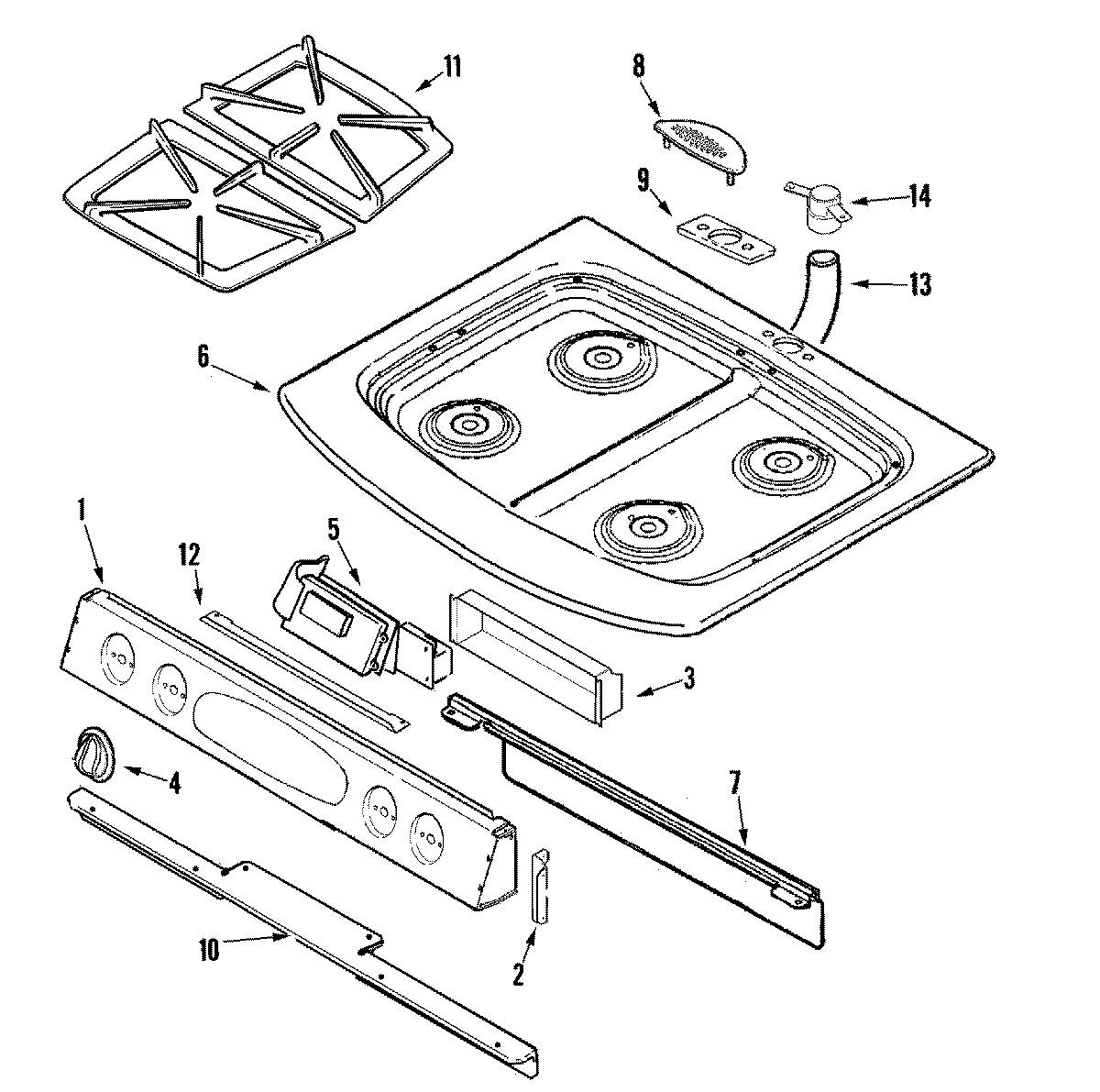

JDS8850AAS 05 – TOP ASSEMBLY & CONTROL
Written by
in
JDS8850AAS 05 – TOP ASSEMBLY & CONTROL
Products
Position
Product
1
MAY 74007239
1
MAY 71003201
2
MAY 74005729
2
SCREW (8ABX1/2“-BLK)
3
MAY 74005755
4
MAY 74006008
5
MAY 74007240
5
MAY 74006171
5
MAY 74007066
5
MAY 74009290
5
MAY 74005873
5
MAY 74009292
5
MAY 74007369
5
MAY 74009315
5
MAY 74011565
6
MAY 74007247
7
SCREW
7
MAY 74005999
8
MAY 74005757
9
MAY Y04100462
10
SCREW (8BX3/8-NI)
10
MAY 74005756
11
MAY 74006014
11
MAY 74006011
12
MAY 74005877
13
MAY 74007246
14
SCREW
14
TUBE, VENT (UPR)
15
MAY 71003508
15
MAY 74007136
15
MAY 74006684
←
