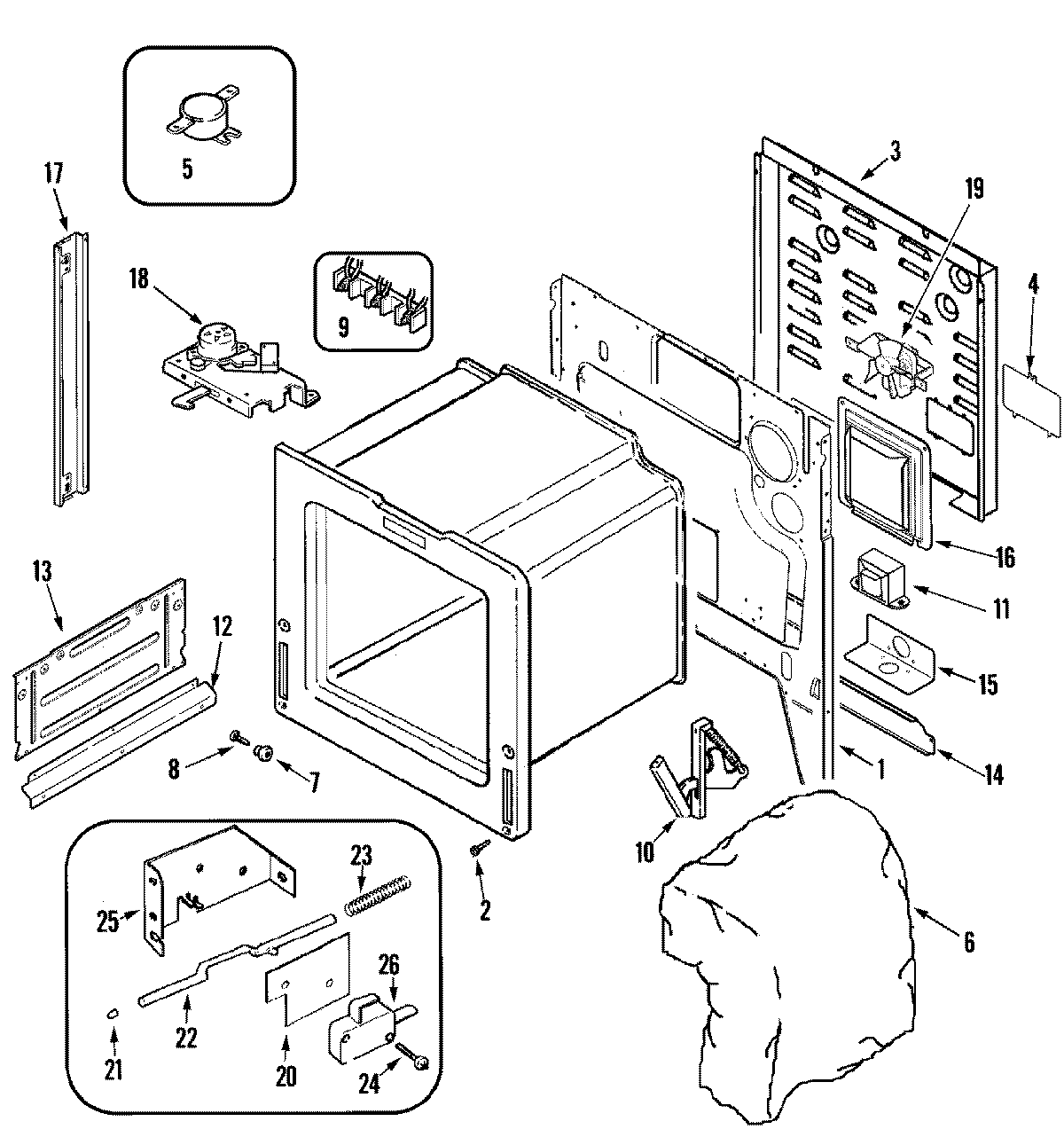

JDS8850AAW 01 – BODY

JDS8850AAW 01 – BODY

Written by

in

JDS8850AAW 01 – BODY

Products

PositionProduct
1MAY 74005721
2SCREW (10-24X5/16-NI)
34005F810-51 Whirlpool Access Cover
4COVER, TERMINAL BLOCK
5WP71001844 Whirlpool Thermostat
6WP74010942 Whirlpool Insulation
6MAY 74005771
6MAY 74003503
7MAY 8004P024-60
8W11693756 Whirlpool Screw Assembly
9MAY 74002230
9MAY 74002305
9MAY 74002306
9MAY 74002301
9WPW10245259 Whirlpool Terminal Block
9MAY 74002303
1074011142 Whirlpool Stove Range Oven Door Hinge and Spring
11NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
11MAY 74005416
12MAY 74006103
12MAY 74005728
13MAY 74006869
14MAY 74005722
15W10190166 Whirlpool Service Bracket
16MAY 74004348
17MAY 74004182
18MAY 74005675
1874003975 Whirlpool Screw P1 (8ABX3/8-BLK)
19MAY 74004947
19SCREW
20MAY 74001872
21MAY 74001631
22ROD, DOOR LIGHT SWITCH
24MAY 7101P330-60
25BRACKET, SWITCH ACTUATOR
26MAY 74001802
