JDS8850AAW 02 – DOOR/DRAWER

JDS8850AAW 02 – DOOR/DRAWER

Written by

in

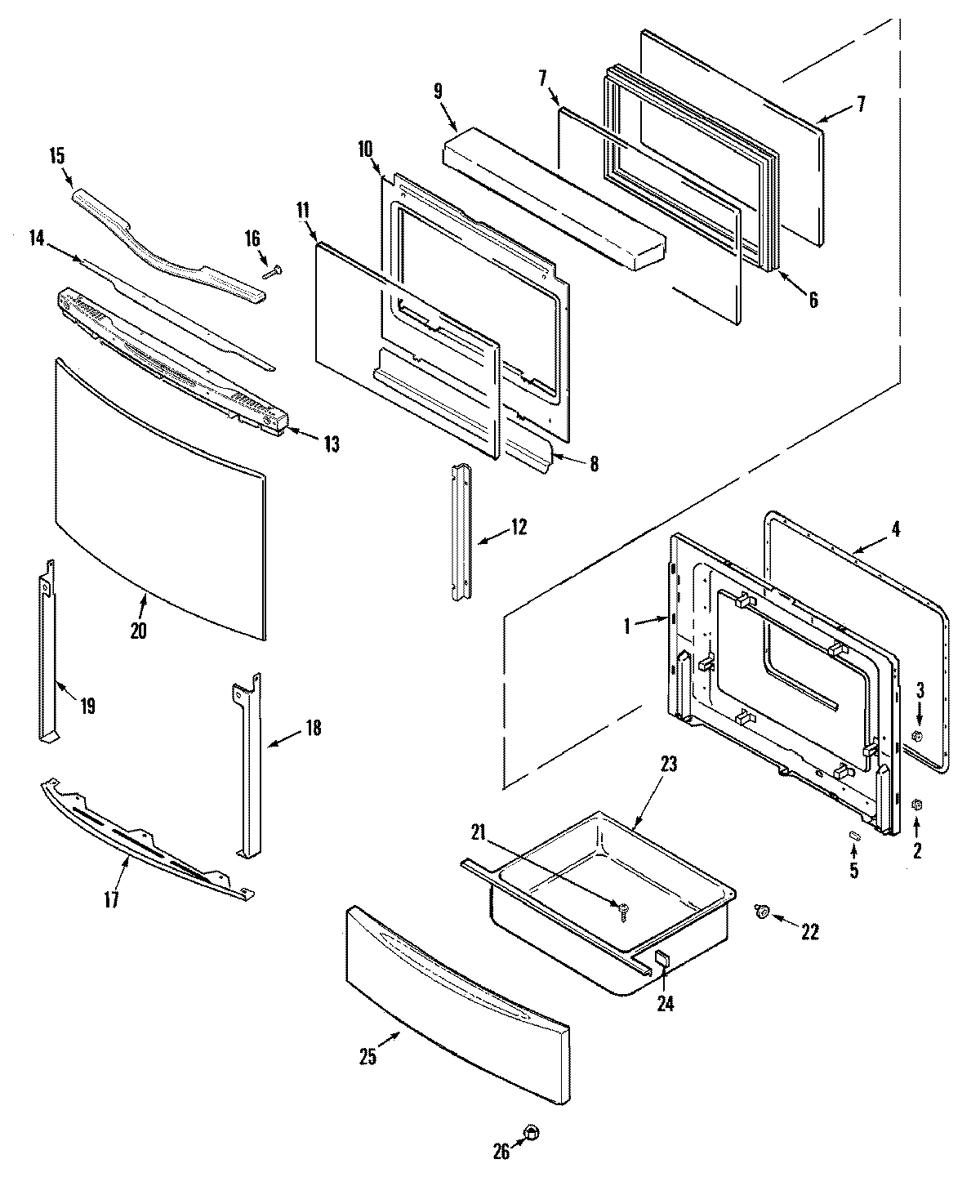

JDS8850AAW 02 – DOOR/DRAWER

Products

PositionProduct
1MAY 74003642
2NUT, SNAP (ROUND-WHT)
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8MAY 74005761
9INSULATION, OVEN DOOR
10MAY 74003648
11MAY 74005774
12MAY 74003650
13MAY 74005699
14MAY 74005703
15MAY 74005697
16MAY 71003275
17MAY 74005763
17SCREW
18MAY 74005694
19WP98008544 Whirlpool Screw Assembly
19MAY 74005696
20MAY 74005717
21WP7101P072-60 Whirlpool Screw
22WP488130 Whirlpool Air Conditioner Nut
22SHAFT, STORAGE DRAWER ROLLER
22MAY 74003566
23MAY 71003042
24WP74005546 Whirlpool RU Spacer
25MAY 74005691
26WPW10131078 Whirlpool Nut Assembly
2774007237 Whirlpool Spacer
