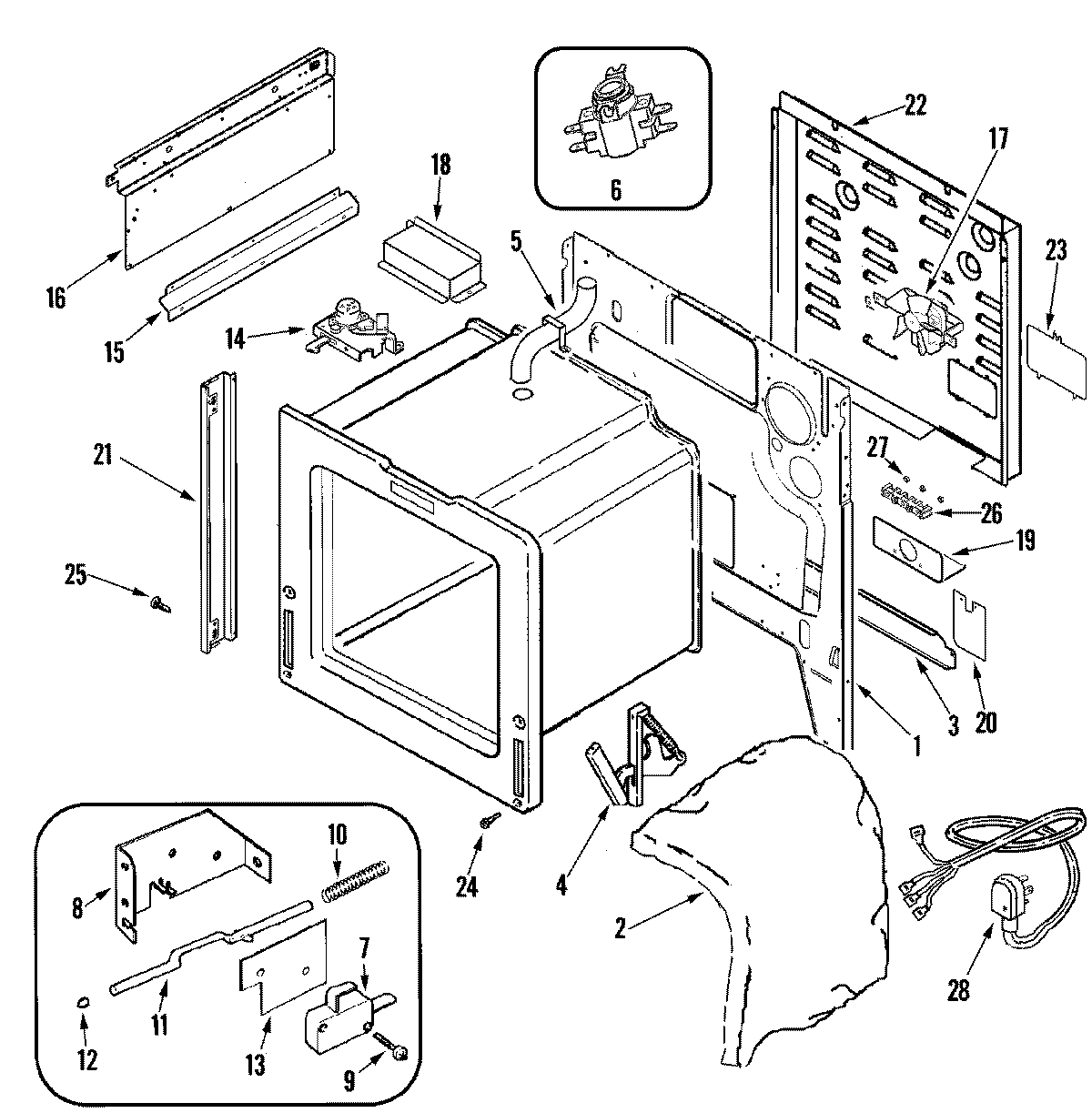

JDS8850BDB 01 – BODY

Products

Position	Product
1	BACK, MAIN
2	INSULATION, WRAPPER
3	EXTENSION, MAIN BACK
4	74011475 Whirlpool Range Oven Door Hinge Assembly
5	MAY 74010817
5	TUBE, VENT
6	74008265 Whirlpool Oven High Limit Thermostat
7	SWTCH-LITE
7	WP74008263 Whirlpool Door Switch
8	BRACKET, SWITCH ACTUATOR
9	MAY 22002368
11	ROD, DOOR LIGHT SWITCH
12	MAY 74001631
13	MAY 74008264
14	74010819 Whirlpool Latch Assembly
15	EXTENSION, HEAT SHEILD
16	PANEL, SHIELD (LT)
16	2618F206-51 Whirlpool Panel
17	WPW10586440 Whirlpool Blower Fan
18	COVER, DOOR LATCH
19	MAY 74011488
20	INSULATOR, POWER CORD
21	WP3608F138-70 Whirlpool Side Trim
22	4005F810-51 Whirlpool Access Cover
23	COVER, TERMINAL BLOCK
24	Screw (4)
25	WP74003976 Whirlpool Screw
26	WPW10245259 Whirlpool Terminal Block
27	WP7103P027-60 Whirlpool Nut
28	MAY 74011522
