JDS8850BDB 04 – DOOR (SER PRE 11)

JDS8850BDB 04 – DOOR (SER PRE 11)

Written by

in

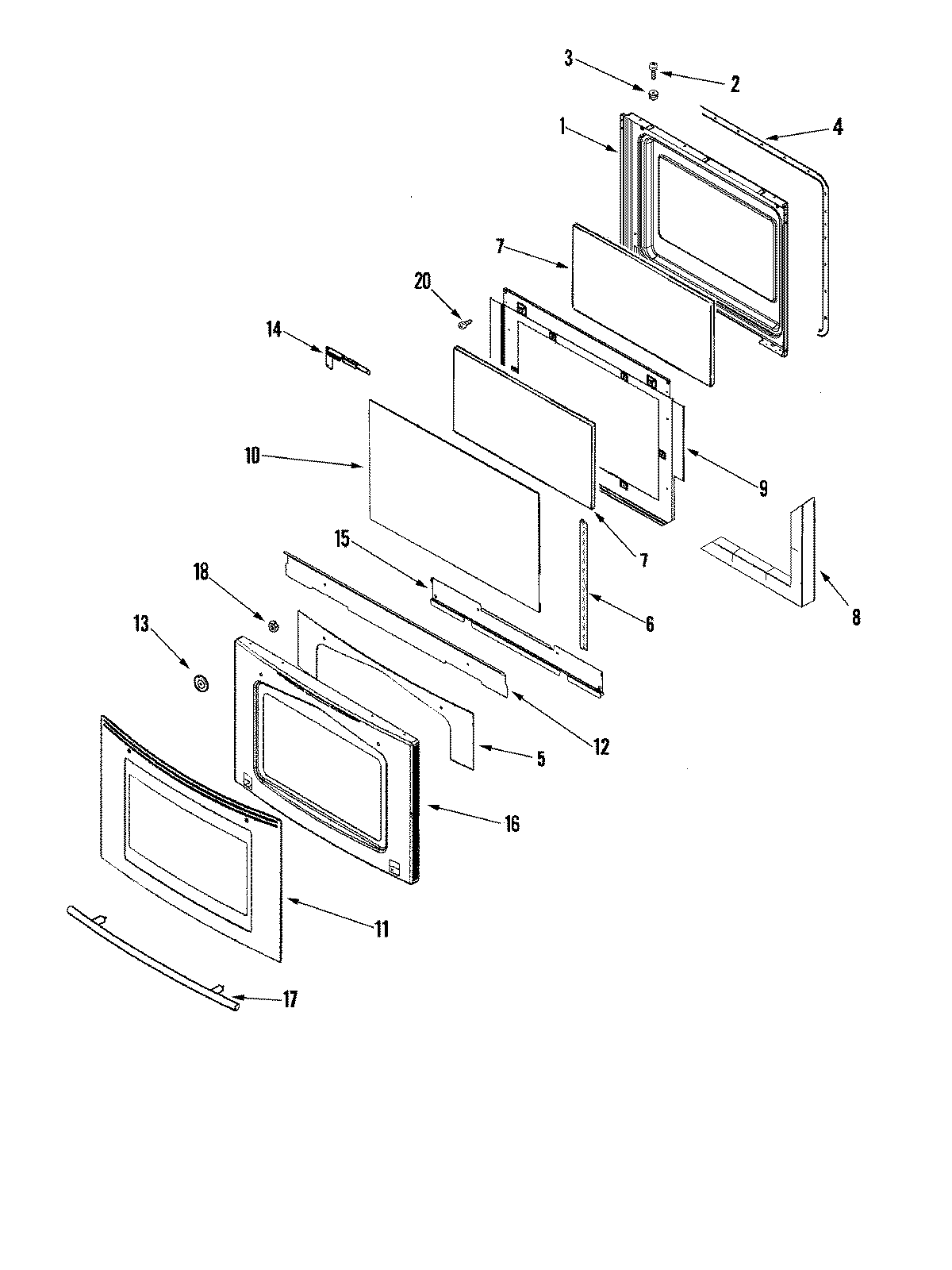

JDS8850BDB 04 – DOOR (SER PRE 11)

Products

PositionProduct
1LINING, DOOR
2WP98008545 Whirlpool Screw
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
5MAY 74011509
63801F886-51 Whirlpool Mounting Bracket
774003645 Whirlpool Range Oven Door Inner Glass
8INSULATION, OVEN DOOR
93601F373-51 Whirlpool Baffle
10GLASS, DOOR (INNER/COATED)
11MAY 74011511
12MAY 74011049
13MAY 74009194
14MAY 74011463
14MAY 74011797
15MAY 74011464
16MAY 74011507
17WP74008625 Whirlpool Door Handle
18WP3400029 Whirlpool Dishwasher Nut
