JDS8850BDB 05 – GAS CONTROLS

JDS8850BDB 05 – GAS CONTROLS

Written by

in

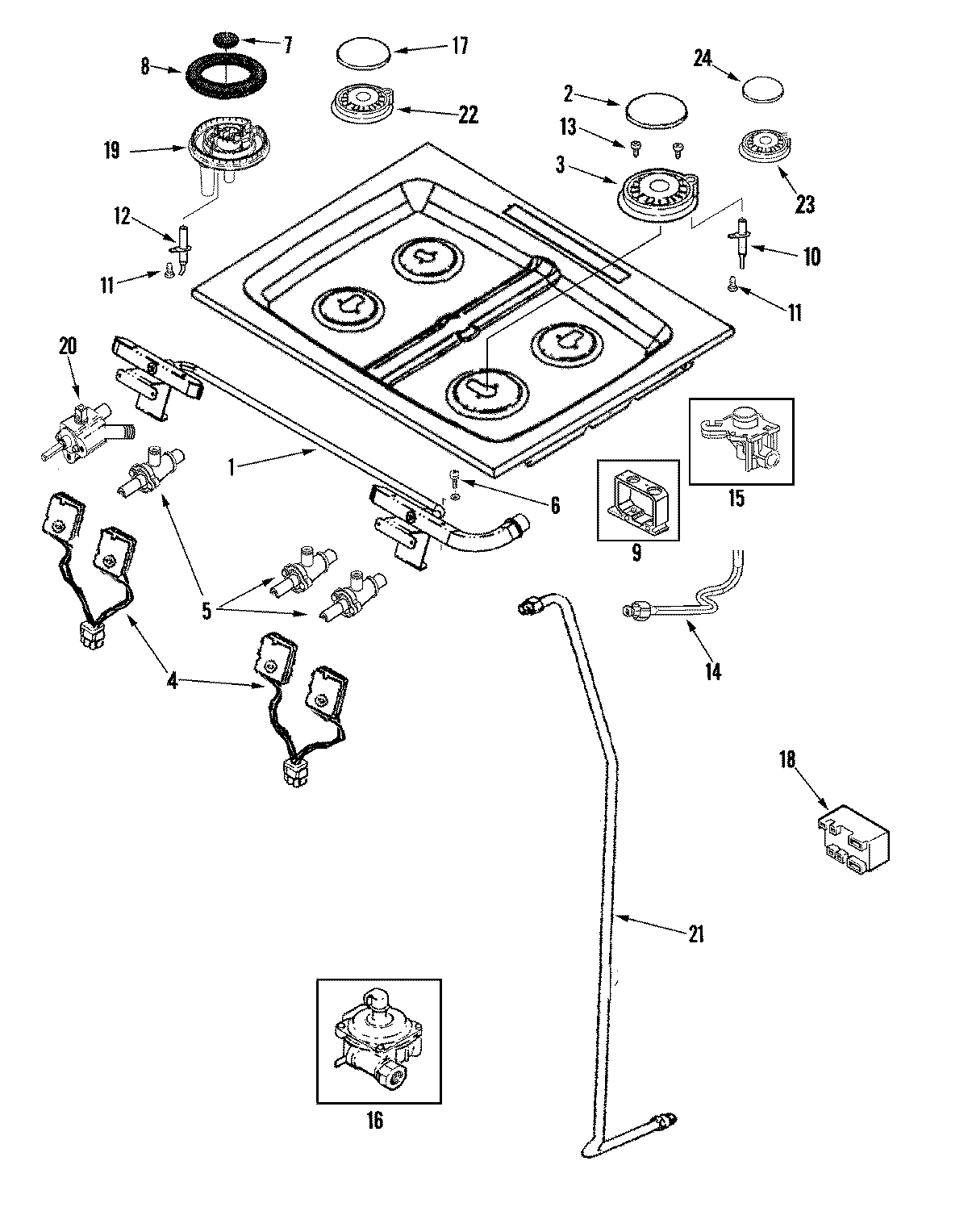

JDS8850BDB 05 – GAS CONTROLS

Products

PositionProduct
1MAY 74011659
2CAP, BURNER (EX-LRG/BLK)
374007736 Whirlpool Gas Range Stove Cooktop Burner Assembly (15K)
4WP74011648 Whirlpool Harsh Switch
4WP74011647 Whirlpool HAR Switch
5MAY 74009452
512002270 Whirlpool Valve Kit and Screw 16K
5MAY 74009451
6MAY 74009416
7MAY 74011650
8MAY 74011651
9MAY W10174524
10WP74009336 Whirlpool Oven Top Igniter
11WP8273062 Whirlpool Screw
12WP74011829 Whirlpool Burner Igniter Dual
13WP400021-1 Whirlpool Screw
14MAY 74011657
14MAY 74011656
14MAY 74011655
14MAY 74011653
14MAY 74011654
1574009553 Whirlpool Orifice Holder
15WP7527P004-60 Whirlpool Orifice Holder
15WP7527P002-60 Whirlpool Orifice Holder
16MAY 74011871
17Cap, Burner (12.5K RF, LR)
18WPW10475147 Whirlpool Spark Module
19MAY 74011652
20WP74011649 Whirlpool Burner Valve
21MAY 74011658
2274007735 Whirlpool Burner Assembly
2374007734 Whirlpool Burner Assembly
24WP8284669 Whirlpool Burner Cap
