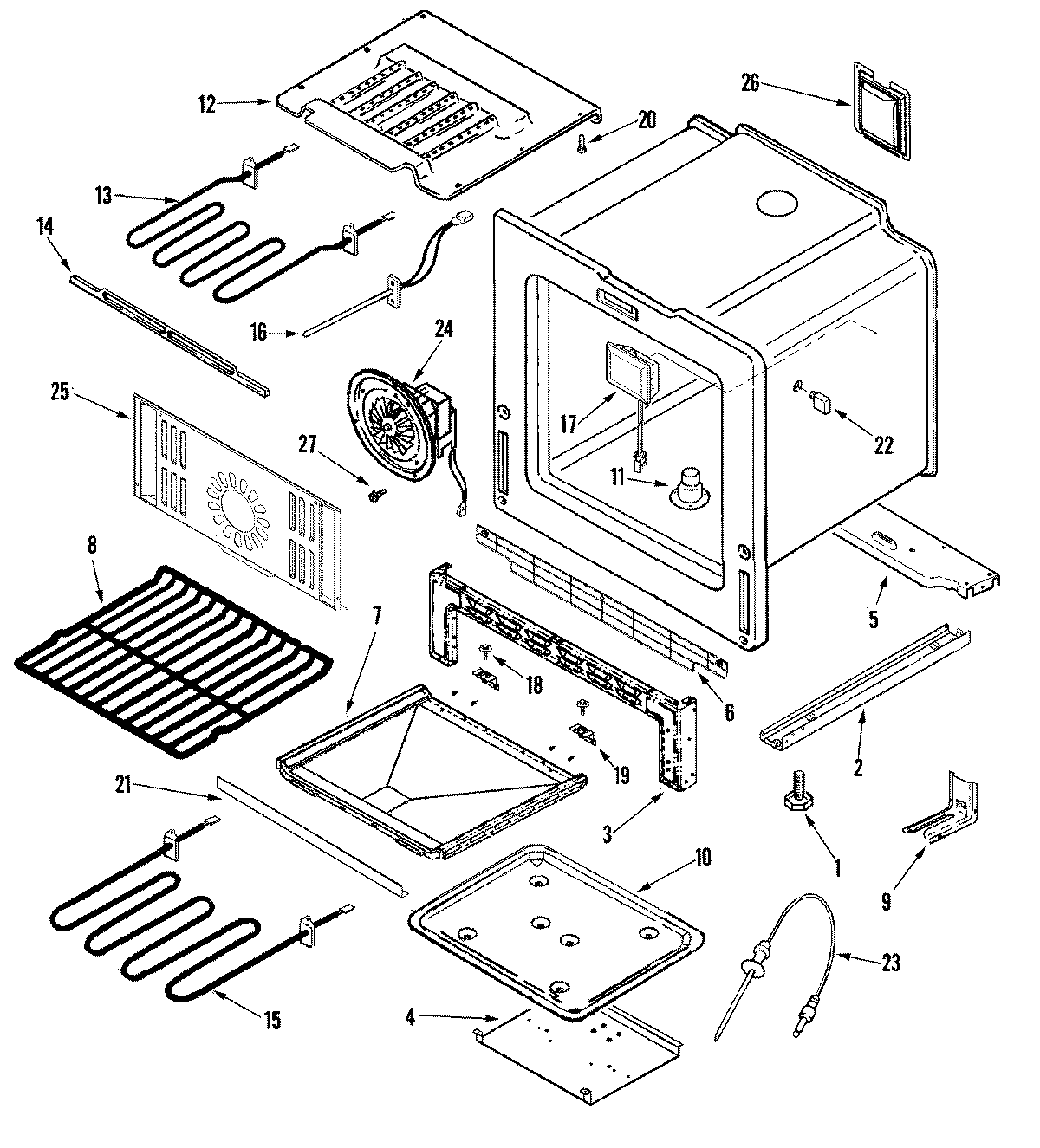

JDS8850BDB 06 – OVEN/BASE

Products

PositionProduct
1WP74010805 Whirlpool Screw
24020W035-80 Whirlpool Bottom PE
3PEDESTAL, FRONT
4MAY 74006591
5SUPPORT, VALVE REGULATOR
6MAY 74011482
7MAY 74010853
8WPW10282492 Whirlpool Oven Rack
9WP7101P485-60 Whirlpool Anchor Tip
9WP3801F656-51 Whirlpool Range Anti-Tip Bracket
10MAY 74010806
11MAY 74010808
11PLATE, VENT COVER
12MAY 74008408
13MAY 74011479
14MAY 74003563
15WP7406P411-60 Whirlpool Bake Element
1612001656 Whirlpool Range Oven Temperature Sensor
17MAY 74011220
19MAY 74010812
20MAY 74010505
21MAY 74010807
22WP7408P086-60 Whirlpool Receptacle
23WP7430P038-60 Whirlpool Meat Probe Sensor
24MAY 74011517
25WPW10186795 Whirlpool Convection Baffle
26MAY 74010814
27WP74003976 Whirlpool Screw
