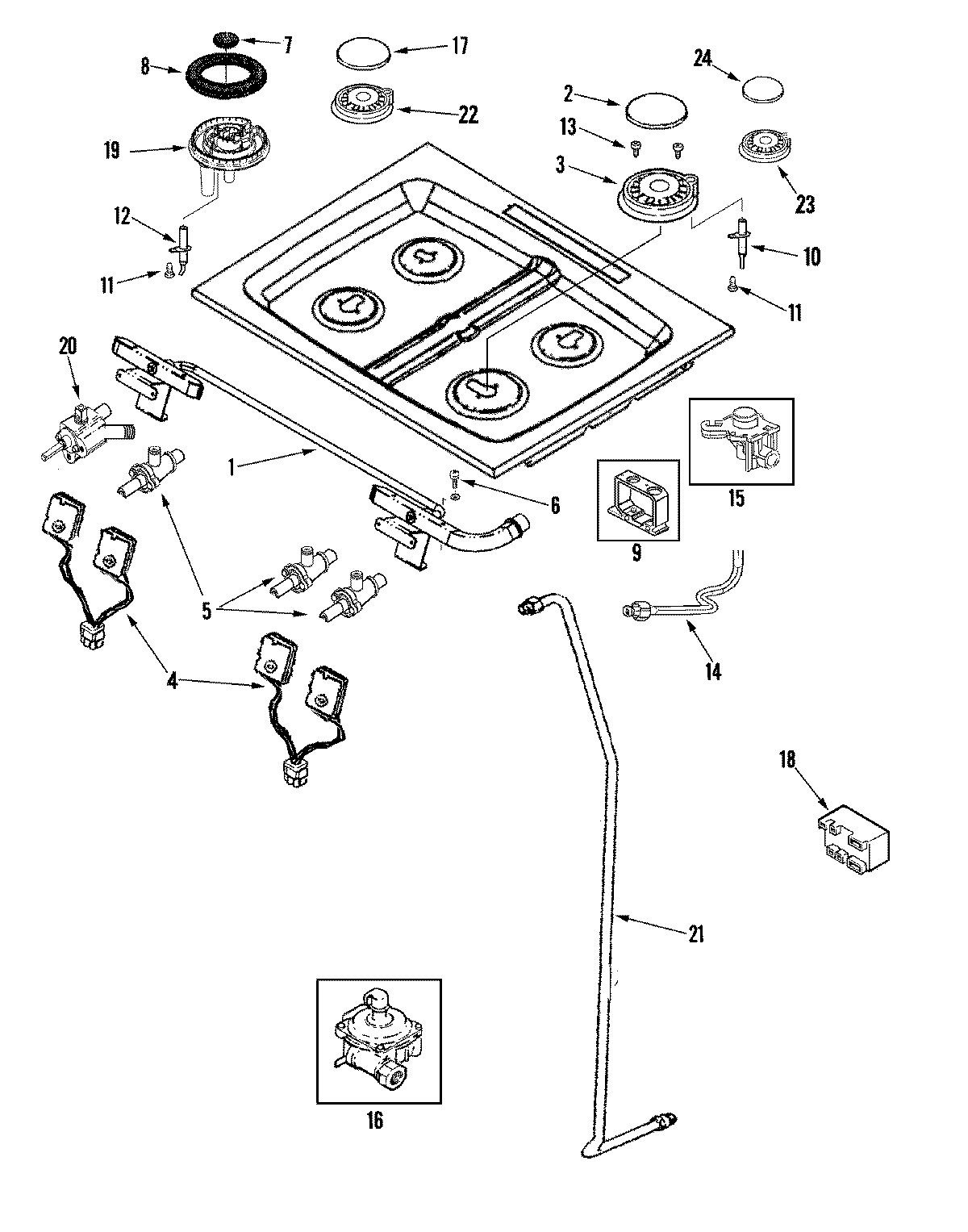

JDS8850BDW 05 – GAS CONTROLS

Products

Position	Product
1	MAY 74011659
2	CAP, BURNER (EX-LRG/BLK)
3	74007736 Whirlpool Gas Range Stove Cooktop Burner Assembly (15K)
4	WP74011648 Whirlpool Harsh Switch
4	WP74011647 Whirlpool HAR Switch
5	MAY 74009452
5	12002270 Whirlpool Valve Kit and Screw 16K
5	MAY 74009451
6	MAY 74009416
7	MAY 74011650
8	MAY 74011651
9	MAY W10174524
10	WP74009336 Whirlpool Oven Top Igniter
11	WP8273062 Whirlpool Screw
12	WP74011829 Whirlpool Burner Igniter Dual
13	WP400021-1 Whirlpool Screw
14	MAY 74011657
14	MAY 74011656
14	MAY 74011655
14	MAY 74011653
14	MAY 74011654
15	74009553 Whirlpool Orifice Holder
15	WP7527P004-60 Whirlpool Orifice Holder
15	WP7527P002-60 Whirlpool Orifice Holder
16	MAY 74011871
17	Cap, Burner (12.5K RF, LR)
18	WPW10475147 Whirlpool Spark Module
19	MAY 74011652
20	WP74011649 Whirlpool Burner Valve
21	MAY 74011658
22	74007735 Whirlpool Burner Assembly
23	74007734 Whirlpool Burner Assembly
24	WP8284669 Whirlpool Burner Cap
