JDS8850CDB00 02 – DRAWER AND RACK PARTS

JDS8850CDB00 02 – DRAWER AND RACK PARTS

Written by

in

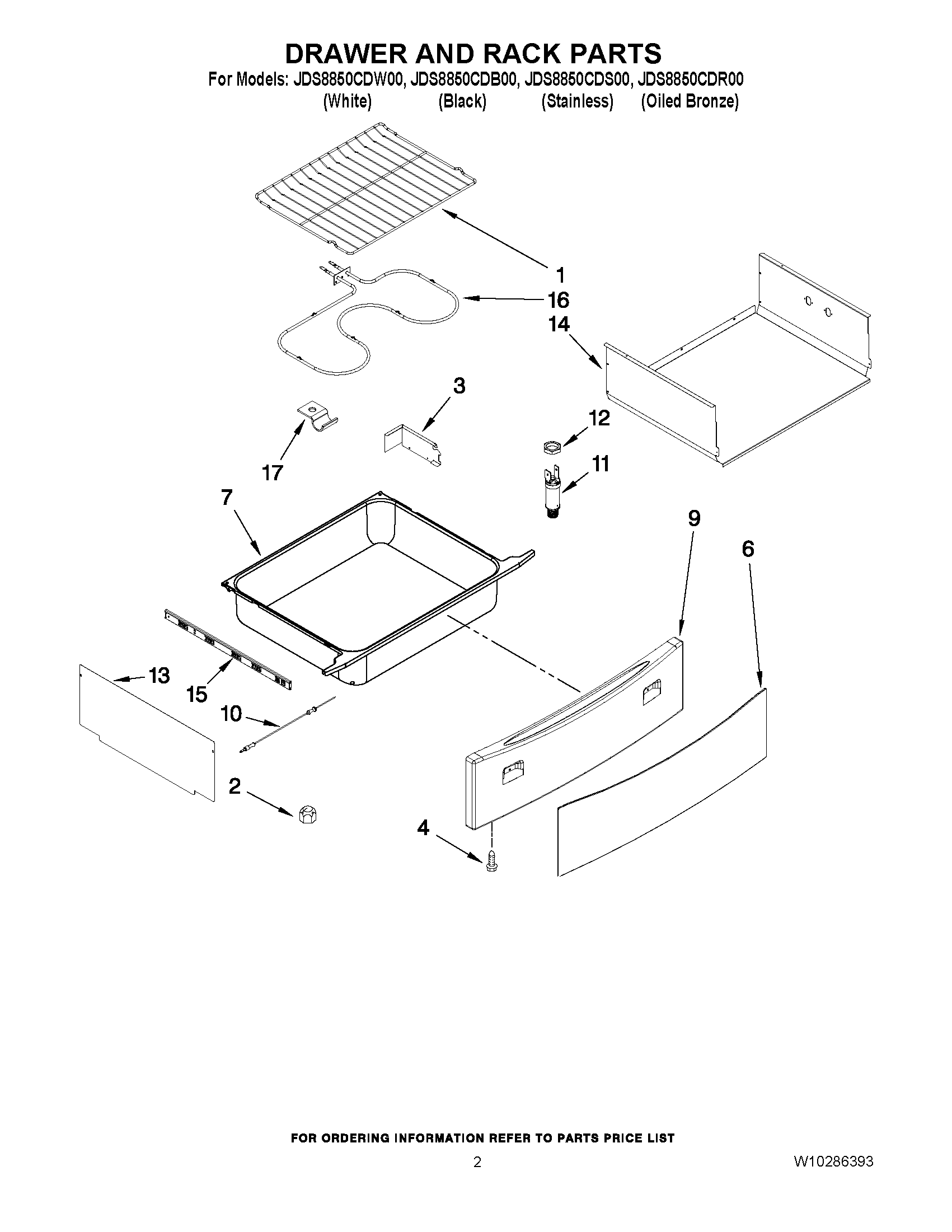

JDS8850CDB00 02 – DRAWER AND RACK PARTS

Products

Position	Product
1	RACK, OVEN (2)
2	WPW10131078 Whirlpool Nut Assembly
3	MAY 3604F434-51
4	Screw (Black) (2)
6	MAY W10234012
6	MAY 7922P058-60
6	GLASS, DRAWER (BLACK)
7	DRAWER, WARMING
9	PANEL, DRAWER (BLACK)
10	MAY 7430P038-60
11	MAY 7408P086-60
12	NUT
13	MAY 3604F435-51
14	BODY, WARM DRAWER
15	MAY W10293200
16	MAY 7406P294-60
17	MAY 7112P153-60
